Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 09:11 AM

  • G 0331_G 0330_9292017_022814.mp4

Date
09/29/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01767
Time
2:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0648
Sewer Name
01 JOINT OUTFALL G - UNIT 9 TRUNK
City
BELL GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
30 in.
Upstream MH
G 0331
Downstream MH
G 0330
Dir. of Survey
Downstream
Length Surveyed
290.9 ft.
Total Length
290.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole G 0331 to G 0330
MH: G 0331MH: G 0330downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - TILES 100% IN PLACE START2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0093.8 ft. MGO - General Observation - TILES 100% IN PLACE104.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE & PAPER150.8 ft. MGO - General Observation - MAG COAT 60% START277.5 ft. MGO - General Observation - TILES 100% IN PLACE290.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE % PAPER290.6 ft. MGO - General Observation - TILES 100% IN PLACE FINISH290.6 ft. MGO - General Observation - MAG COAT 60% FINISH290.9 ft. AMH - Downstream Manhole, Survey Ends - 2:50AM

Observation photos (6)

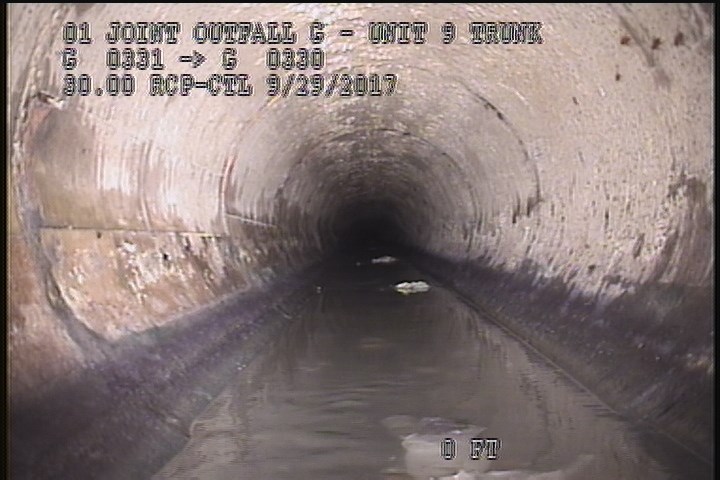

  • General Observation - TILES 100% IN PLACE START

    2 ft. - General Observation - TILES 100% IN PLACE START

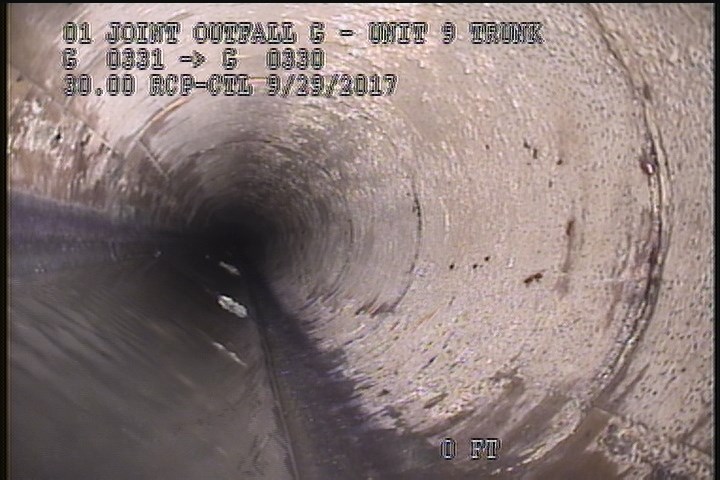

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

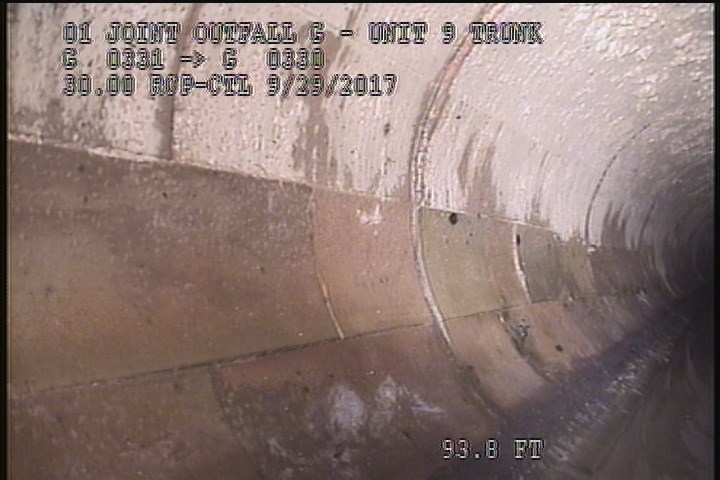

  • General Observation - TILES 100% IN PLACE

    93.8 ft. - General Observation - TILES 100% IN PLACE

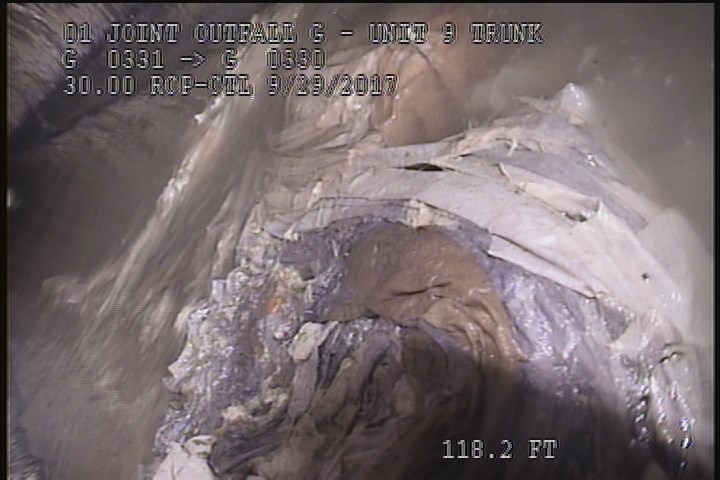

  • Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE & PAPER

    104.6 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE & PAPER

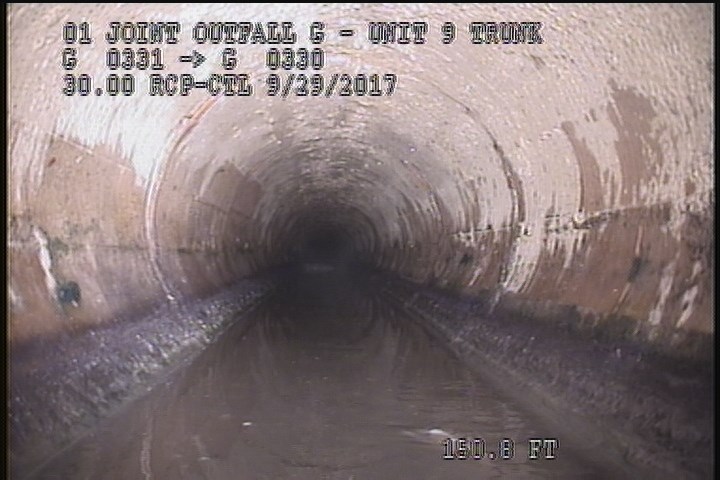

  • General Observation - MAG COAT 60% START

    150.8 ft. - General Observation - MAG COAT 60% START

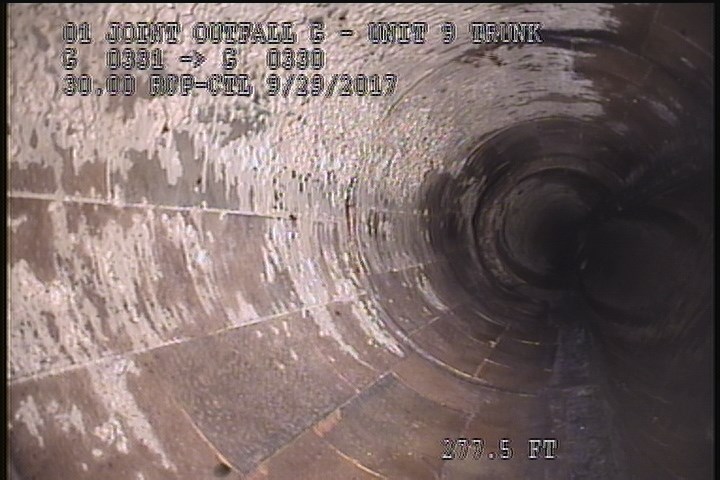

  • General Observation - TILES 100% IN PLACE

    277.5 ft. - General Observation - TILES 100% IN PLACE

All inspections of P01767Work order 0646225

Observations (13)

DistanceCodeObservation
290.6DSZSLUDGE % PAPER
2MGOTILES 100% IN PLACE START
290.9AMH2:50AM
0AMH2:30AM
0MWL—
104.6DSZSLUDGE & PAPER
2MGOMAG COAT 80% START 8:00 TO 4:00
277.5MGOTILES 100% IN PLACE
150.8MGOMAG COAT 60% START
0MWM—
290.6MGOTILES 100% IN PLACE FINISH
93.8MGOTILES 100% IN PLACE
290.6MGOMAG COAT 60% FINISH

Properties (4)

custom_field_three
TILE LINE - TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-29T02:11:26-07:00
