Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2017, 07:41 AM

  • G 0332_G 0331_9292017_011533.mp4

Date
09/29/2017
W/O
0646225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01768
Time
12:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0648
Sewer Name
01 JOINT OUTFALL G - UNIT 9 TRUNK
City
BELL GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Capital Improvement Program Assesment
Project
20170929MDM_JOINT_OUTFALL_G_UNIT_9_TRUNK
Material
RCP-CTL
Shape
Circular
Height
30 in.
Upstream MH
G 0331
Downstream MH
G 0332
Dir. of Survey
Upstream
Length Surveyed
251.8 ft.
Total Length
251.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole G 0331 to G 0332
MH: G 0331MH: G 0332upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:05AM0.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN0.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.9 ft. MGO - General Observation - TILES 100% IN PLACE FINISH0.9 ft. MGO - General Observation - 70% OLD MAG COAT FINISH128.9 ft. MGO - General Observation - 70% OLD MAG COAT START 8:00 TO 4:00128.9 ft. MGO - General Observation - TILES 100% IN PLACE154.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE171.9 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - FALLEN TILE249.8 ft. MGO - General Observation - ALL TILES IN PLACE100% START251.8 ft. MWM - Water Mark, 20 %of cross sectional area251.8 ft. AMH - Downstream Manhole, Survey Begins - 12:45AM251.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

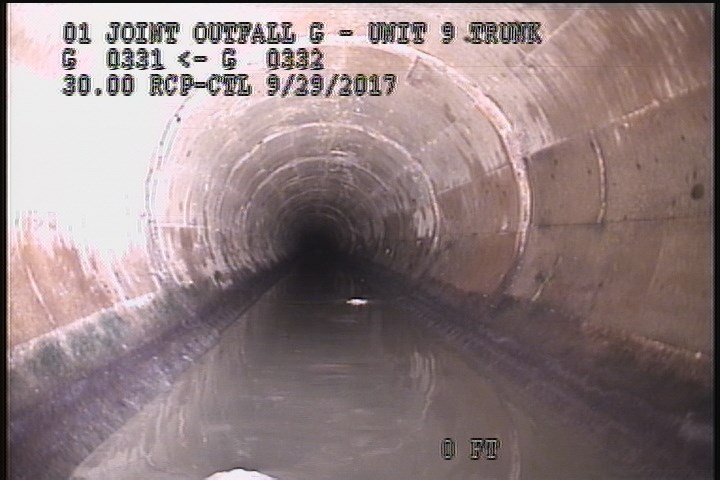

  • General Observation - ALL TILES IN PLACE100% START

    2 ft. - General Observation - ALL TILES IN PLACE100% START

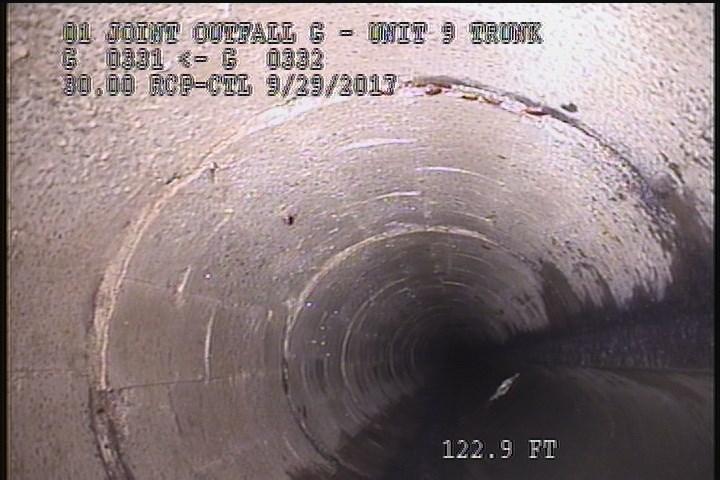

  • General Observation - 70% OLD MAG COAT START 8:00 TO 4:00

    122.9 ft. - General Observation - 70% OLD MAG COAT START 8:00 TO 4:00

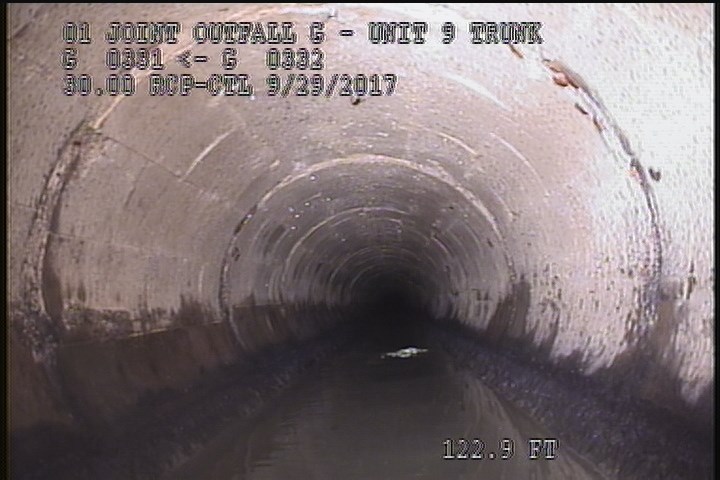

  • General Observation - TILES 100% IN PLACE

    122.9 ft. - General Observation - TILES 100% IN PLACE

All inspections of P01768Work order 0646225

Observations (13)

DistanceCodeObservation
250.9MGOTILES 100% IN PLACE FINISH
122.9MGO70% OLD MAG COAT START 8:00 TO 4:00
122.9MGOTILES 100% IN PLACE
97.5DSZSLUDGE
79.9DSZFALLEN TILE
0MWM—
2MGOALL TILES IN PLACE100% START
251.4MGOConn. @ Mh, 9 O' Clock. OPEN
251.4MGOConn. @ Mh, 3 O' Clock. Active
0AMH12:45AM
0MWL—
250.9MGO70% OLD MAG COAT FINISH
251.8AMH1:05AM

Properties (5)

custom_field_three
TILE LINE - TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-29T00:41:00-07:00
year_laid
19280228
