Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 08:57 AM

  • 02 1939_02 1938 _20161021_011021.mp4

Date
10/21/2016
W/O
592156
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00241
PipeID
P04281
Time
1:57 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3746
Sewer Name
02 CITY TERRACE TRUNK
City
LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Routine Assessment
Project
WO_592156_TV02040_SEP2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1939
Downstream MH
02 1938
Dir. of Survey
Downstream
Length Surveyed
386.5 ft.
Total Length
386.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N15
O&M Rating
157
Overall Index
2
Overall Quick
—
Overall Rating
157
Pipe schematic from manhole 02 1939 to 02 1938
MH: 02 1939MH: 02 1938downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 19390.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK3.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start61.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"107.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"120.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"187.5 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"239.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"279.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"327.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"357.8 ft. LL - Alignment Left, 10 %, Start379.8 ft. LL - Alignment Left, 10 %, Finish383.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish386.4 ft. VC - Vermin Cockroach386.5 ft. AMH - Downstream Manhole, Survey Ends - 02 1938

Observation photos (2)

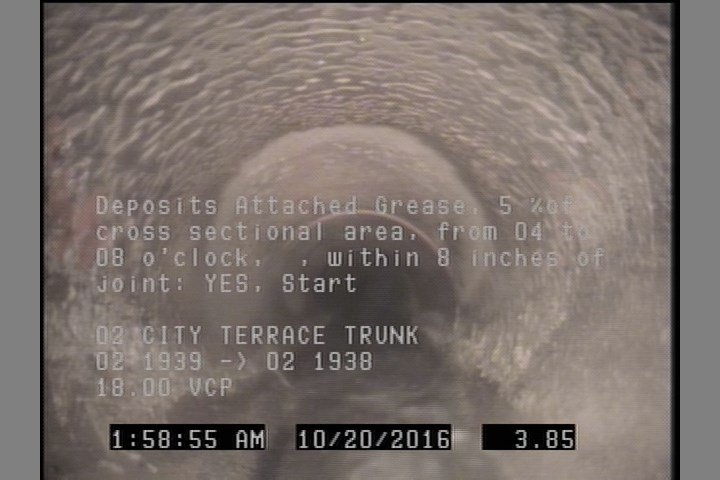

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

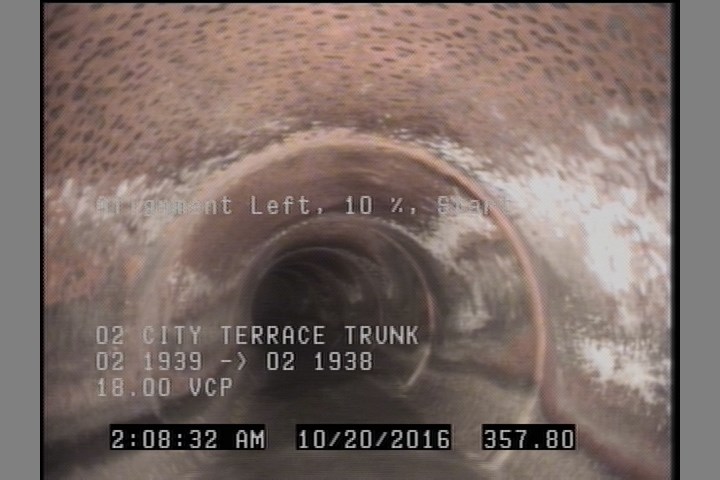

  • Alignment Left, 10 %, Start

    357.8 ft. - Alignment Left, 10 %, Start

All inspections of P04281Work order 592156

Observations (17)

DistanceCodeObservation
279.8TFA—
61.2TFA—
357.8LL—
120.2TFA—
327.6TFA—
0MWL—
379.8LL—
107.8TFA—
0MWM—
187.5TFA—
0AMH02 1939
3.9DAGS—
383.8DAGS—
386.4VC—
0.1MGOCONNECTION AT MH 3 O'CLOCK
239.5TFA—
386.5AMH02 1938

Properties (5)

additional_info
SC303735
custom_field_two
4
customer
LACSD
datetime
2016-10-21T01:57:00-07:00
sewer_category
Gravity
