Wastewater/Activity/PacpInspection/1.0Aug 24, 2017, 08:20 AM
02 2171_02 2170_24082017_012057.mp4
- Date
- 08/24/2017
- W/O
- 652201
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00261
- PipeID
- P04445
- Time
- 1:20 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4792
- Sewer Name
- 02 FOSTER ROAD TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_652201_TV02290_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 2171
- Downstream MH
- 02 2170
- Dir. of Survey
- Downstream
- Length Surveyed
- 19.4 ft.
- Total Length
- 19.4 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

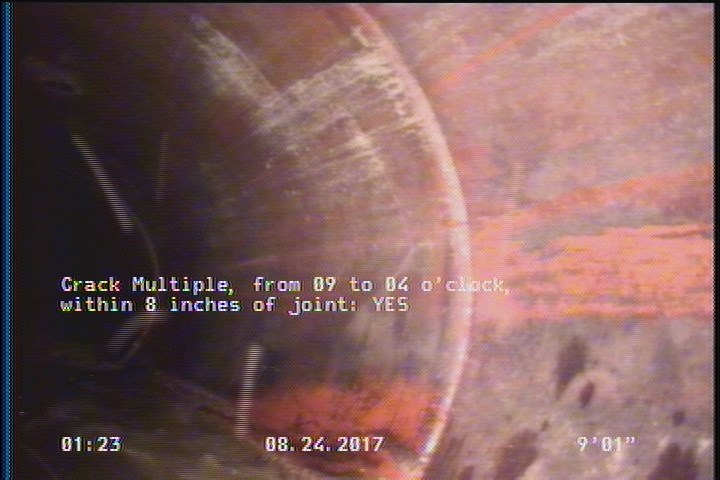

9.1 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

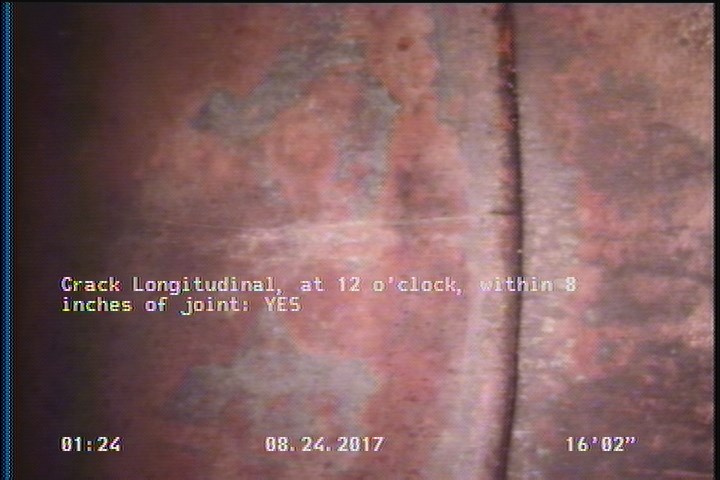

16.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

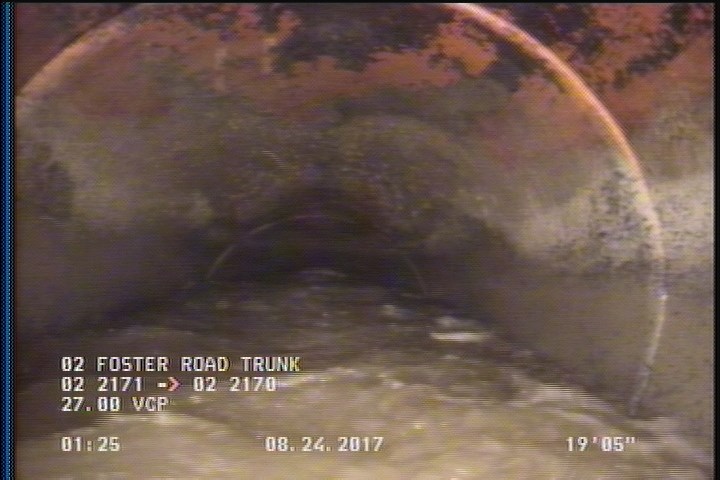

19.4 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM U/S MH
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 2171 |
| 0 | MWM | — |
| 16.1 | CL | — |
| 9.1 | CM | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MWL | — |
| 19.4 | MSA | VIEW OF THE D/S SIPHON FROM U/S MH |
Properties (6)
- additional_info
- SC345901
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-24T01:20:24-07:00
- sewer_category
- Siphon
- year_laid
- 31114
