Wastewater/Activity/PacpInspection/1.0Aug 24, 2017, 09:29 AM
02 2168_02 2167 _24082017_023015.mp4
- Date
- 08/24/2017
- W/O
- 652201
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00261
- PipeID
- P04442
- Time
- 2:29 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4792
- Sewer Name
- 02 FOSTER ROAD TRUNK
- City
- DOWNEY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_652201_TV02290_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 2168
- Downstream MH
- 02 2167
- Dir. of Survey
- Downstream
- Length Surveyed
- 437.1 ft.
- Total Length
- 437.1 ft.
- Structural Index
- 2
- Structural Quick
- 2P00
- Structural Rating
- 172
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 166
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 338
Observation photos (1)

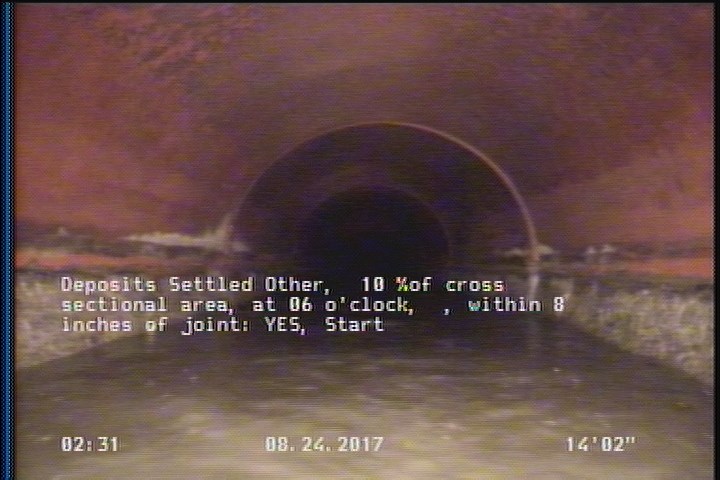

14.2 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 437.1 | AMH | 02 2167 |
| 14.2 | DSZ | — |
| 0 | AMH | 02 2168 |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 2 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 430.4 | DSZ | — |
| 434 | SSS | — |
Properties (6)
- additional_info
- SC345901
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-24T02:29:34-07:00
- sewer_category
- Gravity
- year_laid
- 31114
