Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 06:40 AM
16 0417_16 0416 _15082017_234400.mp4
- Date
- 08/15/2017
- W/O
- 651861
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00638
- PipeID
- P13466
- Time
- 11:40 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4782
- Sewer Name
- 16 ALHAMBRA ROAD TRUNK
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_651861_TV16007_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 16 0417
- Downstream MH
- 16 0416
- Dir. of Survey
- Downstream
- Length Surveyed
- 96.3 ft.
- Total Length
- 96.3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

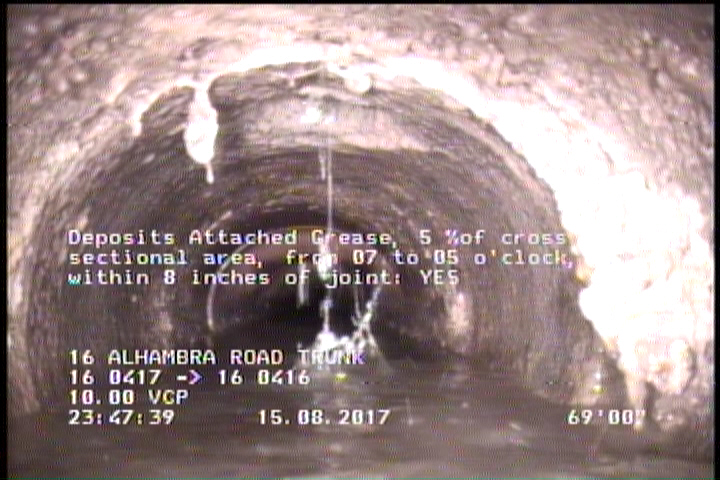

14.2 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

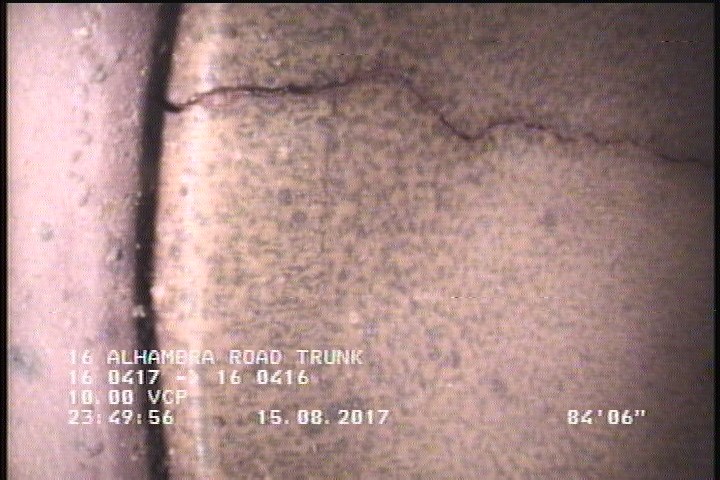

84.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

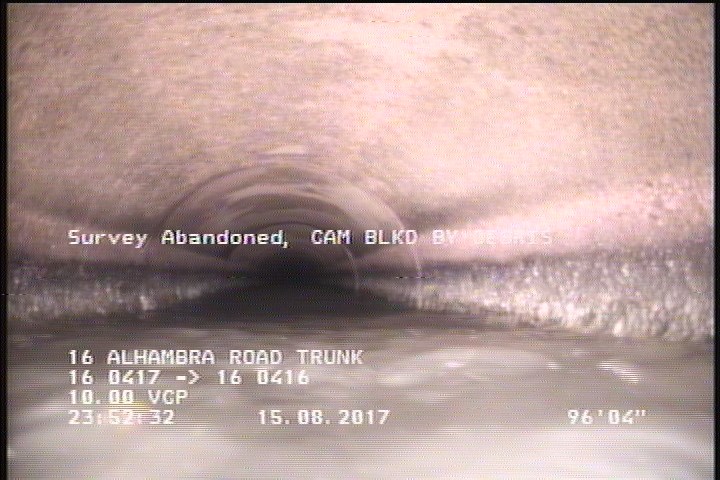

96.3 ft. - Survey Abandoned - CAM BLKD BY DEBRIS
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 16 0417 |
| 0 | MWL | — |
| 14.2 | DSZ | — |
| 96.3 | MSA | CAM BLKD BY DEBRIS |
| 84.5 | CL | — |
| 69.6 | TFA | — |
| 8.3 | TFA | — |
| 0 | MWM | — |
| 69 | DAGS | — |
| 96.3 | DSZ | — |
Properties (5)
- additional_info
- SC345542
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-08-15T23:40:34-07:00
- sewer_category
- Gravity
