Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 15, 2017, 08:05 AM

  • 16 0665_16 0424 _15082017_010641.mp4

Date
08/15/2017
W/O
651861
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00638
PipeID
P13474
Time
1:05 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4781
Sewer Name
16 ALHAMBRA ROAD TRUNK
City
SOUTH PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
19
Purpose
Routine Assessment
Project
WO_651861_TV16007_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
16 0665
Downstream MH
16 0424
Dir. of Survey
Downstream
Length Surveyed
197 ft.
Total Length
197 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 16 0665 to 16 0424
MH: 16 0665MH: 16 0424downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 066521.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"46.8 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES49.2 ft. CM - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES52.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start56.3 ft. RFL - Roots Fine Lateral, at 02 o'clock56.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"98.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"137.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"158.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish197 ft. AMH - Downstream Manhole, Survey Ends - 16 0424197 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK

Observation photos (3)

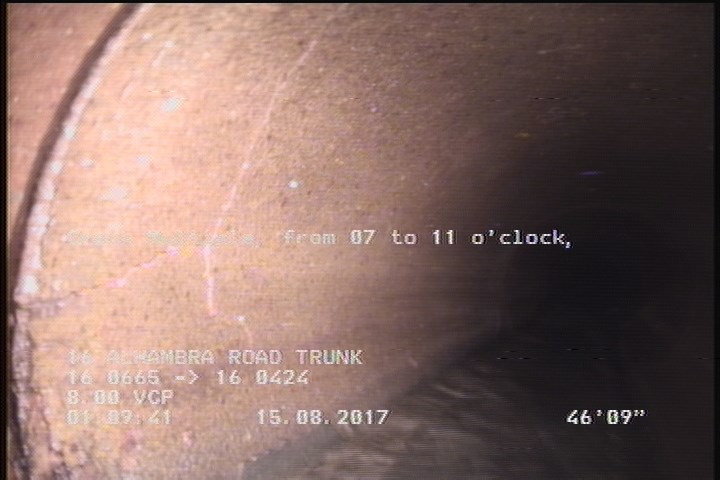

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    46.8 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

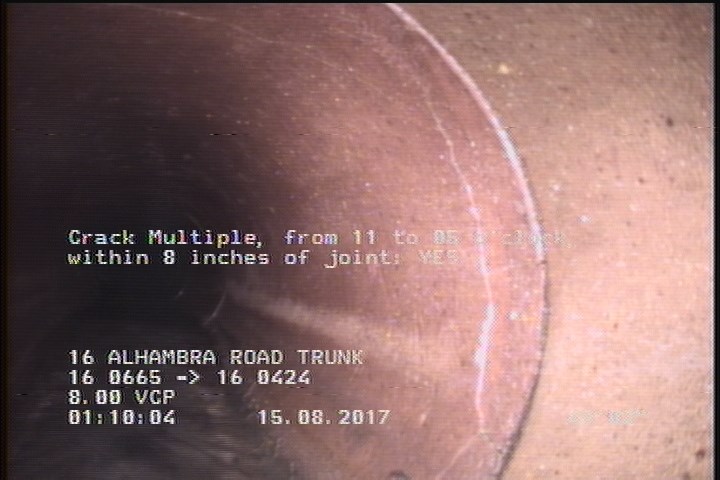

  • Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

    49.2 ft. - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

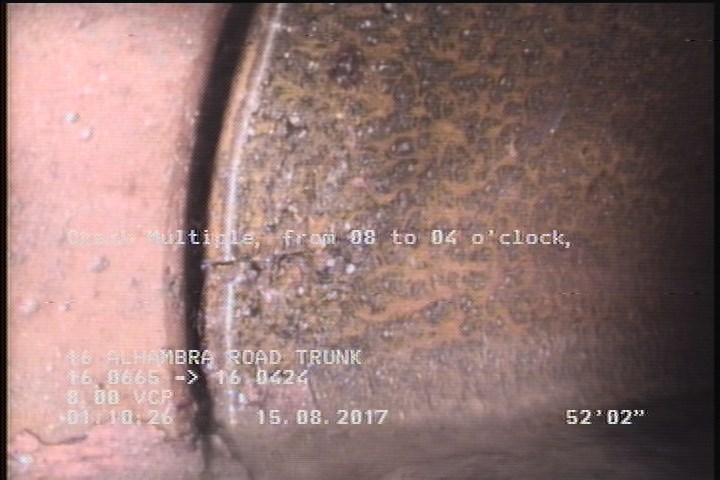

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    52.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13474Work order 651861

Observations (17)

DistanceCodeObservation
137.6TFC—
56.3RFL—
52.2CM—
21.7TFC—
197AMH16 0424
0MGOCONNECTION AT MH 3 OCLOCK
46.8CM—
0MWM—
56.3TF—
197MGOCONNECTION AT MH 9 OCLOCK
194.7CM—
98.3TF—
49.2CM—
43.1TF—
0MWL—
158.9TF—
0AMH16 0665

Properties (5)

additional_info
SC345541
custom_field_two
3
customer
LACSD
datetime
2017-08-15T01:05:36-07:00
sewer_category
Gravity
