Wastewater/Activity/PacpInspection/1.0Aug 15, 2017, 09:40 AM
16 0420_16 0419 _15082017_024805.mp4
- Date
- 08/15/2017
- W/O
- 651861
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00638
- PipeID
- P13469
- Time
- 2:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4781
- Sewer Name
- 16 ALHAMBRA ROAD TRUNK
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_651861_TV16007_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 16 0420
- Downstream MH
- 16 0419
- Dir. of Survey
- Downstream
- Length Surveyed
- 156 ft.
- Total Length
- 156 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

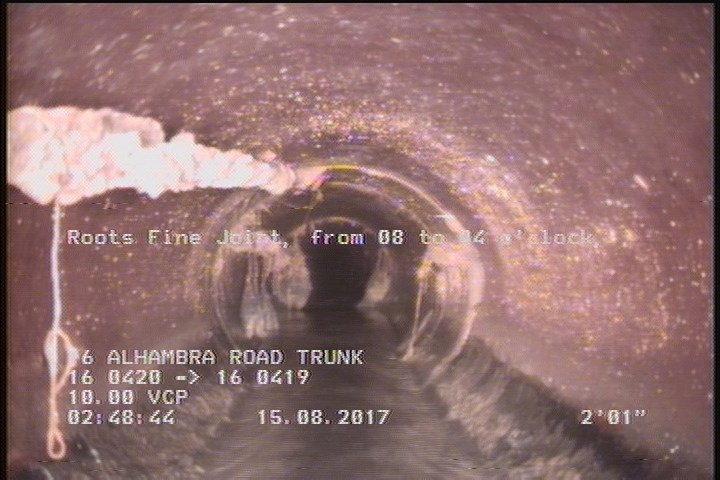

2.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

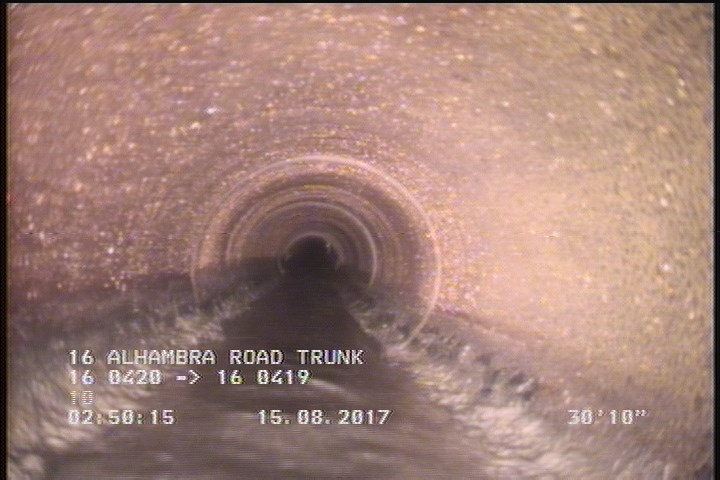

30.8 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 16 0420 |
| 2 | HSV | BROKEN PIPE WITH TAP ROOTS COMING OUT |
| 0 | MWM | — |
| 0 | MWL | — |
| 155.9 | MGO | CONNECTION AT MH 9 OCLOCK |
| 152.6 | DSZ | — |
| 15.4 | RFJ | — |
| 45.2 | TF | — |
| 2.1 | RFJ | — |
| 30.8 | DSZ | — |
| 156 | AMH | 16 0419 |
Properties (5)
- additional_info
- SC345541
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2017-08-15T02:40:22-07:00
- sewer_category
- Gravity
