Wastewater/Activity/PacpInspection/1.0Aug 22, 2017, 07:01 AM
22 0968_22 0967_22082017_001444.mp4
- Date
- 08/22/2017
- W/O
- 651622
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00790
- PipeID
- P17338
- Time
- 12:01 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4694
- Sewer Name
- 22 BASE LINE TRUNK
- City
- GLENDORA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- V
- Project
- WO_651622_TV22002_AUG2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0968
- Downstream MH
- 22 0967
- Dir. of Survey
- Downstream
- Length Surveyed
- 266.9 ft.
- Total Length
- 266.9 ft.
- Structural Index
- 2
- Structural Quick
- 2212
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

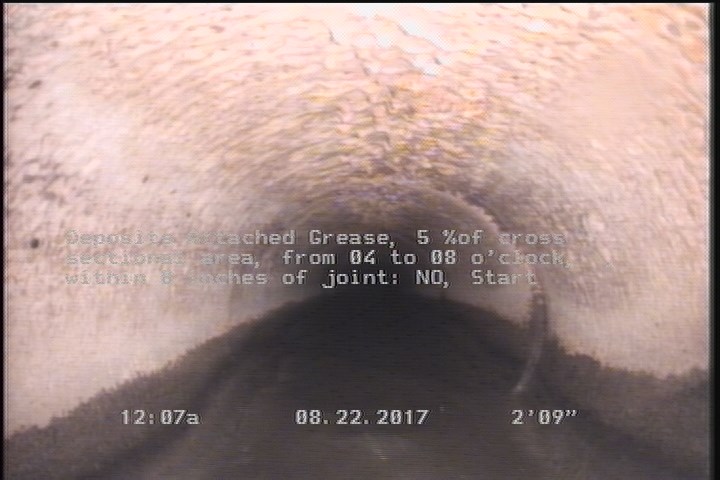

2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

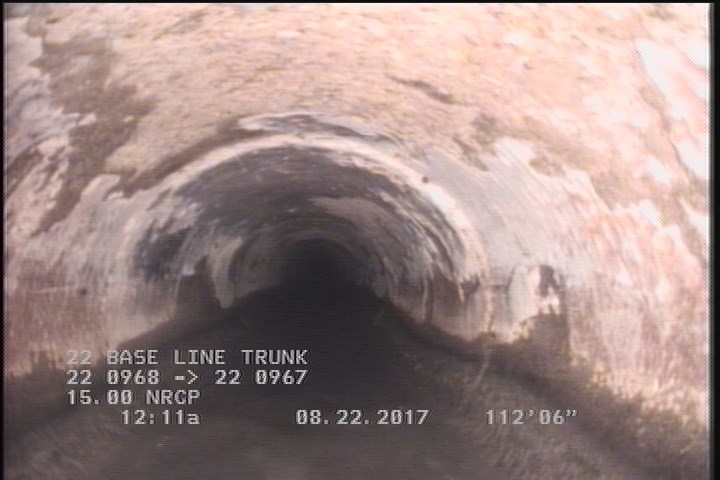

112.5 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

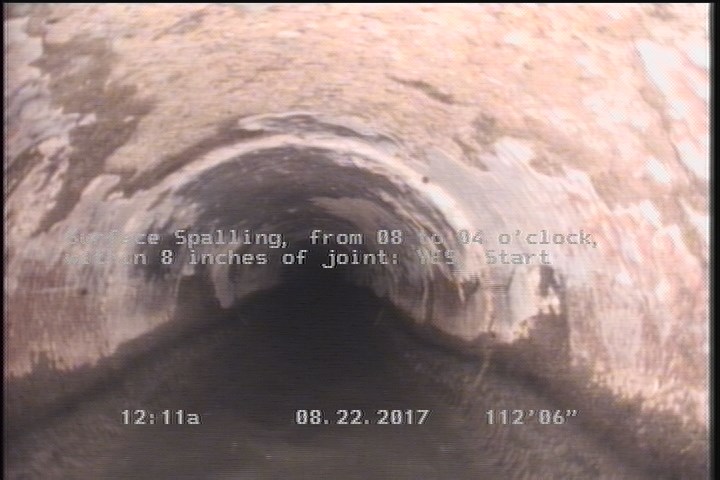

112.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 228 | TF | UNKNOWN, CONTRACTOR DID NOT STOP |
| 266.9 | DAGS | — |
| 266.9 | SSS | — |
| 266.9 | AMH | 22 0967, MAG COAT THROUGHOUT THE REACH |
| 266.9 | MGO | CONNECTION AT 9 OC |
| 266.9 | SRI | — |
| 0 | MWM | — |
| 112.5 | SRI | — |
| 2.8 | DAGS | — |
| 0 | AMH | 22 0968 |
| 2.8 | MGO | MAG COATING |
| 112.5 | SSS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345633
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-22T00:01:26-07:00
- sewer_category
- Gravity
