Wastewater/Activity/PacpInspection/1.0Aug 22, 2017, 07:15 AM
22 0967_22 0966_22082017_003305.mp4
- Date
- 08/22/2017
- W/O
- 651622
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00790
- PipeID
- P17337
- Time
- 12:15 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4694
- Sewer Name
- 22 BASE LINE TRUNK
- City
- GLENDORA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_651622_TV22002_AUG2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0967
- Downstream MH
- 22 0966
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.1 ft.
- Total Length
- 375.1 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

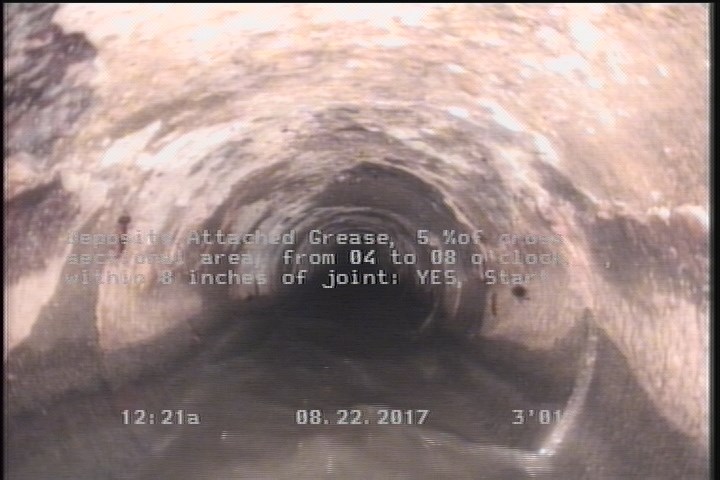

3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

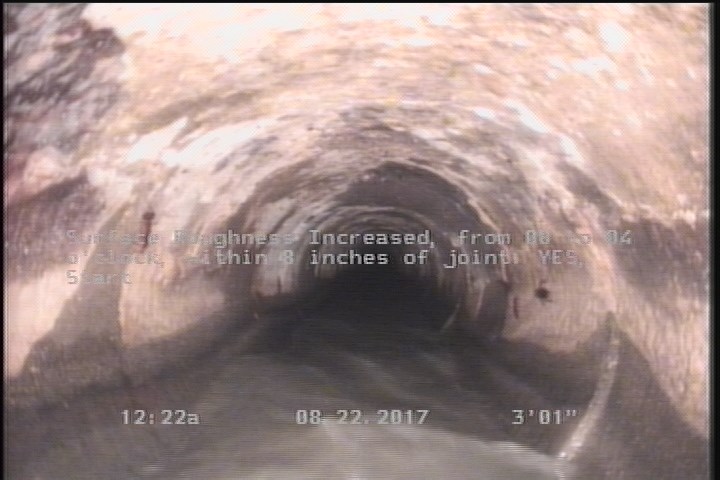

3.1 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

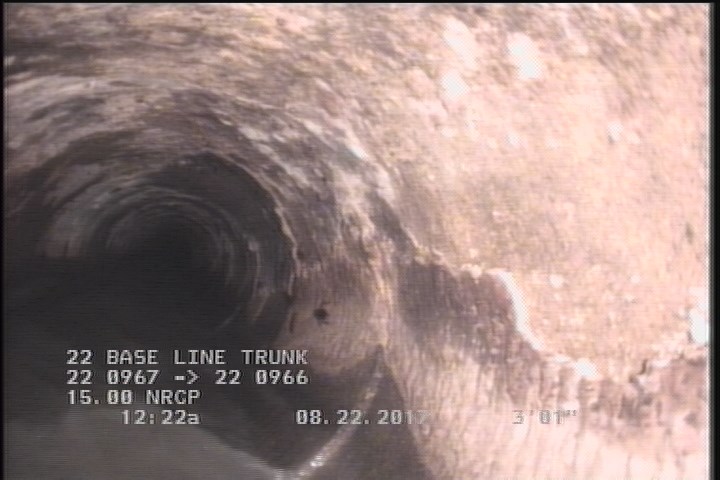

3.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3.1 | MGO | MAG COATING |
| 375.1 | AMH | 22 0966, MAG COAT THROUGHOUT THE REACH |
| 0 | MWM | — |
| 3.1 | DAGS | — |
| 3.1 | SRI | — |
| 375.1 | DAGS | — |
| 375.1 | SRI | — |
| 212.1 | TF | — |
| 3.1 | SSS | MAG COATING |
| 0 | AMH | 22 0967 |
| 316.6 | TFC | — |
| 375.1 | SSS | — |
| 151.3 | TFC | — |
Properties (5)
- additional_info
- SC345633
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-22T00:15:56-07:00
- sewer_category
- Gravity
