Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2017, 07:23 AM

  • 22 0960_22 0959_23082017_010034.mp4

Date
08/23/2017
W/O
651622
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00790
PipeID
P17330
Time
12:23 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4695
Sewer Name
22 BASE LINE TRUNK
City
GLENDORA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
12
Purpose
Routine Assessment
Project
WO_651622_TV22002_AUG2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0959
Downstream MH
22 0960
Dir. of Survey
Upstream
Length Surveyed
438.7 ft.
Total Length
438.7 ft.
Structural Index
2
Structural Quick
2111
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 22 0959 to 22 0960
MH: 22 0959MH: 22 0960upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 09600 ft. MGO - General Observation - CONNECTION AT 3 OC0 ft. SRI - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish26.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"66.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"119.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"167.4 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"219.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"243.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"267.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"317.3 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"365.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"373.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"418.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"432.7 ft. SRI - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start432.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING438.7 ft. AMH - Downstream Manhole, Survey Begins - 22 0959438.7 ft. MWM - Water Mark, 40 %of cross sectional area438.7 ft. MWL - Water Level, 40 %of cross sectional area

Observation photos (2)

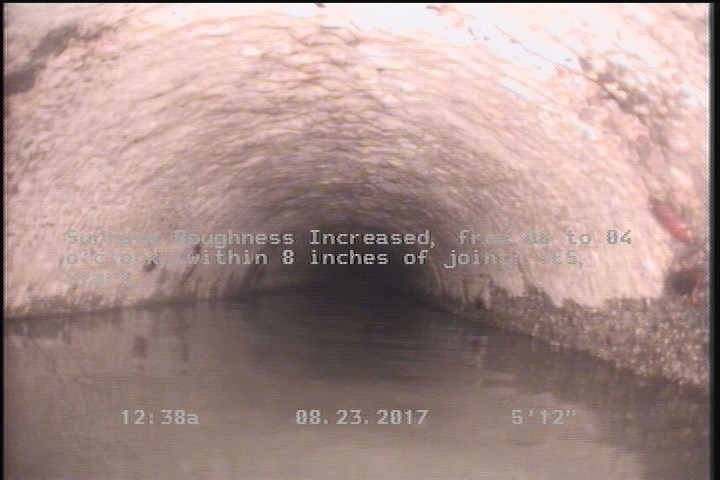

  • Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

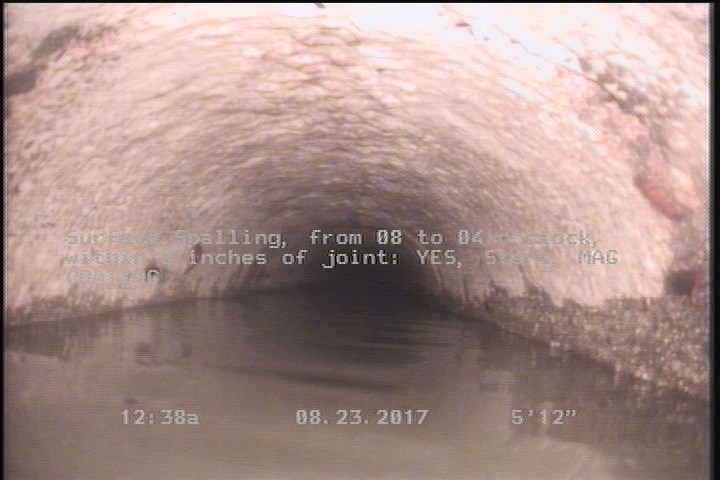

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING

    6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING

All inspections of P17330Work order 651622

Observations (20)

DistanceCodeObservation
65TFC—
0AMH22 0959
319TF—
0MWM—
20.6TFC—
195.3TFC—
6SRI—
6SSSMAG COATING
438.7AMH22 0960
372.2TFC—
170.8TFC—
412.6TFC—
0MWL—
219.6TFC—
73.1TFC—
438.7MGOCONNECTION AT 3 OC
438.7SRI—
438.7SSS—
121.4TFC—
271.3TFC—

Properties (5)

additional_info
SC345634
custom_field_two
3
customer
LACSD
datetime
2017-08-23T00:23:57-07:00
sewer_category
Gravity
