Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 09:14 AM

  • 02 0876_02 0875_19072017_021422.mp4

Date
07/19/2017
W/O
646417
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00249
PipeID
P03443
Time
2:14 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4654
Sewer Name
02 DOWNEY TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
WO_646417_TV02050_JUL2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0876
Downstream MH
02 0875
Dir. of Survey
Downstream
Length Surveyed
320 ft.
Total Length
320 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
189
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
189
Pipe schematic from manhole 02 0876 to 02 0875
MH: 02 0876MH: 02 0875downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 08764.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start16.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"61.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"89.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"105.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"151.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"170.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"293.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"320 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish320 ft. AMH - Downstream Manhole, Survey Ends - 02 0875

Observation photos (2)

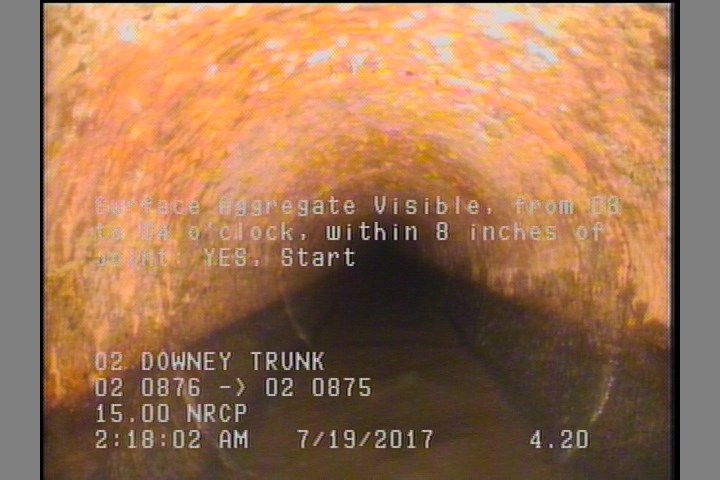

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

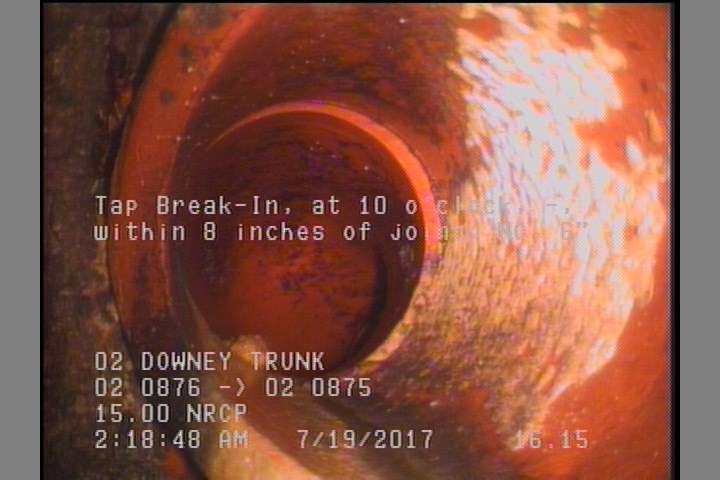

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    16.2 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P03443Work order 646417

Observations (14)

DistanceCodeObservation
320SAV—
320AMH02 0875
0MWM—
16.2TB—
170.9TFA—
105.4TF—
89.9TFC—
0MWL—
293.3TFC—
192.6TFC—
0AMH02 0876
4.1SAV—
151.3TF—
61.4TF—

Properties (5)

additional_info
SC345514
custom_field_two
3
customer
LACSD
datetime
2017-07-19T02:14:14-07:00
sewer_category
Gravity
