Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2017, 09:33 AM

  • 02 0875_02 0874 _19072017_023314.mp4

Date
07/19/2017
W/O
646417
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00249
PipeID
P03442
Time
2:33 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4654
Sewer Name
02 DOWNEY TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Routine Assessment
Project
WO_646417_TV02050_JUL2017
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0875
Downstream MH
02 0874
Dir. of Survey
Downstream
Length Surveyed
317.6 ft.
Total Length
317.6 ft.
Structural Index
3
Structural Quick
5441
Structural Rating
215
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
215
Pipe schematic from manhole 02 0875 to 02 0874
MH: 02 0875MH: 02 0874downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 08750 ft. MWL - Water Level, 5 %of cross sectional area2.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start72.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"173.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"203.4 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"246.9 ft. SSS - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: YES254.4 ft. HSV - Hole Soil Visible, at 01 o'clock, within 8 inches of joint: NO275.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"280 ft. SAM - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE297 ft. SMW - Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE303.4 ft. SMW - Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE309.2 ft. SMW - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE317.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish317.6 ft. AMH - Downstream Manhole, Survey Ends - 02 0874

Observation photos (9)

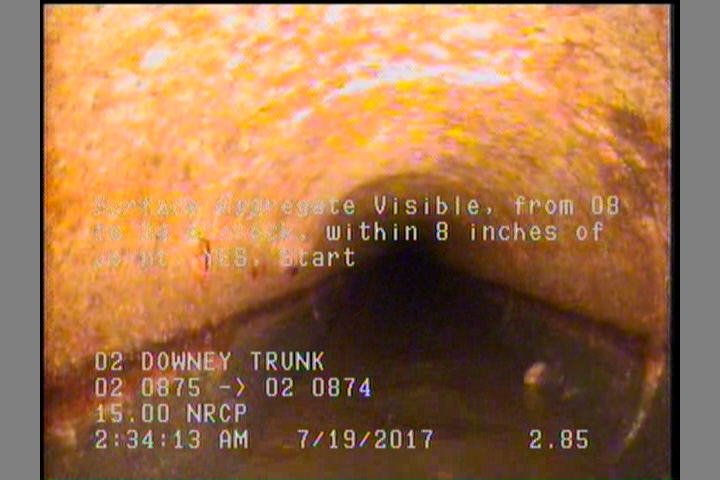

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    203.4 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

  • Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: YES

    246.9 ft. - Surface Spalling, from 01 to 02 o'clock, within 8 inches of joint: YES

  • Hole Soil Visible, at 01 o'clock, within 8 inches of joint: NO

    254.4 ft. - Hole Soil Visible, at 01 o'clock, within 8 inches of joint: NO

  • Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

    275.4 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"

  • Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    280 ft. - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

  • Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    297 ft. - Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

  • Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    303.4 ft. - Surface Missing Wall, from 12 to 03 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

  • Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

    309.2 ft. - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: YES - SOIL VISIBLE

All inspections of P03442Work order 646417

Observations (16)

DistanceCodeObservation
309.2SMWSOIL VISIBLE
317.6SAV—
2.1SAV—
246.9SSS—
0MWM—
0AMH02 0875
72.9TFC—
0MWL—
275.4TFC—
203.4TB—
280SAMSOIL VISIBLE
173.5TFC—
254.4HSV—
317.6AMH02 0874
297SMWSOIL VISIBLE
303.4SMWSOIL VISIBLE

Properties (5)

additional_info
SC345514
custom_field_two
2
customer
LACSD
datetime
2017-07-19T02:33:10-07:00
sewer_category
Gravity
