Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 08:08 AM
08 0225_08 0224 _08162017_012136.mp4
- Date
- 08/16/2017
- W/O
- 646329
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00005
- PipeID
- P00099
- Time
- 1:08 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4689
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_646329_TV08112_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0225
- Downstream MH
- 08 0224
- Dir. of Survey
- Downstream
- Length Surveyed
- 117.2 ft.
- Total Length
- 117.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

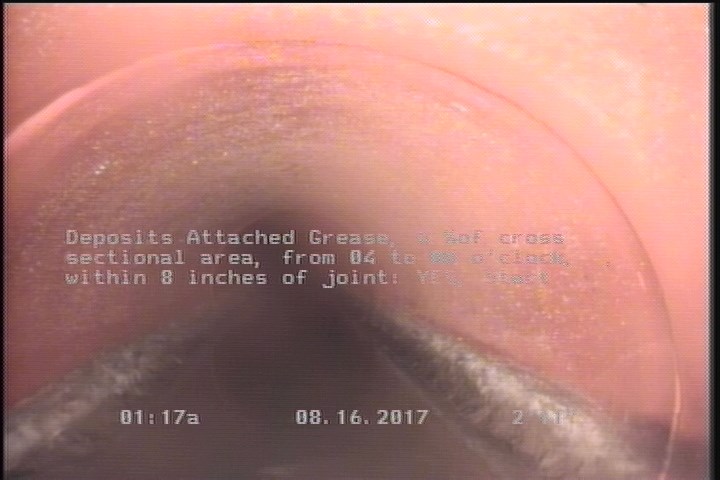

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

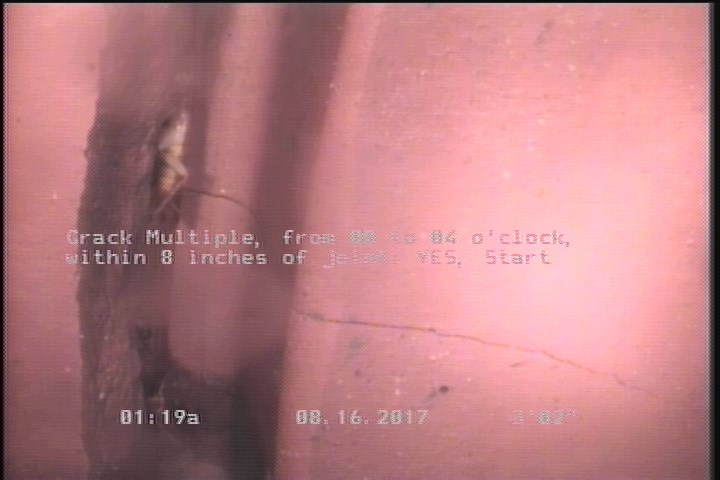

3.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0225 |
| 3.2 | CM | — |
| 111.3 | TFC | — |
| 0 | MGO | CONNECTION AT 9 AND 3 OC |
| 2.9 | DAGS | — |
| 0 | MWL | — |
| 116 | MGO | CONNECTION AT 3 OC |
| 116 | CM | — |
| 116 | DAGS | — |
| 0 | MWM | — |
| 117.2 | AMH | 08 0224 |
| 24.1 | TFC | — |
Properties (5)
- additional_info
- SC345628
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-16T01:08:53-07:00
- sewer_category
- Gravity
