Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 05:22 AM
08 0228_08 0227 _08152017_230744.mp4
- Date
- 08/15/2017
- W/O
- 646329
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00005
- PipeID
- P00102
- Time
- 10:22 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4689
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_646329_TV08112_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 08 0228
- Downstream MH
- 08 0227
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.8 ft.
- Total Length
- 87.8 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

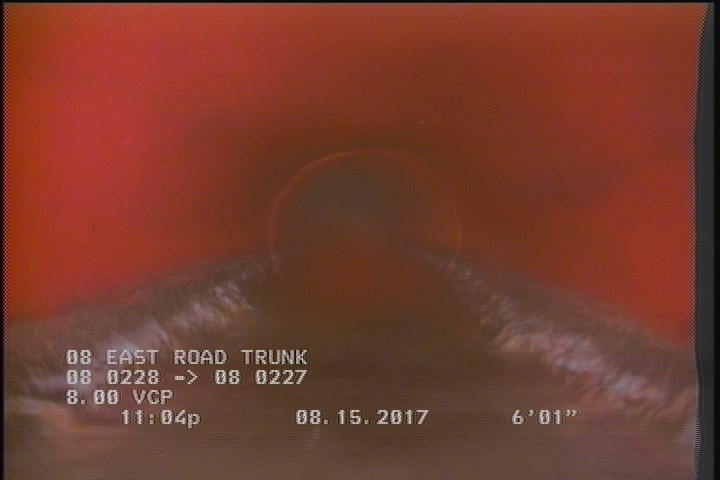

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

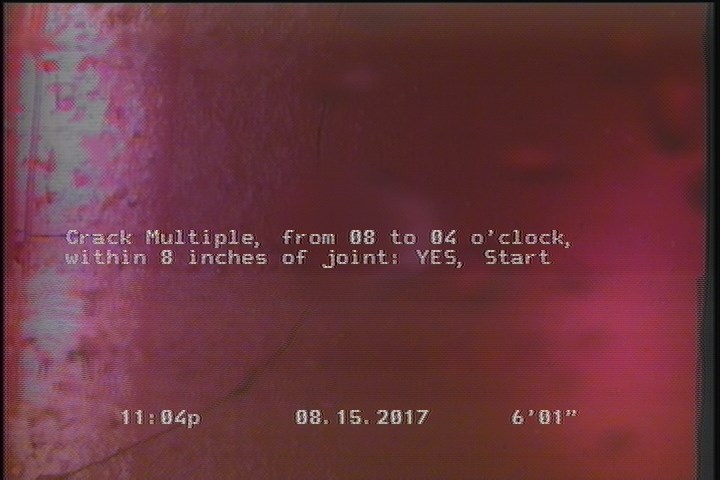

6.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

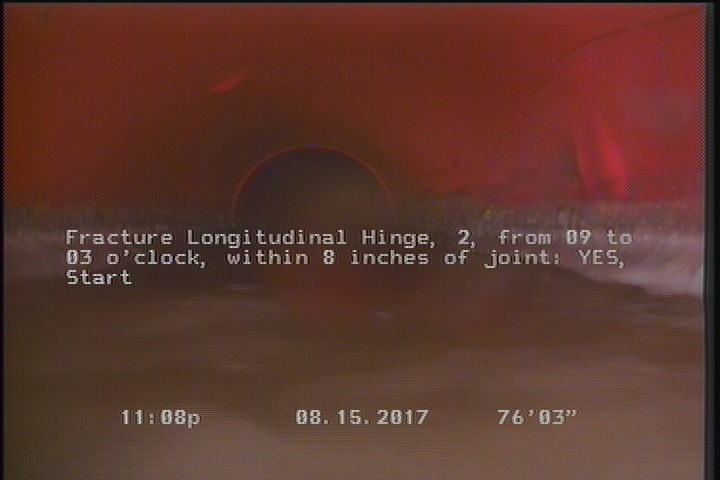

76.2 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 76.2 | FH2 | — |
| 87.8 | AMH | 08 0227 |
| 0 | AMH | 08 0228 |
| 87.8 | CM | — |
| 0 | MWM | — |
| 87.8 | FH2 | — |
| 87.8 | DAGS | — |
| 0 | MGO | CONNECTION AT 9 OC |
| 2 | DAGS | — |
| 0 | MWL | — |
| 87.8 | MGO | CONNECTION AT 3 OC |
| 6.1 | CM | — |
| 32.4 | TF | — |
Properties (5)
- additional_info
- SC345628
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-15T22:22:26-07:00
- sewer_category
- Gravity
