Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 09:48 AM
08 0216_08 0215 _08162017_031407.mp4
- Date
- 08/16/2017
- W/O
- 646329
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00005
- PipeID
- P00086
- Time
- 2:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4689
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_646329_TV08112_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0216
- Downstream MH
- 08 0215
- Dir. of Survey
- Downstream
- Length Surveyed
- 44.3 ft.
- Total Length
- 44.3 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

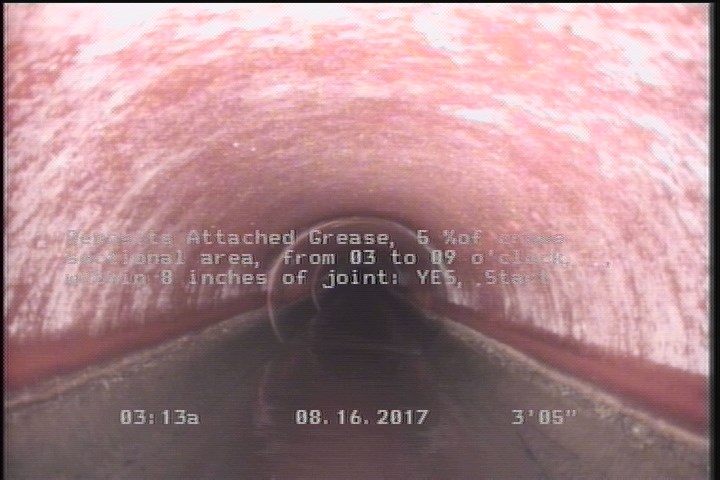

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

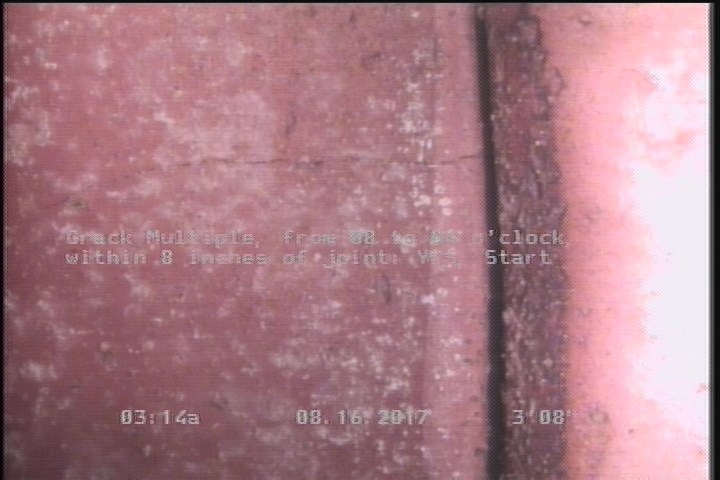

3.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

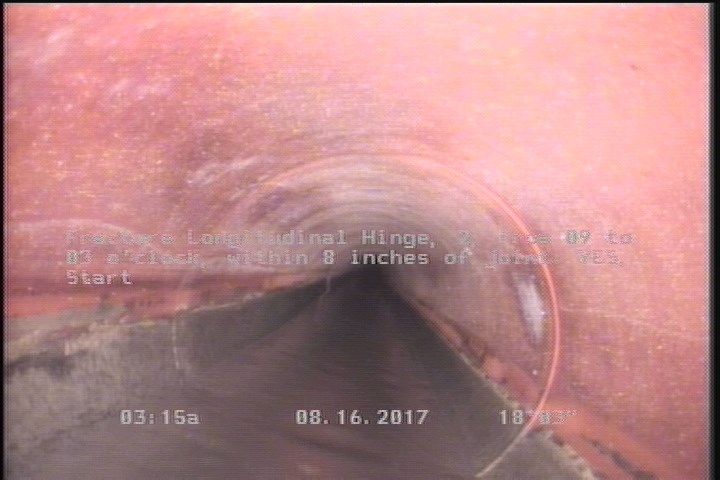

18.2 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 08 0216 |
| 18.2 | FH2 | — |
| 44.3 | CM | — |
| 44.3 | DAGS | — |
| 3.4 | DAGS | — |
| 44.3 | AMH | 08 0215 |
| 3.7 | CM | — |
| 44.3 | FH2 | — |
| 44.3 | MGO | CONNECTION AT 3 OC |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345628
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-16T02:48:25-07:00
- sewer_category
- Gravity
