Wastewater/Activity/PacpInspection/1.0Aug 15, 2017, 09:51 AM
08 0230_08 0229 _08152017_032325.mp4
- Date
- 08/15/2017
- W/O
- 646326
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00005
- PipeID
- P00104
- Time
- 2:51 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4688
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- TORRANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_646329_TV08112_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 08 0230
- Downstream MH
- 08 0229
- Dir. of Survey
- Downstream
- Length Surveyed
- 345.1 ft.
- Total Length
- 345.1 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

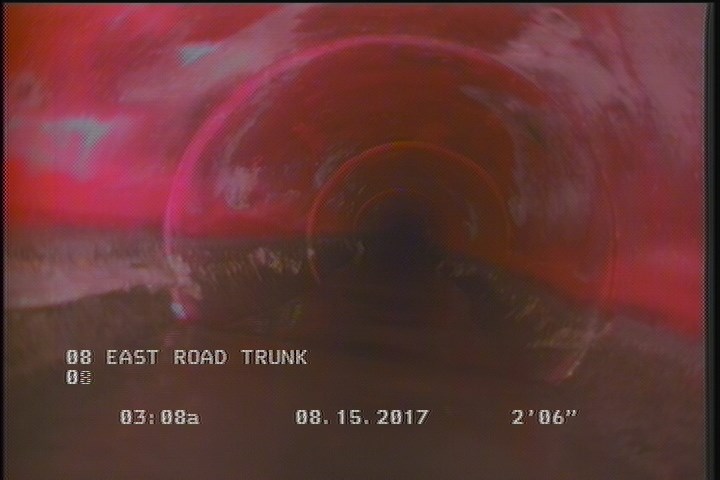

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

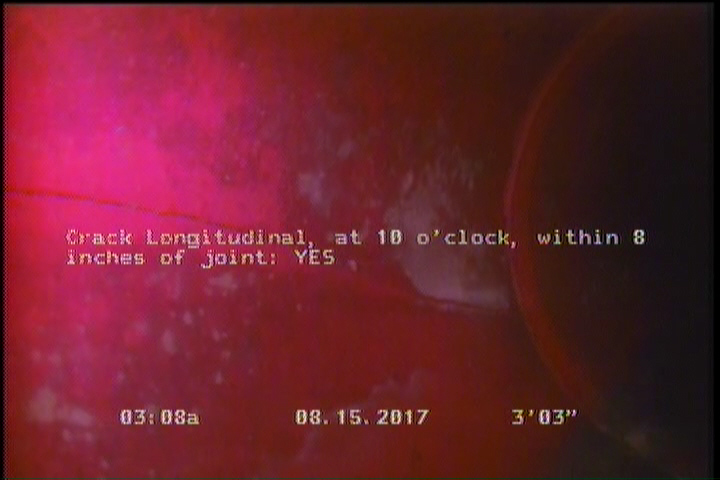

3.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

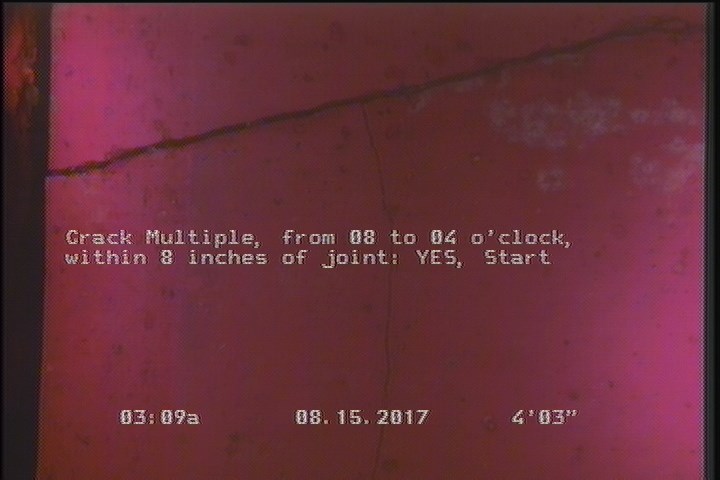

4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

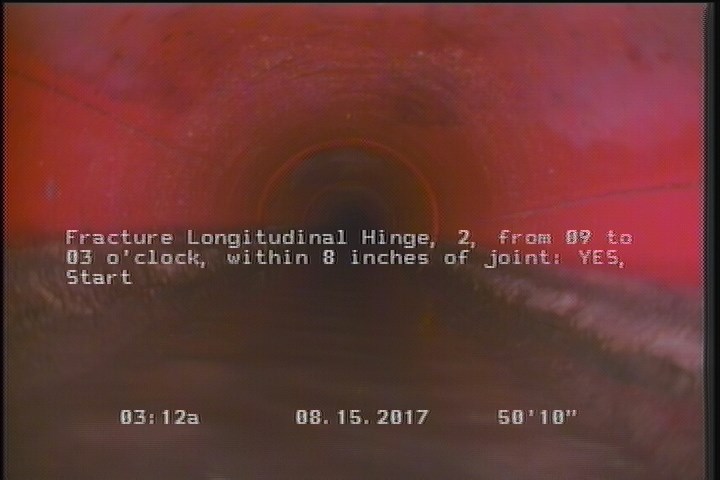

50.9 ft. - Fracture Longitudinal Hinge, 2, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0230 |
| 345 | MGO | CAPPED CONNECTION 9 OC |
| 3.3 | CL | — |
| 345 | CM | — |
| 31.5 | TFC | — |
| 284.3 | TF | — |
| 181.6 | TF | — |
| 84.3 | TF | — |
| 345.1 | AMH | 08 0229 |
| 345 | FH2 | — |
| 0 | MWL | — |
| 2.5 | DAGS | — |
| 345 | DAGS | — |
| 243.2 | TFC | — |
| 4.3 | CM | — |
| 0 | MWM | — |
| 50.9 | FH2 | — |
Properties (5)
- additional_info
- SC345627
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-15T02:51:30-07:00
- sewer_category
- Gravity
