Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 07:57 PM
08 0417_08 0416_9272017_133104.mp4
- Date
- 09/27/2017
- W/O
- 0640673
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00022
- PipeID
- P00471
- Time
- 12:57 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7523
- Sewer Name
- 08 WILMINGTON AVENUE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20170927SHO_WILMINGTON_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 08 0417
- Downstream MH
- 08 0416
- Dir. of Survey
- Downstream
- Length Surveyed
- 357.2 ft.
- Total Length
- 357.2 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

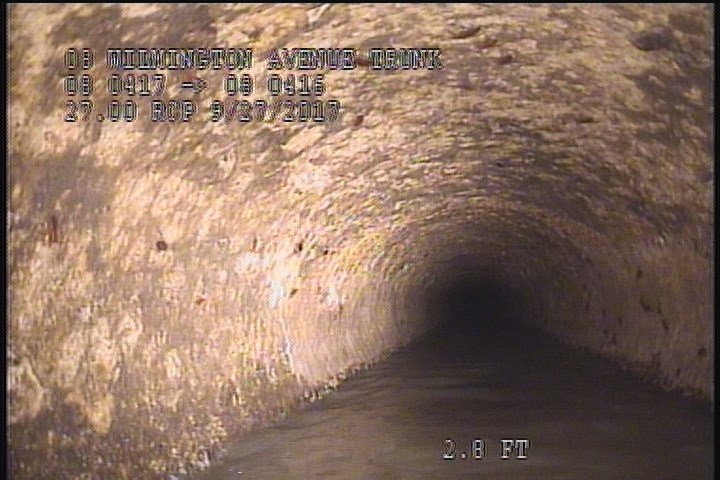

2.8 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

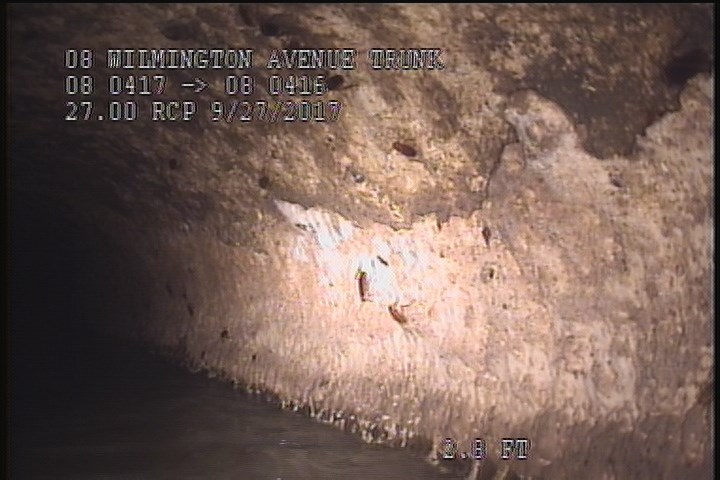

2.8 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 2.8 | SRI | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 3 |
| 357.2 | MGO | ACTIVE CONNECTION IN THE MH @ 3 O CLOCK |
| 0 | MWL | — |
| 2.8 | MGO | MAG COAT 95% INTACT |
| 356 | SSS | — |
| 0 | AMH | 0130 |
| 357.2 | MGO | ACTIVE CONNECTION IN THE MH @ 9 O CLOCK |
| 151.3 | TF | OPEN |
| 2.8 | SSS | — |
| 0 | MWM | — |
| 356 | SRI | — |
| 357.2 | AMH | 0145 |
| 46.1 | TF | OPEN |
| 248 | TFA | — |
| 206.2 | TF | OPEN |
Properties (4)
- custom_field_three
- 95% TO 100% MAG COAT INTACT
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-09-27T12:57:37-07:00
