Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 03:54 PM
08 0427_08 0426_9272017_091752.mp4
- Date
- 09/27/2017
- W/O
- 0640673
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00022
- PipeID
- P00481
- Time
- 8:54 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7523
- Sewer Name
- 08 WILMINGTON AVENUE TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- 20170927SHO_WILMINGTON_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 08 0427
- Downstream MH
- 08 0426
- Dir. of Survey
- Downstream
- Length Surveyed
- 487.5 ft.
- Total Length
- 487.5 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

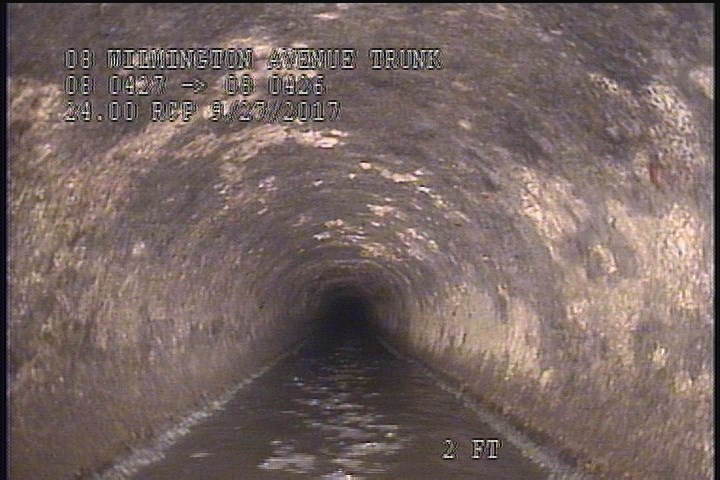

2 ft. - General Observation - MAG COAT 30% INTACT

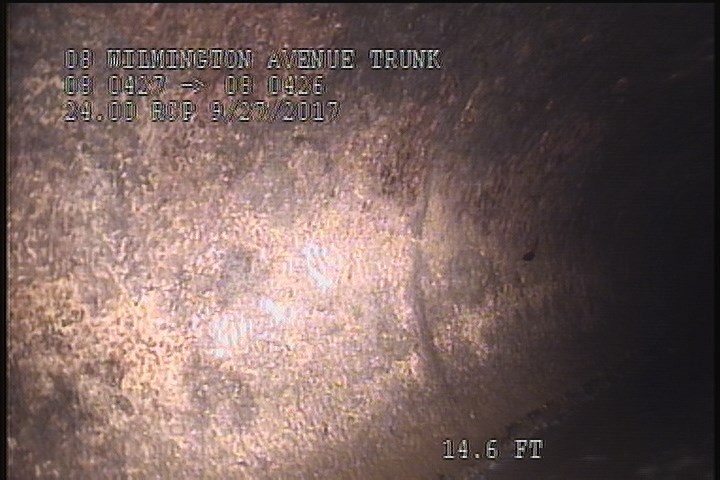

14.6 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

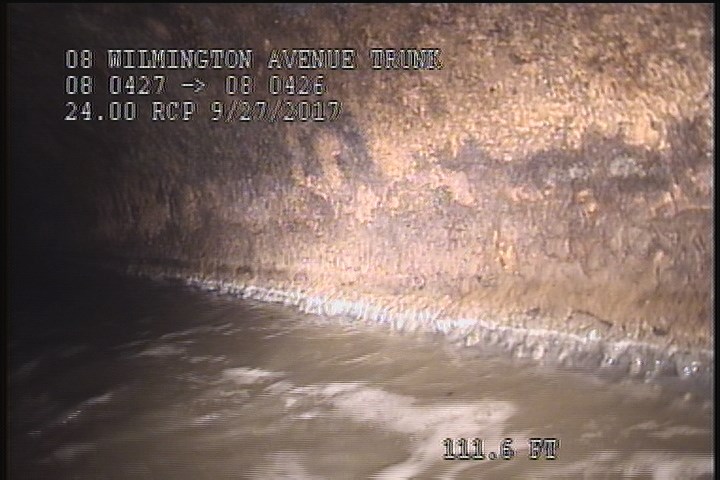

111.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 484.9 | DAGS | — |
| 305.6 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 8 O CLOCK |
| 2 | MGO | MAG COAT 30% INTACT |
| 0 | MWM | — |
| 14.6 | SRI | — |
| 409.6 | TFA | — |
| 0 | AMH | 0915 |
| 487.5 | AMH | 0940 |
| 484.8 | SRI | — |
| 207.7 | TFA | — |
| 111.6 | DAGS | — |
Properties (5)
- additional_info
- MPEG BUGGED OUT, MISSING PART OF THE INSPECTION
- custom_field_three
- SURFACE ROUGHNESS INCREASED & MAG
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-27T08:54:32-07:00
