Wastewater/Activity/PacpInspection/1.0Sep 25, 2017, 10:25 AM
Section#6_B 0909_B 0908__9252017__G6830.mp4
- Date
- 09/25/2017
- W/O
- 0647702
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00922
- PipeID
- P20258
- Time
- 3:25 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6830
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170923MDM_JOINT_OUTFALL_B_UNIT_1A_REPLACEMENT
- Material
- RC-PVC T-LOCK LINED
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- B 0909
- Downstream MH
- B 0908
- Dir. of Survey
- Downstream
- Length Surveyed
- 900.8 ft.
- Total Length
- 900.8 ft.
- Structural Index
- 3
- Structural Quick
- 3a00
- Structural Rating
- 507
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 512
Observation photos (4)

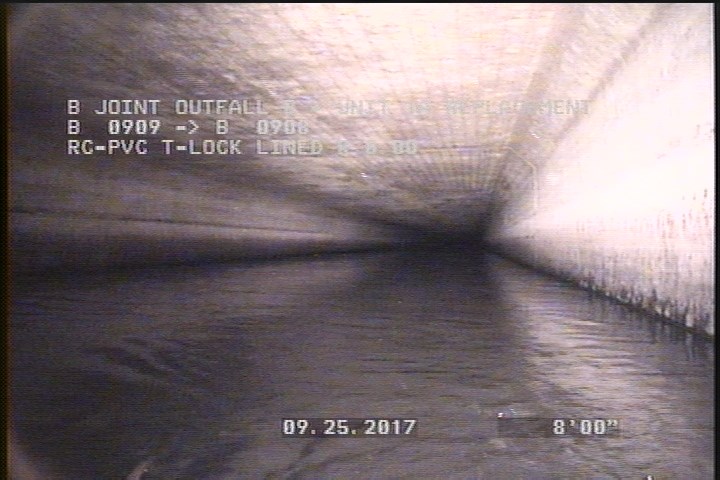

8 ft. - General Observation - RC-PVC T- LOCK LINER

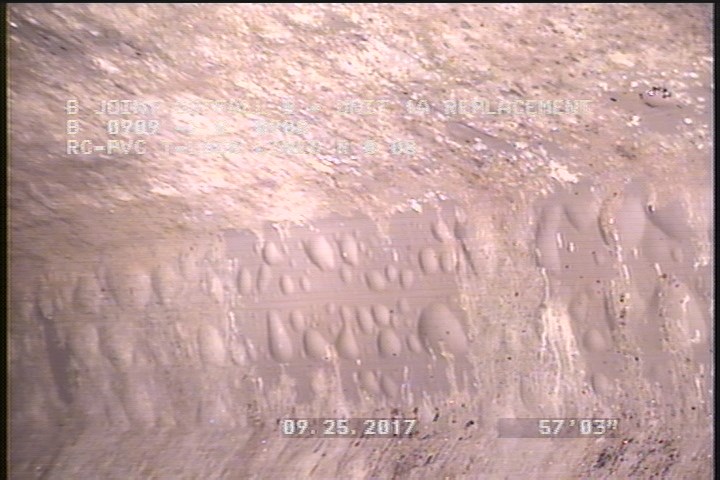

57.3 ft. - Lining Failure Blistered, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SMALL BLISTERS SPORATIC

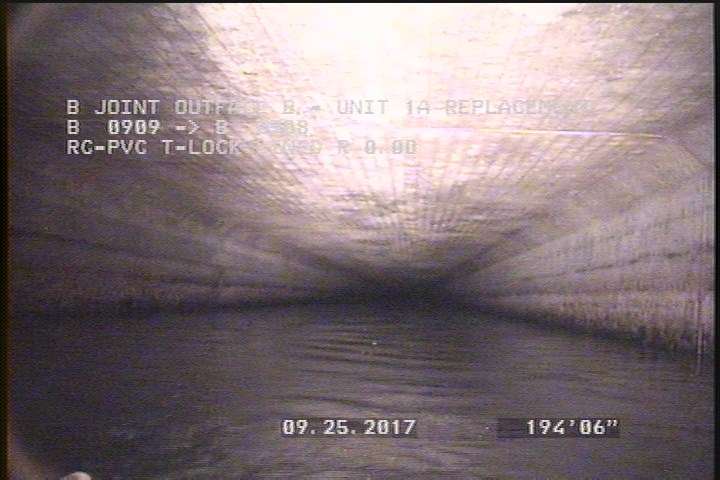

194.5 ft. - General Observation - RC-PVC T- LOCK LINER

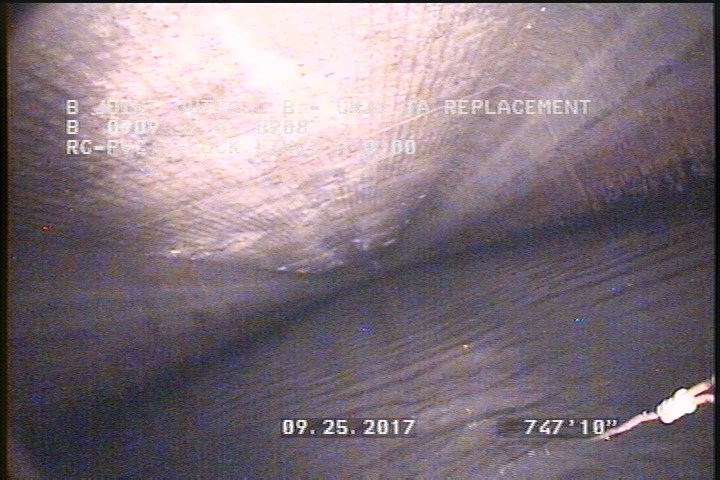

747.8 ft. - General Observation - RC-PVC T- LOCK LINER
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 194.5 | MGO | RC-PVC T- LOCK LINER |
| 8 | MGO | RC-PVC T- LOCK LINER |
| 0 | AMH | 4:15AM |
| 900.3 | LFB | SMALL BLISTERS |
| 57.3 | LFB | SMALL BLISTERS SPORATIC |
| 747.8 | MGO | RC-PVC T- LOCK LINER |
| 900.8 | AMH | 5:30AM |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SMALL BLISTERS- LINER GOOD COND.
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-25T03:25:11-07:00
