Wastewater/Activity/PacpInspection/1.0Sep 25, 2017, 09:02 AM
Section#5_B 0912_B 0911__9252017__G6830.mp4
- Date
- 09/25/2017
- W/O
- 0647702
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00922
- PipeID
- P20261
- Time
- 2:02 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6830
- Sewer Name
- B JOINT OUTFALL B - UNIT 1A REPLACEMENT
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20170923MDM_JOINT_OUTFALL_B_UNIT_1A_REPLACEMENT
- Material
- RC-PVC T-LOCK LINED
- Shape
- Rectangular
- Height
- 0 in.
- Upstream MH
- B 0912
- Downstream MH
- B 0911
- Dir. of Survey
- Downstream
- Length Surveyed
- 231.9 ft.
- Total Length
- 231.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

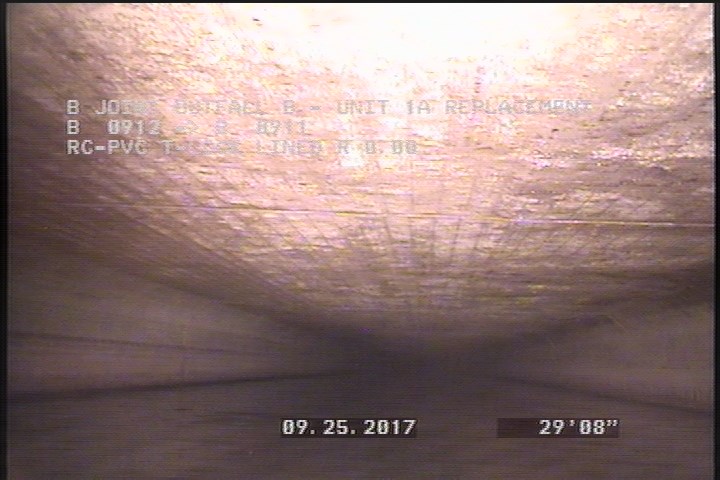

32 ft. - General Observation - RC-PVC T-LOCK LINER

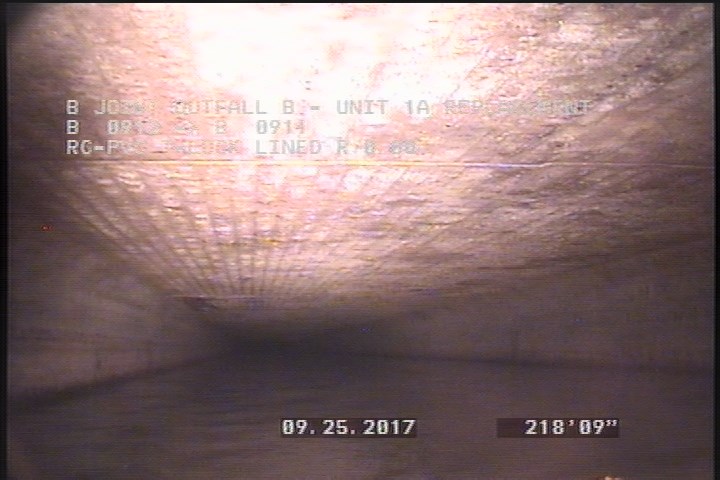

218.8 ft. - General Observation - RC-PVC T- LOCK LINER

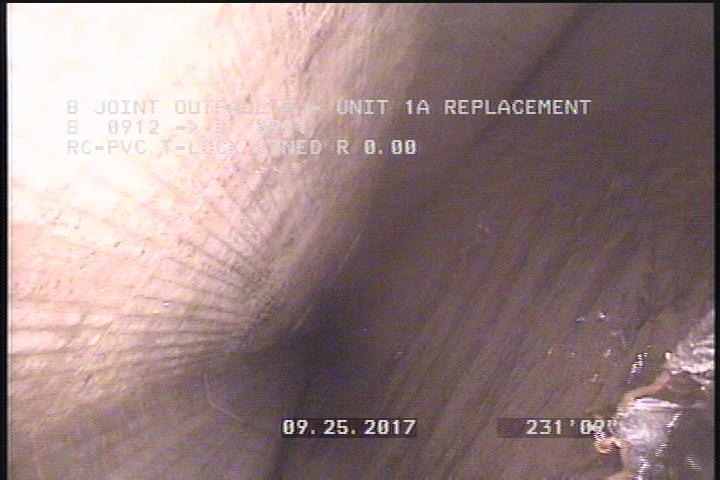

231.5 ft. - General Observation - ZOOM DOWNSTREAM
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 2:25AM |
| 231.5 | MGO | ZOOM DOWNSTREAM |
| 231.9 | MSA | 2:50AM- SLUDGE& DEBRIE ON CCTV CABLE |
| 0 | MWM | — |
| 231.5 | MGO | FLOATING CAMERA TO MUCH SLUDGE TO CONTINUE |
| 218.8 | MGO | RC-PVC T- LOCK LINER |
| 32 | MGO | RC-PVC T-LOCK LINER |
Properties (4)
- custom_field_three
- LINER GOOD COND.
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-25T02:02:56-07:00
