Wastewater/Activity/PacpInspection/1.0Jul 12, 2017, 07:48 AM
H 1358_H 1357 _07122017_005005.mp4
- Date
- 07/12/2017
- W/O
- 641138
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01187
- PipeID
- P26155
- Time
- 12:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4706
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- SOUTH EL MONTE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_641138_TV15216_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1358
- Downstream MH
- H 1357
- Dir. of Survey
- Downstream
- Length Surveyed
- 598.3 ft.
- Total Length
- 598.3 ft.
- Structural Index
- 2
- Structural Quick
- 2W00
- Structural Rating
- 238
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 238
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 476
Observation photos (1)

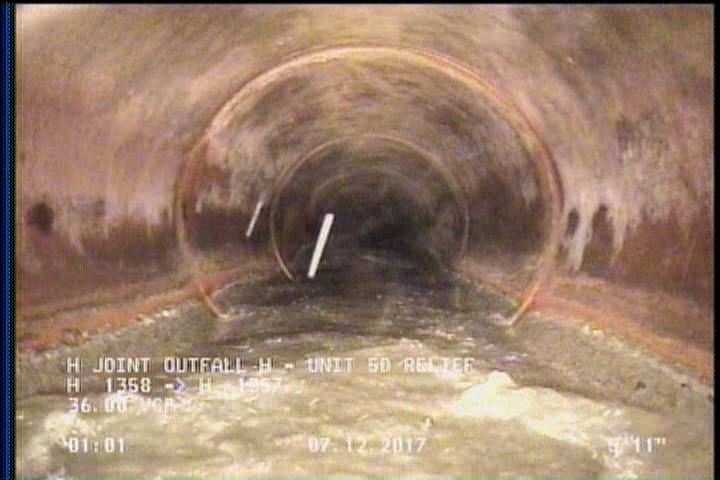

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 1358 |
| 2 | DAGS | — |
| 598.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 598 | SSS | — |
| 596.5 | DAGS | — |
| 598.3 | AMH | H 1357 |
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC345438
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-12T00:48:25-07:00
- sewer_category
- Gravity
- year_laid
- 40073
