Wastewater/Activity/PacpInspection/1.0Jun 13, 2017, 11:14 PM
H 1367_H 1366 _061317_014823.mp4
- Date
- 06/13/2017
- W/O
- 641138
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z01187
- PipeID
- P26164
- Time
- 4:14 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4549
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- EL MONTE
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_641138_TV15216_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1367
- Downstream MH
- H 1366
- Dir. of Survey
- Downstream
- Length Surveyed
- 447.4 ft.
- Total Length
- 447.4 ft.
- Structural Index
- 2
- Structural Quick
- 2Q00
- Structural Rating
- 178
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 182
Observation photos (1)

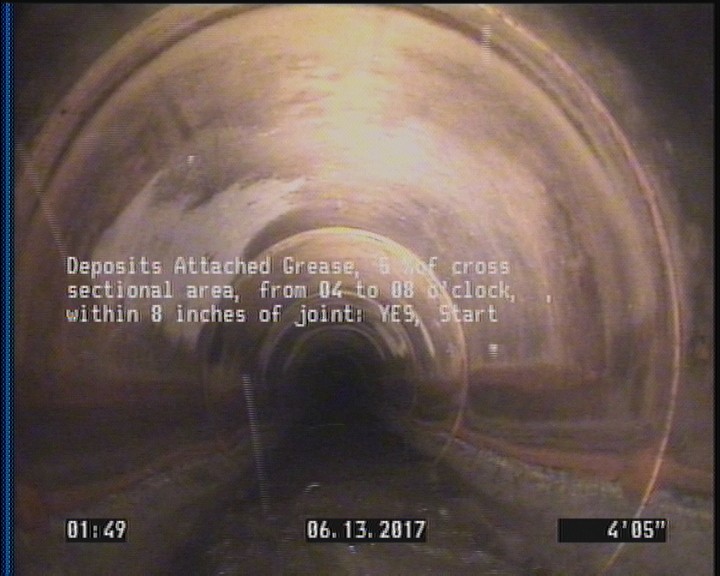

4.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 447.4 | DAGS | — |
| 446 | SSS | — |
| 0 | MWM | — |
| 447.4 | AMH | H 1366 |
| 4.4 | DAGS | — |
| 2 | SSS | — |
| 0 | AMH | H 1367 |
Properties (6)
- additional_info
- SC345364
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-13T16:14:59-07:00
- sewer_category
- Gravity
- year_laid
- 40073
