Wastewater/Activity/PacpInspection/1.0Aug 17, 2017, 03:47 PM
H 1346_H 1345 _08172017_084752.mp4
- Date
- 08/17/2017
- W/O
- 641138
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01187
- PipeID
- P26143
- Time
- 8:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4716
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- SOUTH EL MONTE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_641138_TV15216_JUN2017
- Material
- RGRCP-PTL
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- H 1346
- Downstream MH
- H 1345
- Dir. of Survey
- Downstream
- Length Surveyed
- 684.4 ft.
- Total Length
- 684.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Z00
- O&M Rating
- 272
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 272
Observation photos (1)

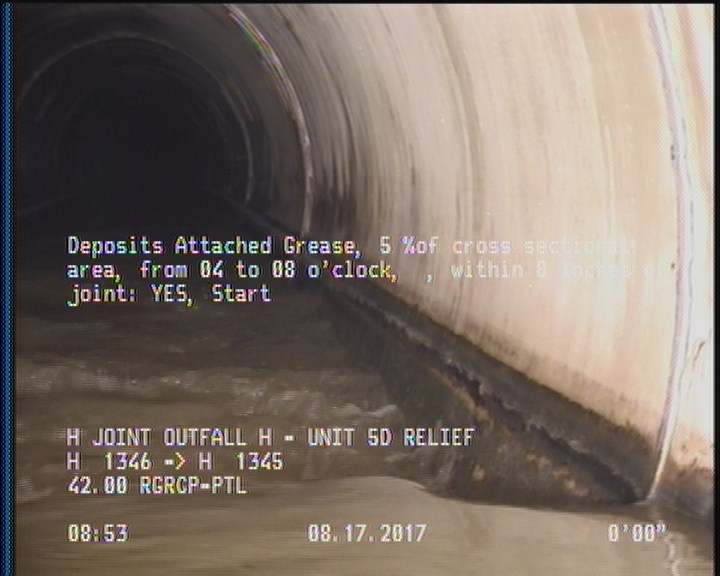

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | H 1346 |
| 2 | DAGS | — |
| 0 | MWM | — |
| 681.3 | DAGS | — |
| 0 | MWL | — |
| 684.4 | AMH | H 1345 |
Properties (6)
- additional_info
- SC345716
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-17T08:47:19-07:00
- sewer_category
- Gravity
- year_laid
- 39994
