Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 21, 2017, 08:26 AM

  • 02 1181_02 1180 _21082017_012706.mpg

Date
08/21/2017
W/O
652007
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00262
PipeID
P03688
Time
1:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4789
Sewer Name
02 GARFIELD AVENUE DIVERSION TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_652007_TV02291_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
02 1181
Downstream MH
02 1180
Dir. of Survey
Downstream
Length Surveyed
331.5 ft.
Total Length
331.6 ft.
Structural Index
3
Structural Quick
3D00
Structural Rating
69
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
69
Pipe schematic from manhole 02 1181 to 02 1180
MH: 02 1181MH: 02 1180downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 11810 ft. MWL - Water Level, 5 %of cross sectional area13.8 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES29.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES68.6 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES84.2 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES88.7 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start180.8 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish274.3 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES331.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1180

Observation photos (6)

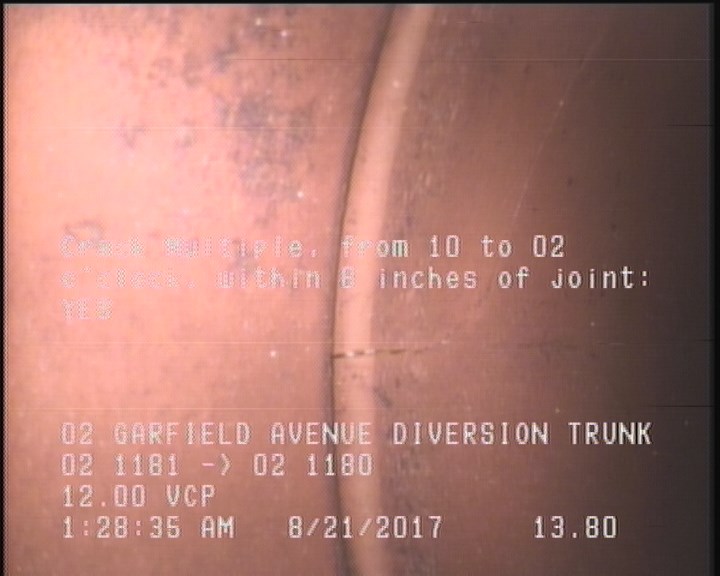

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    13.8 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

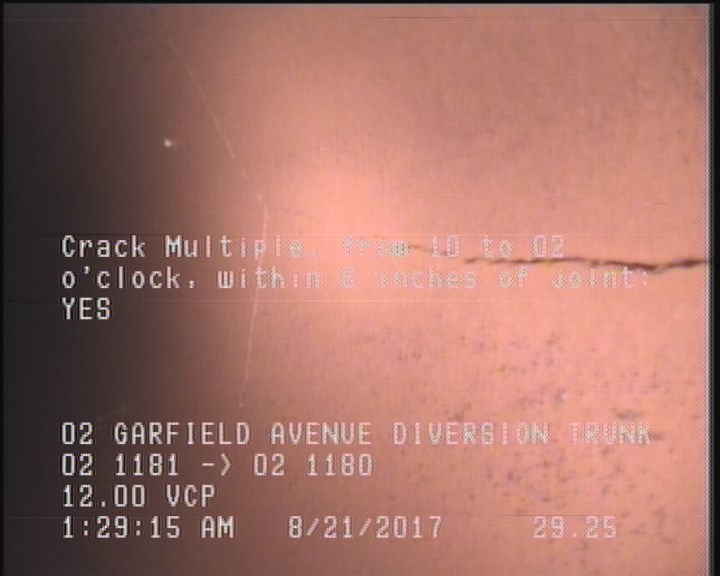

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    29.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

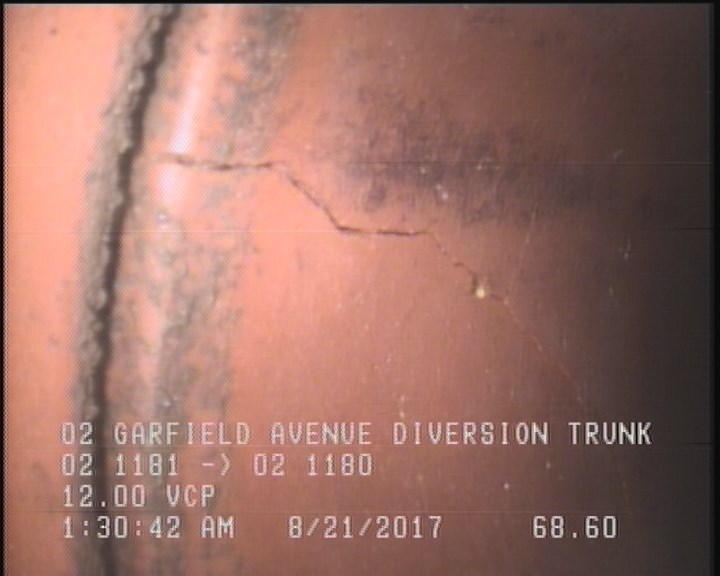

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    68.6 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

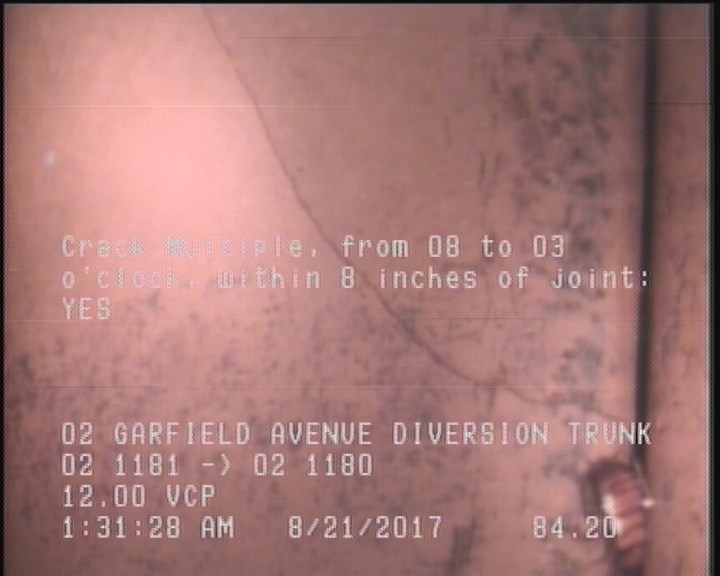

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    84.2 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

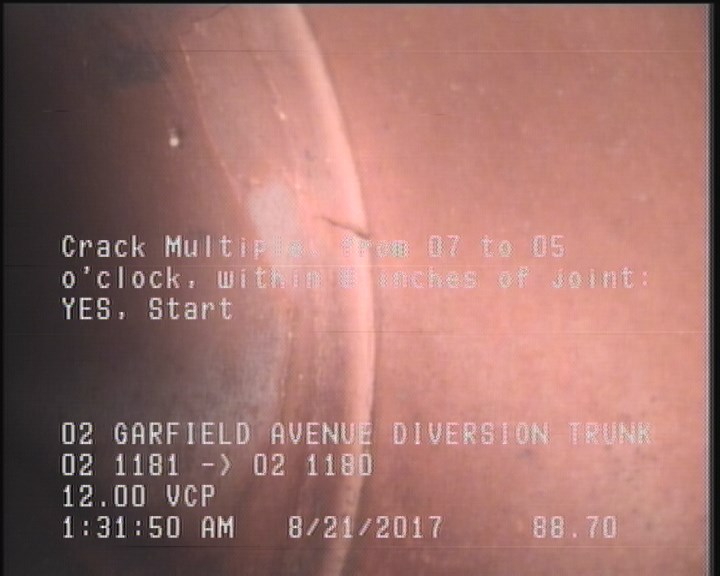

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    88.7 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

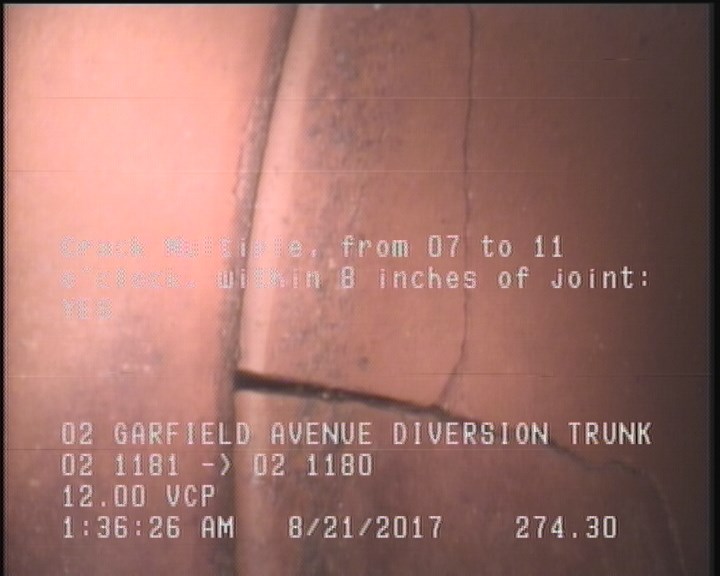

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    274.3 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

All inspections of P03688Work order 652007

Observations (11)

DistanceCodeObservation
0MWM—
0AMH02 1181
180.8CM—
331.6AMH02 1180
274.3CM—
0MWL—
29.3CM—
84.2CM—
68.6CM—
13.8CM—
88.7CM—

Properties (4)

additional_info
SC345548
custom_field_two
3
customer
LACSD
datetime
2017-08-21T01:26:51-07:00
