Wastewater/Activity/PacpInspection/1.0May 31, 2017, 08:53 AM
05 2592_05 2591 _31052017_021113.mp4
- Date
- 05/31/2017
- W/O
- 641198
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01131
- PipeID
- P25297
- Time
- 1:53 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4273
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_641198_TV05127_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2592
- Downstream MH
- 05 2591
- Dir. of Survey
- Downstream
- Length Surveyed
- 469.5 ft.
- Total Length
- 469.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

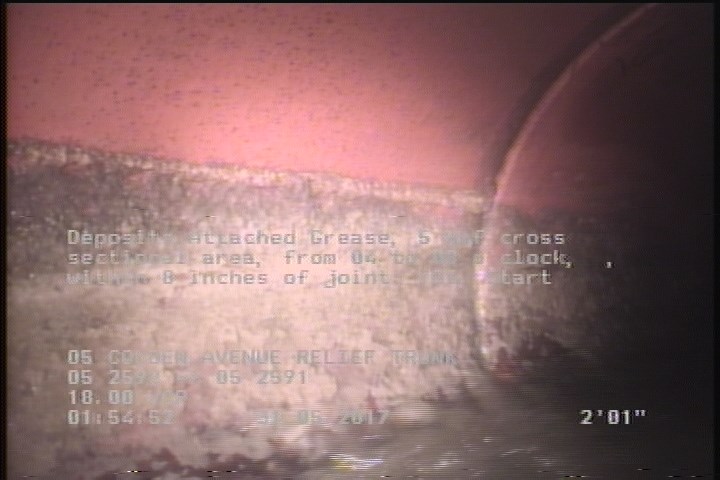

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2.1 | DAGS | — |
| 469.5 | AMH | 05 2591 |
| 0 | AMH | 05 2592 |
| 468.4 | DAGS | — |
Properties (5)
- additional_info
- SC345273
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-05-31T01:53:07-07:00
- year_laid
- 38590
