Wastewater/Activity/PacpInspection/1.0May 30, 2017, 08:31 AM
05 2609_05 2608 _30052017_014500.mp4
- Date
- 05/30/2017
- W/O
- 641198
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01131
- PipeID
- P25314
- Time
- 1:31 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4272
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_641198_TV05127_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2609
- Downstream MH
- 05 2608
- Dir. of Survey
- Downstream
- Length Surveyed
- 314.9 ft.
- Total Length
- 314.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

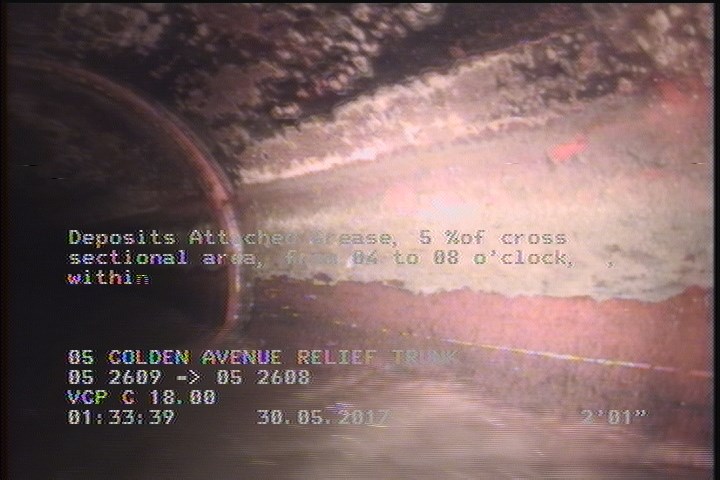

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 312 | DAGS | — |
| 314.9 | MGO | CONNECTION AT MH 3 OCLOCK ACTIVE |
| 0 | MWL | — |
| 0 | AMH | 05 2609 |
| 2.1 | DAGS | — |
| 0 | MWM | — |
| 314.9 | AMH | 05 2608 |
Properties (4)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-05-30T01:31:39-07:00
- year_laid
- 38590
