Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 10:08 AM

  • LN 0002_LN 0001_9192017_033501.mp4

Date
09/19/2017
W/O
0661613
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00576
PipeID
P20153
Time
3:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7518
Sewer Name
14 LANCASTER WRP
City
LANCASTER
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
01
Purpose
Maintenance Related
Project
20170919MDM_ROSEMOUNT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Upstream MH
LN 0002
Downstream MH
LN 0001
Dir. of Survey
Downstream
Length Surveyed
85.5 ft.
Total Length
85.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole LN 0002 to LN 0001
MH: LN 0002MH: LN 0001downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:00AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active8 ft. MGO - General Observation - 36" VCP26.2 ft. MGP - General Photograph59.5 ft. MGP - General Photograph59.5 ft. MGO - General Observation - 36" VCP84.5 ft. MGO - General Observation - VIEW DOWNSTREAM MH# LN 000185.5 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (5)

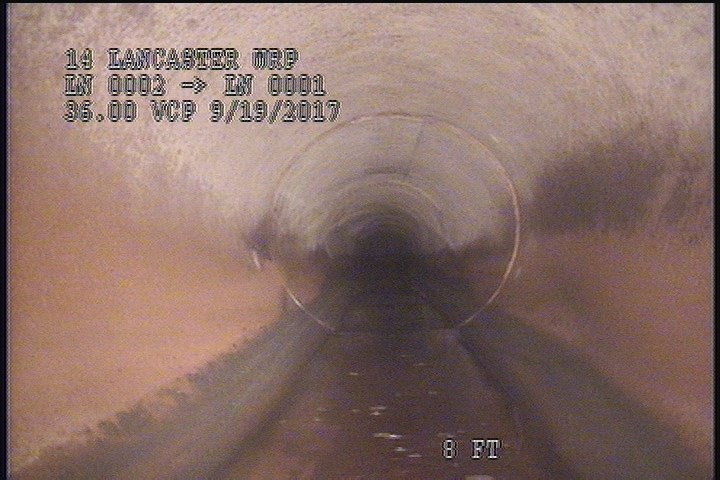

  • General Observation - 36" VCP

    8 ft. - General Observation - 36" VCP

  • General Photograph

    26.2 ft. - General Photograph

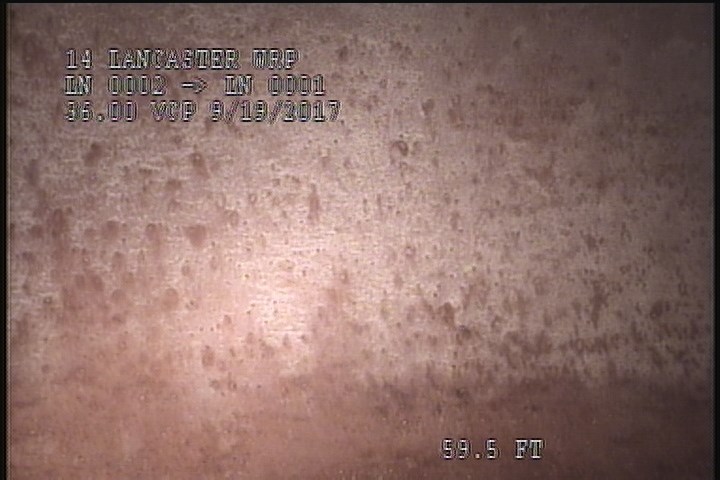

  • General Photograph

    59.5 ft. - General Photograph

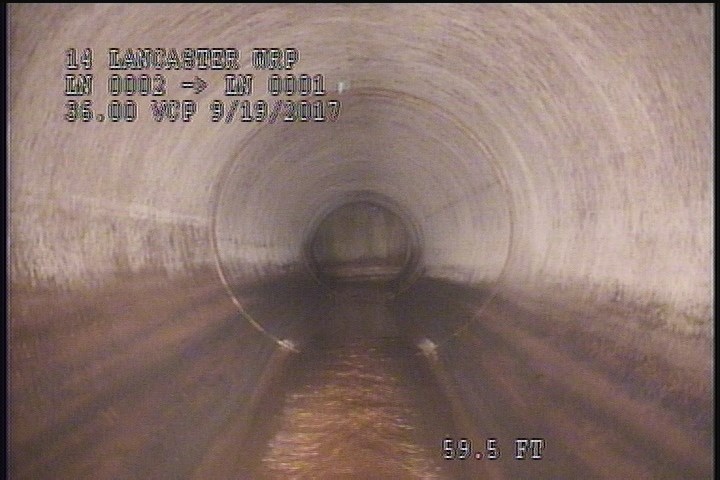

  • General Observation - 36" VCP

    59.5 ft. - General Observation - 36" VCP

  • General Observation - VIEW DOWNSTREAM MH# LN 0001

    84.5 ft. - General Observation - VIEW DOWNSTREAM MH# LN 0001

All inspections of P20153Work order 0661613

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
26.2MGP—
84.5MGOVIEW DOWNSTREAM MH# LN 0001
8MGO36" VCP
59.5MGP—
59.5MGO36" VCP
0AMH3:00AM
85.5AMH3:50AM
0MGOConn. @ Mh, 3 O' Clock. Active

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2017-09-19T03:08:34-07:00
year_laid
19910726
