Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 10:26 AM

  • 16 0167_16 0166_16082017_032710.mp4

Date
08/16/2017
W/O
651867
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00648
PipeID
P13199
Time
3:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4785
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
SOUTH PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Routine Assessment
Project
WO_651867_TV16081_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
16 0167
Downstream MH
16 0166
Dir. of Survey
Downstream
Length Surveyed
412.4 ft.
Total Length
412.4 ft.
Structural Index
2
Structural Quick
5242
Structural Rating
335
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
335
Pipe schematic from manhole 16 0167 to 16 0166
MH: 16 0167MH: 16 0166downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 01670 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start155 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES, Start155.1 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start155.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish159 ft. B - Broken, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish165.8 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish165.9 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start205 ft. RPP - Repair Patch, from 07 to 10 o'clock, within 8 inches of joint: YES - POSSIBLE408.9 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish411 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish412.4 ft. AMH - Downstream Manhole, Survey Ends - 16 0166

Observation photos (3)

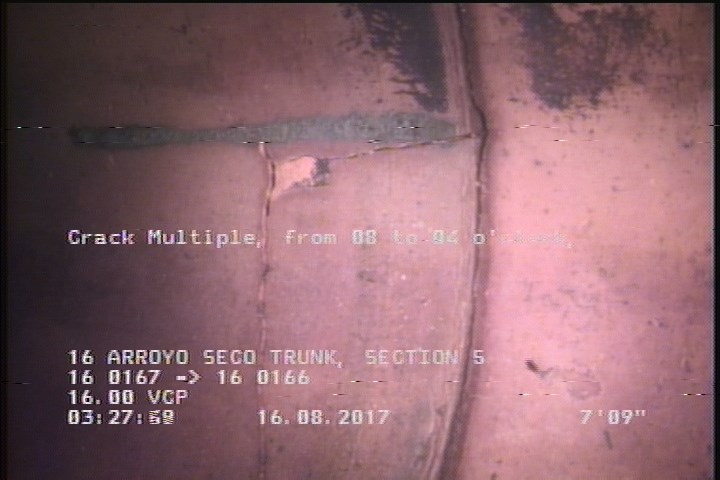

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

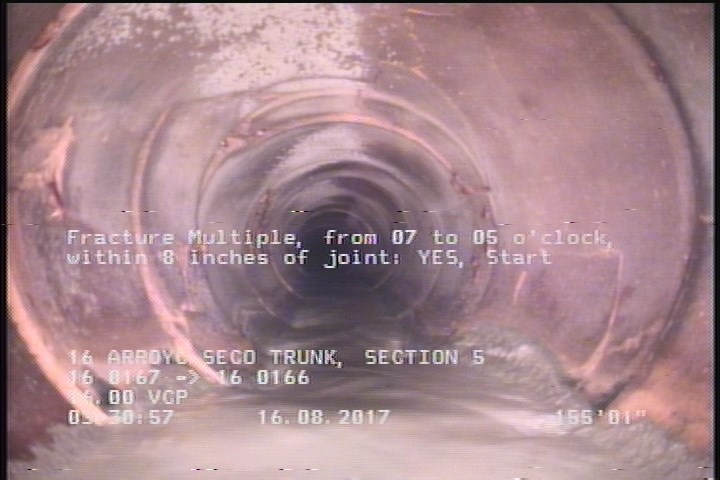

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    155.1 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

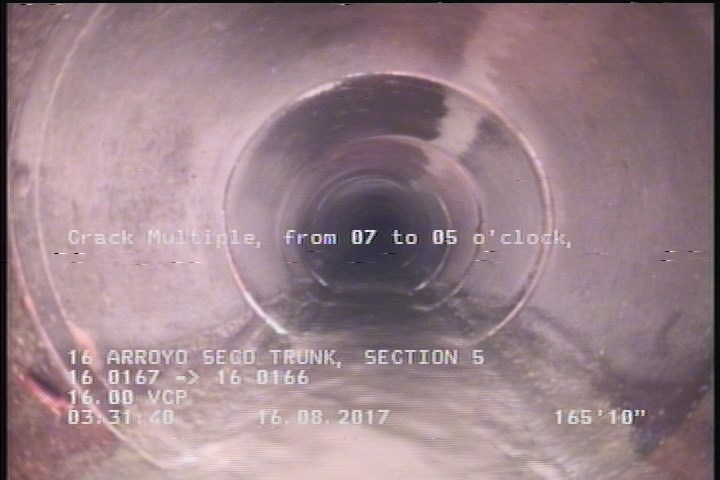

  • Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    165.9 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P13199Work order 651867

Observations (15)

DistanceCodeObservation
155.1FM—
165.9CM—
408.9CM—
0AMH16 0167
155.1CM—
159B—
7.8CM—
412.4AMH16 0166
165.8FM—
411SSS—
0MWL—
155B—
2SSS—
0MWM—
205RPPPOSSIBLE

Properties (5)

additional_info
SC345544
custom_field_two
1
customer
LACSD
datetime
2017-08-16T03:26:39-07:00
sewer_category
Gravity
