Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 10:23 AM

  • 16 0168_16 0167_16082017_032330.mp4

Date
08/16/2017
W/O
651867
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00648
PipeID
P13200
Time
3:23 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4785
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
SOUTH PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Routine Assessment
Project
WO_651867_TV16081_AUG2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Width
16 in.
Upstream MH
16 0168
Downstream MH
16 0167
Dir. of Survey
Downstream
Length Surveyed
47.3 ft.
Total Length
47.3 ft.
Structural Index
2
Structural Quick
322A
Structural Rating
26
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
26
Pipe schematic from manhole 16 0168 to 16 0167
MH: 16 0168MH: 16 0167downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 01680 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start29.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES33.9 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start44.6 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish47 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish47.3 ft. AMH - Downstream Manhole, Survey Ends - 16 0167

Observation photos (2)

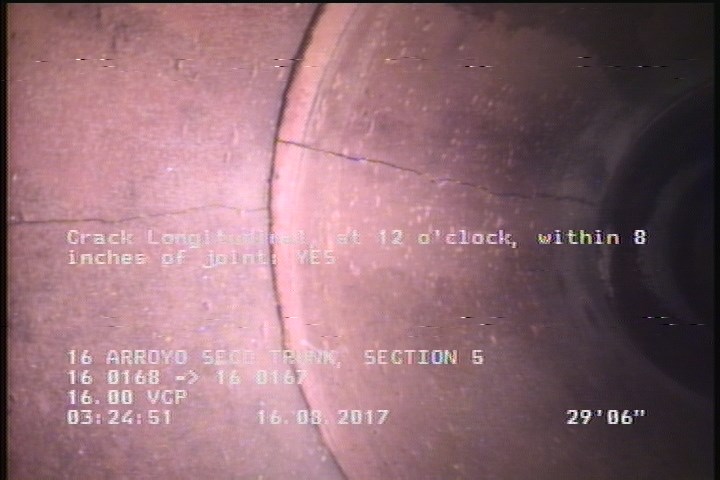

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    29.5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

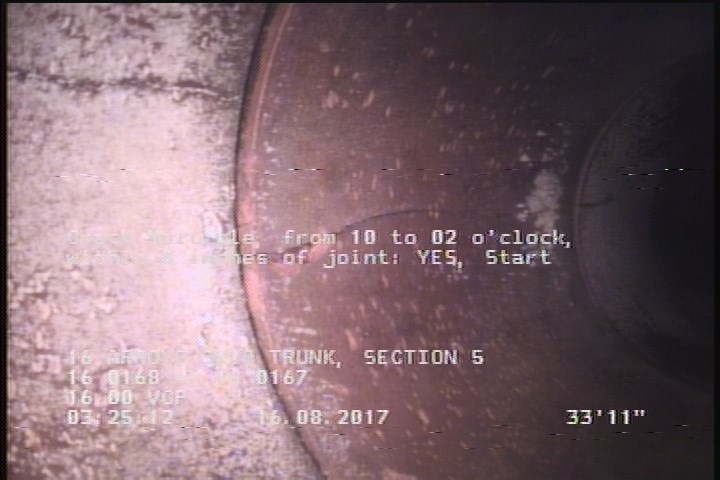

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    33.9 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P13200Work order 651867

Observations (9)

DistanceCodeObservation
29.5CL—
33.9CM—
0MWL—
44.6CM—
2SSS—
0AMH16 0168
0MWM—
47SSS—
47.3AMH16 0167

Properties (5)

additional_info
SC345544
custom_field_two
3
customer
LACSD
datetime
2017-08-16T03:23:24-07:00
sewer_category
Gravity
