Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 10:44 AM
16 0170_16 0169_16082017_034449.mp4
- Date
- 08/16/2017
- W/O
- 651867
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00648
- PipeID
- P13202
- Time
- 3:44 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4785
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_651867_TV16081_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0169
- Downstream MH
- 16 0170
- Dir. of Survey
- Upstream
- Length Surveyed
- 524.3 ft.
- Total Length
- 524.3 ft.
- Structural Index
- 2
- Structural Quick
- 5141
- Structural Rating
- 224
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 224
Observation photos (4)
18 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

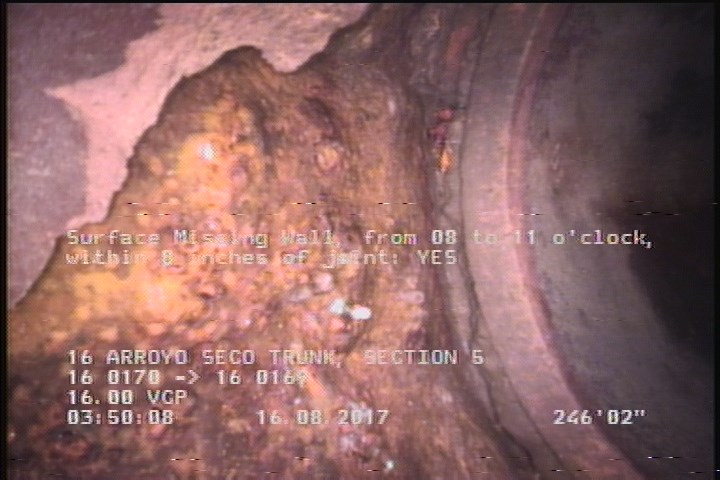

246.2 ft. - Surface Missing Wall, from 08 to 11 o'clock, within 8 inches of joint: YES

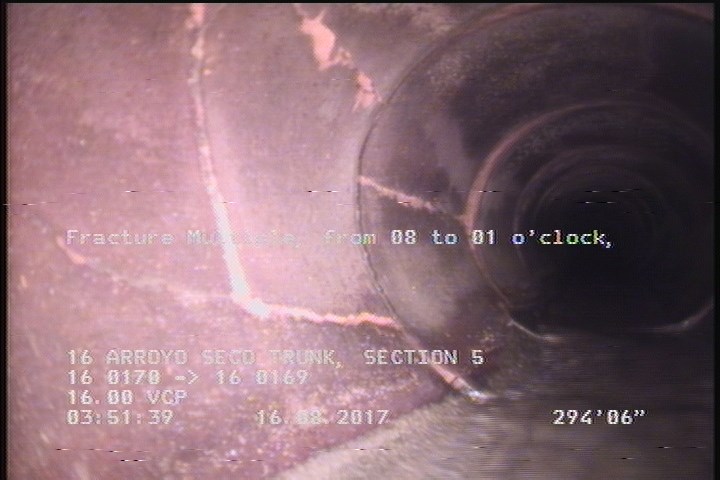

294.5 ft. - Fracture Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES

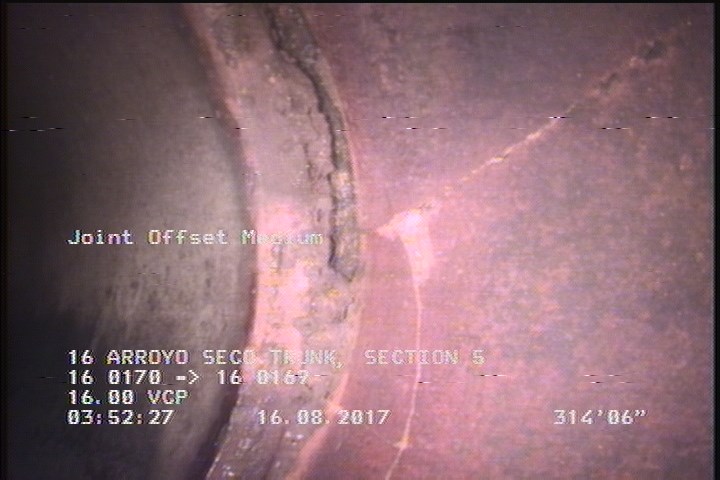

314.5 ft. - Joint Offset Medium
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 294.5 | FM | — |
| 246.2 | SMW | — |
| 2 | SSS | — |
| 0 | MWL | — |
| 524.3 | AMH | 16 0170 |
| 0 | AMH | 16 0169 |
| 314.5 | JOM | — |
| 520.1 | CM | — |
| 18 | CM | — |
| 0 | MWM | — |
| 524 | SSS | — |
Properties (5)
- additional_info
- SC345544
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-08-16T03:44:07-07:00
- sewer_category
- Gravity
