Wastewater/Activity/PacpInspection/1.0Aug 16, 2017, 11:09 AM
16 0165_16 0164_16082017_041027.mp4
- Date
- 08/16/2017
- W/O
- 651867
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00648
- PipeID
- P13197
- Time
- 4:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4785
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_651867_TV16081_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0164
- Downstream MH
- 16 0165
- Dir. of Survey
- Upstream
- Length Surveyed
- 497.3 ft.
- Total Length
- 497.3 ft.
- Structural Index
- 2
- Structural Quick
- 322S
- Structural Rating
- 210
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 210
Observation photos (5)

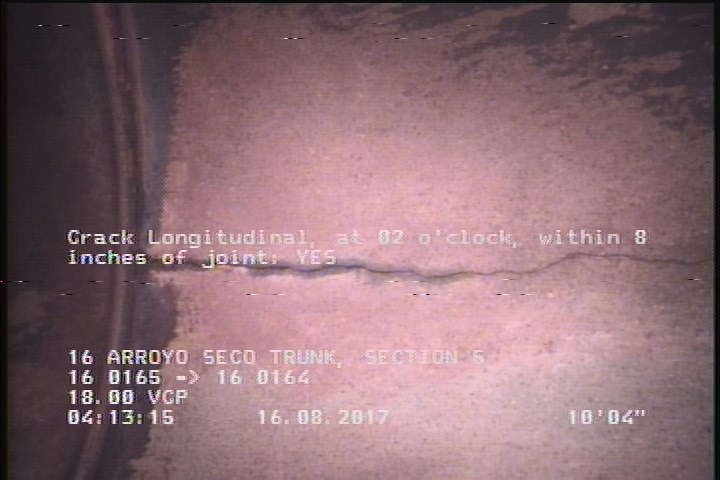

10.4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

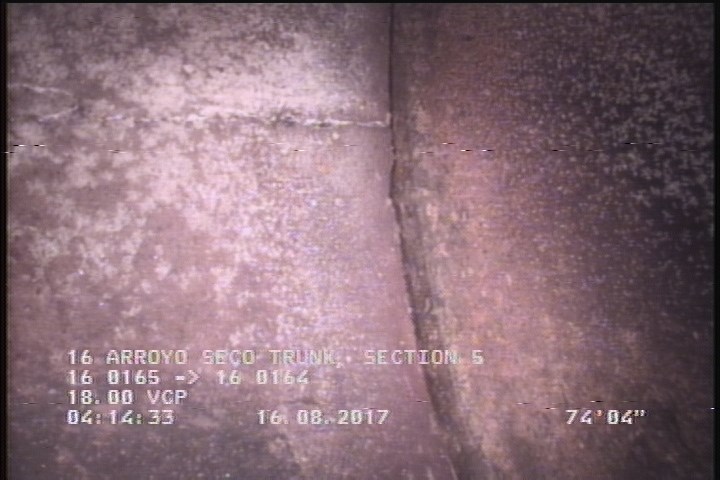

74.3 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

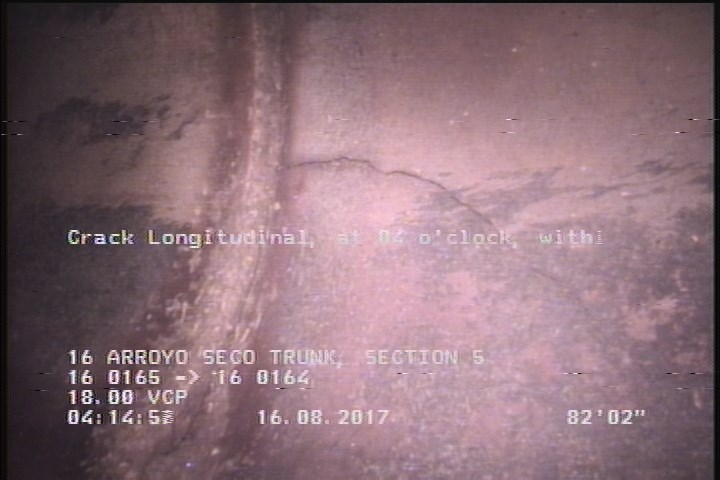

82.2 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

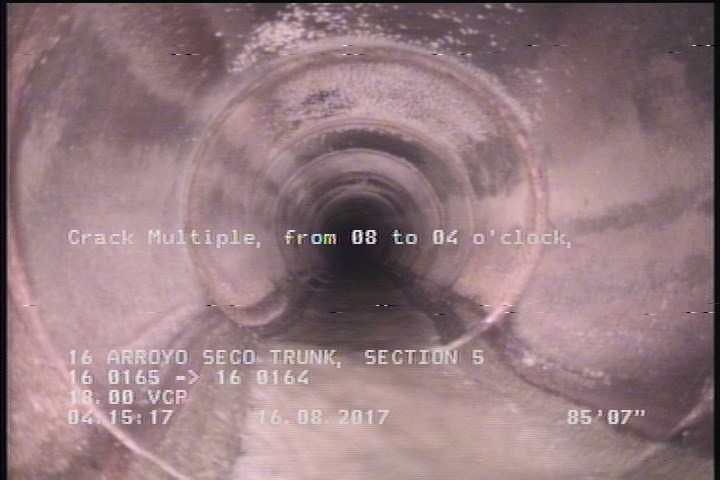

85.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

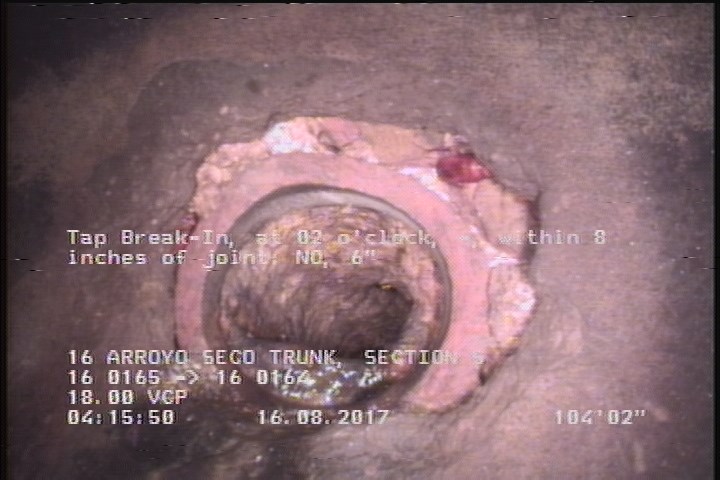

104.1 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 497.2 | CM | — |
| 10.4 | CL | — |
| 104.1 | TB | — |
| 497.3 | AMH | 16 0165 |
| 2 | SSS | — |
| 82.2 | CL | — |
| 0 | AMH | 16 0164 |
| 0 | MWL | — |
| 74.3 | CL | — |
| 85.6 | CM | — |
| 0 | MWM | — |
| 496 | SSS | — |
Properties (5)
- additional_info
- SC345544
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-16T04:09:59-07:00
- sewer_category
- Gravity
