Wastewater/Activity/PacpInspection/1.0Jun 30, 2017, 06:51 AM
B 1174_B 1173 _29062017_235213.mp4
- Date
- 06/29/2017
- W/O
- 640678
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01125
- PipeID
- P13494
- Time
- 11:51 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4634
- Sewer Name
- B JOINT OUTFALL B - UNIT 6H
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_640678_TV16072_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 1174
- Downstream MH
- B 1173
- Dir. of Survey
- Downstream
- Length Surveyed
- 100.3 ft.
- Total Length
- 100.3 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

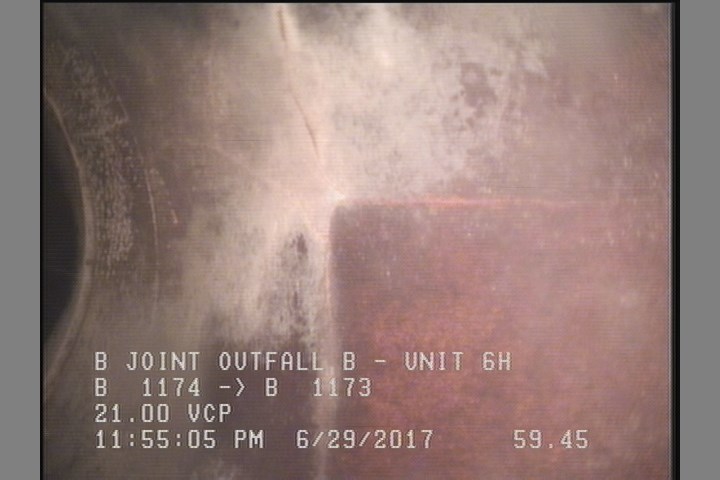

59.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: NO

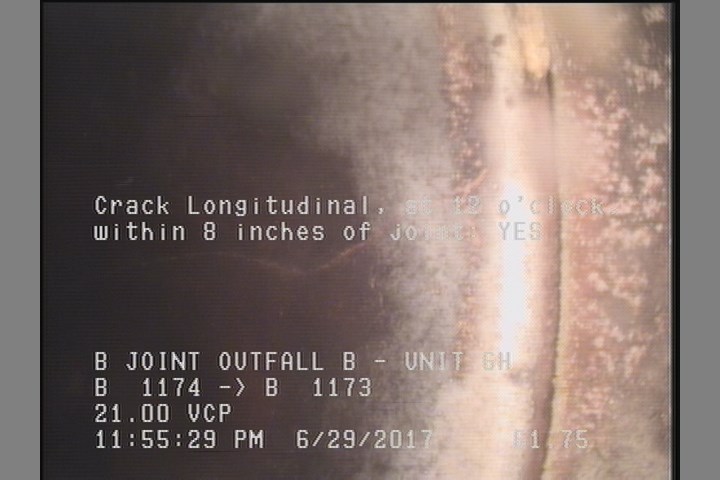

61.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

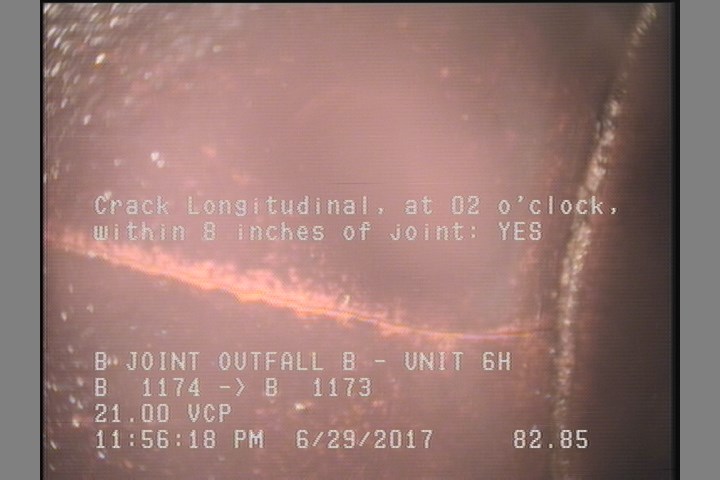

82.9 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 59.5 | CM | — |
| 0 | AMH | B 1174 |
| 61.8 | CL | — |
| 82.9 | CL | — |
| 0 | MWM | — |
| 100.3 | AMH | B 1173 |
Properties (5)
- additional_info
- SC345426
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-06-29T23:51:39-07:00
- sewer_category
- Gravity
