Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 09:04 AM

  • B 1129_B 1128_06072017_020437.mp4

Date
07/06/2017
W/O
640678
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01125
PipeID
P13169
Time
2:04 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4635
Sewer Name
B JOINT OUTFALL B - UNIT 6H
City
ALHAMBRA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
WO_640678_TV16072_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Width
22 in.
Upstream MH
B 1129
Downstream MH
B 1128
Dir. of Survey
Downstream
Length Surveyed
286.8 ft.
Total Length
286.8 ft.
Structural Index
3
Structural Quick
3J22
Structural Rating
163
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
168
Pipe schematic from manhole B 1129 to B 1128
MH: B 1129MH: B 1128downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 11290 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area4.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES12.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"16.4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES21.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start22.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"53.3 ft. RFB - Roots Fine Barrell, at 12 o'clock60.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"74.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"89.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"97.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"117.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"124.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"146.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"152.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"160.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"180.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"201.2 ft. RFL - Roots Fine Lateral, at 10 o'clock223.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"223.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES244.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"251.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"264.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"273.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"286.8 ft. AMH - Downstream Manhole, Survey Ends - B 1128286.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

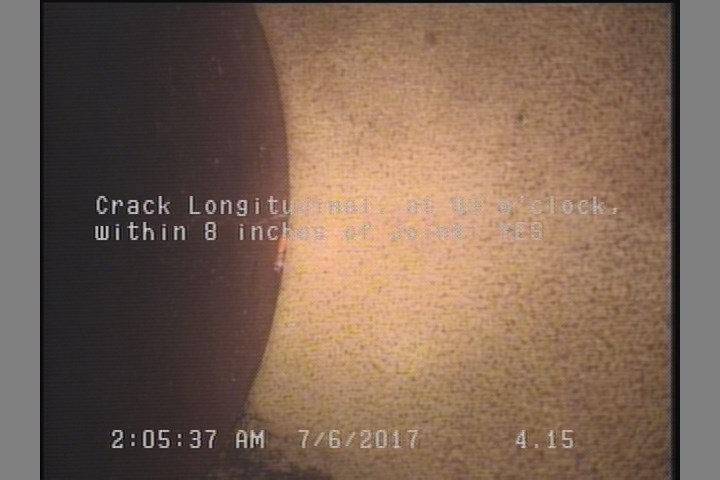

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    4.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

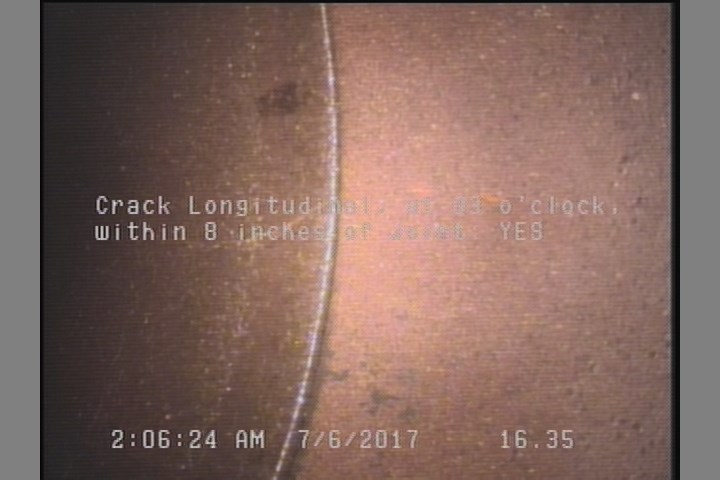

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    16.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

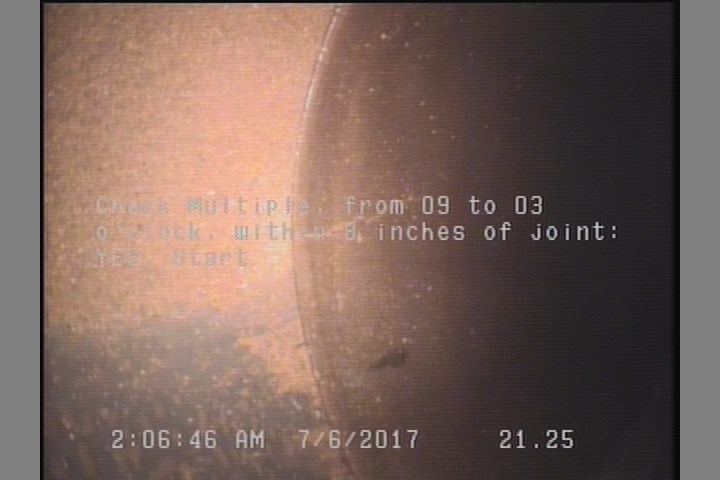

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    21.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

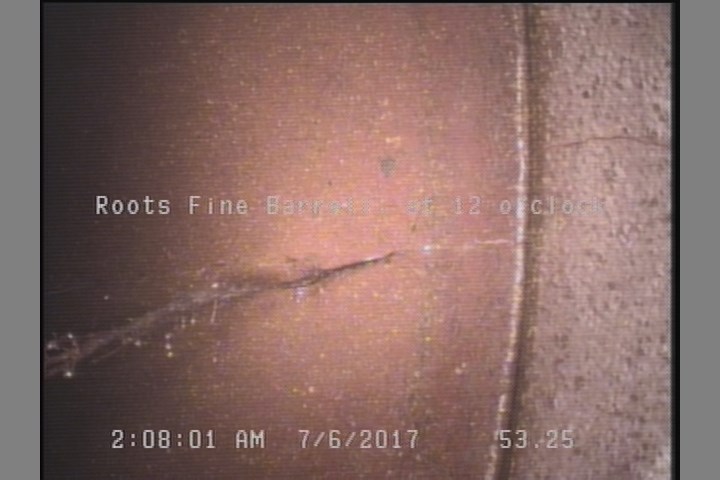

  • Roots Fine Barrell, at 12 o'clock

    53.3 ft. - Roots Fine Barrell, at 12 o'clock

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    223.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P13169Work order 640678

Observations (32)

DistanceCodeObservation
201.2TF—
152.6TFC—
124.7TFC—
197.1TFC—
0AMHB 1129
146.4TF—
264.4TF—
244.1TFC—
139.5TFC—
251.3TFC—
4.1CL—
0MWM—
53.3RFB—
201.2RFL—
21.3CM—
12.3TF—
0MWL—
16.4CL—
97.5TFC—
180.3TF—
286.8AMHB 1128
273.8TF—
223.6TFA—
60.4TF—
22.4TFC—
74.8TFC—
286.8CM—
193.8TF—
223.6DAGS—
117.7TFC—
160.7TFC—
89.9TFC—

Properties (5)

additional_info
SC345428
custom_field_two
3
customer
LACSD
datetime
2017-07-06T02:04:18-07:00
sewer_category
Gravity
