Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 30, 2017, 08:26 AM

  • B 1169_B 1168 _30062017_012632.mp4

Date
06/30/2017
W/O
640678
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01125
PipeID
P13489
Time
1:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4634
Sewer Name
B JOINT OUTFALL B - UNIT 6H
City
SOUTH PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
WO_640678_TV16072_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 1168
Downstream MH
B 1169
Dir. of Survey
Upstream
Length Surveyed
256.5 ft.
Total Length
256.5 ft.
Structural Index
2
Structural Quick
2111
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 1168 to B 1169
MH: B 1168MH: B 1169upstream0 ft. AMH - Upstream Manhole, Survey Ends - B 116926.4 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES210 ft. CC - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES256.5 ft. AMH - Downstream Manhole, Survey Begins - B 1168256.5 ft. MWL - Water Level, 5 %of cross sectional area256.5 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

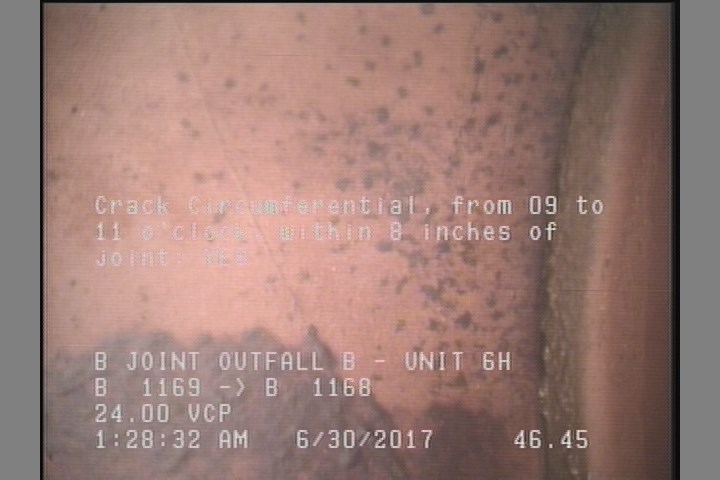

  • Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

    46.5 ft. - Crack Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

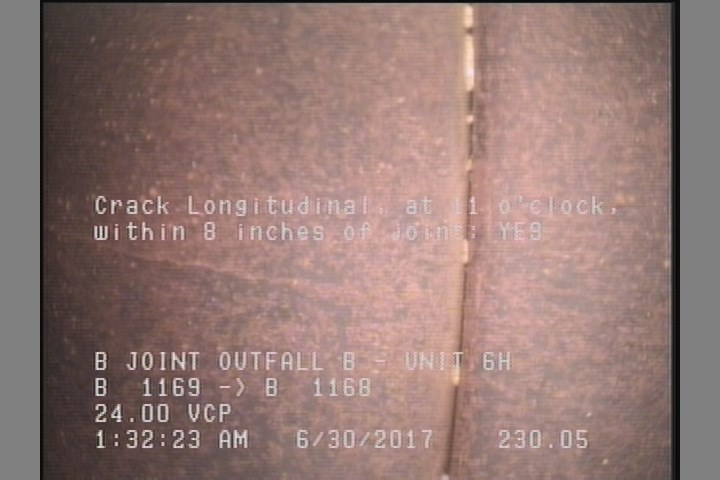

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    230.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

All inspections of P13489Work order 640678

Observations (6)

DistanceCodeObservation
0AMHB 1168
256.5AMHB 1169
0MWL—
0MWM—
46.5CC—
230.1CL—

Properties (5)

additional_info
SC345426
custom_field_two
4
customer
LACSD
datetime
2017-06-30T01:26:11-07:00
sewer_category
Gravity
