Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 30, 2017, 07:44 AM

  • B 1171_B 1528 _30062017_004508.mp4

Date
06/30/2017
W/O
640678
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01125
PipeID
P26281
Time
12:44 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4634
Sewer Name
B JOINT OUTFALL B - UNIT 6H
City
SOUTH PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
WO_640678_TV16072_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 1171
Downstream MH
B 1528
Dir. of Survey
Downstream
Length Surveyed
196.1 ft.
Total Length
196.2 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole B 1171 to B 1528
MH: B 1171MH: B 1528downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 11710 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area3.6 ft. RFJ - Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YES30 ft. RFJ - Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YES88.7 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES101.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES120.1 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES172.9 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES196.2 ft. AMH - Downstream Manhole, Survey Ends - B 1528196.2 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE

Observation photos (6)

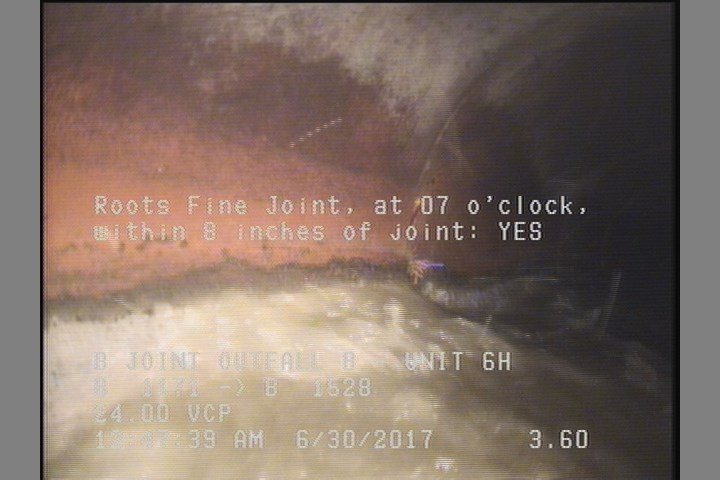

  • Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YES

    3.6 ft. - Roots Fine Joint, at 07 o'clock, within 8 inches of joint: YES

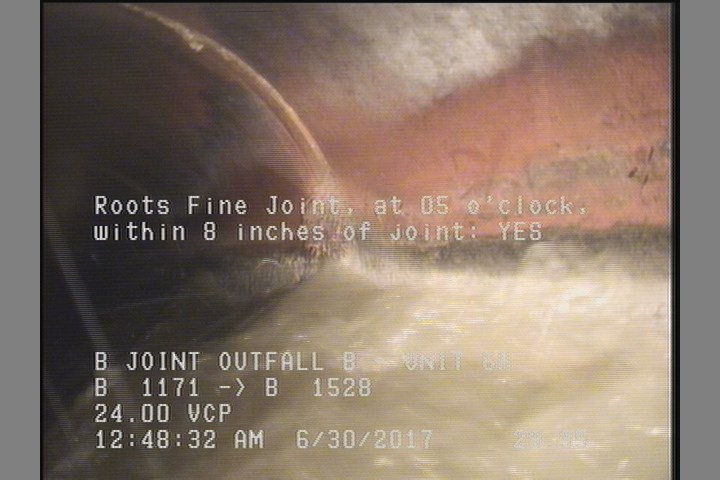

  • Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YES

    30 ft. - Roots Fine Joint, at 05 o'clock, within 8 inches of joint: YES

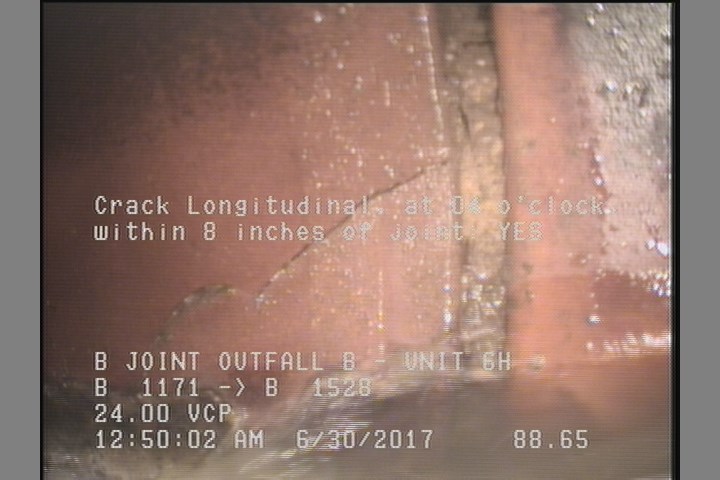

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    88.7 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

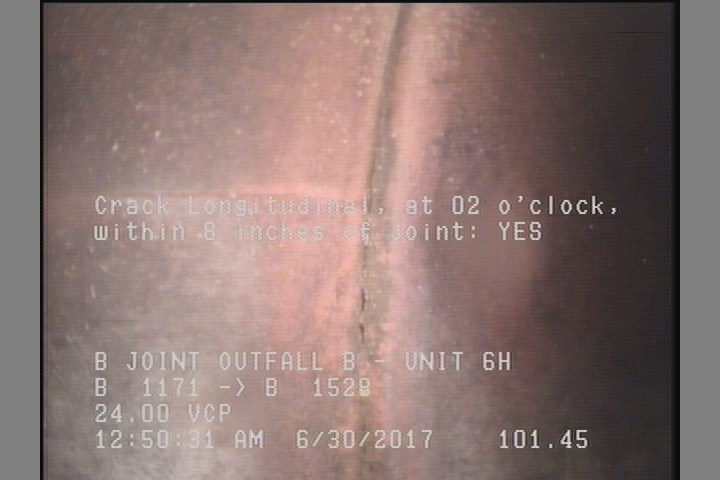

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    101.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

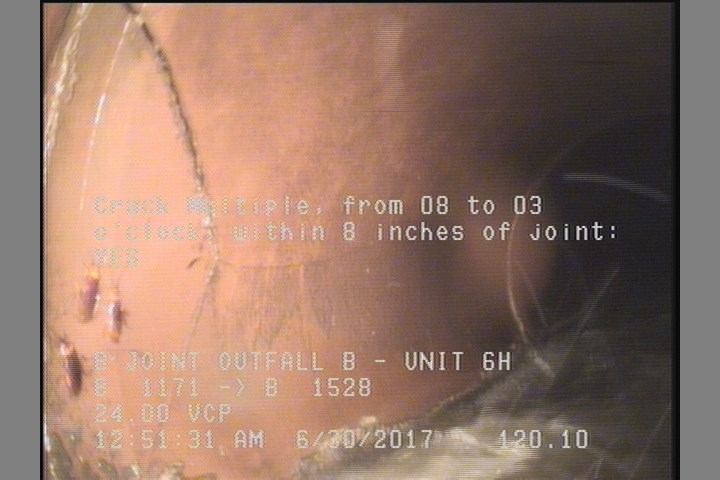

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    120.1 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

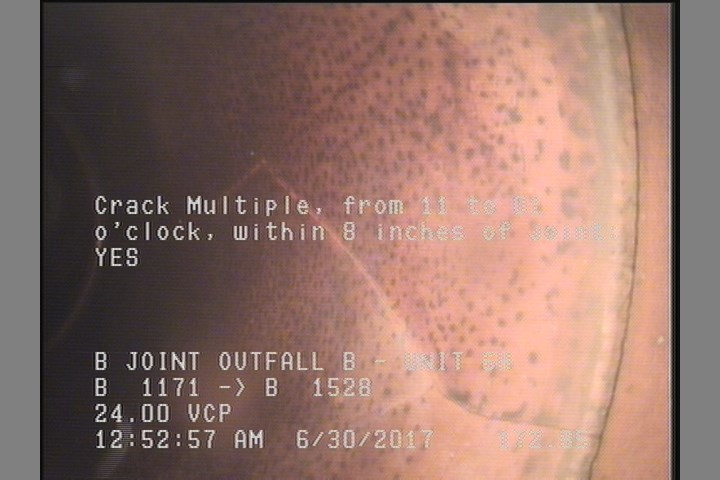

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    172.9 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P26281Work order 640678

Observations (11)

DistanceCodeObservation
30RFJ—
196.2AMHB 1528
3.6RFJ—
0AMHB 1171
0MWL—
101.5CL—
196.2MGOCONNECTION AT MH 9 ACTIVE
120.1CM—
88.7CL—
0MWM—
172.9CM—

Properties (5)

additional_info
SC345426
custom_field_two
4
customer
LACSD
datetime
2017-06-30T00:44:52-07:00
sewer_category
Gravity
