Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2017, 05:24 AM
Date
08/08/2017
W/O
646534
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00366
PipeID
P05028
Time
10:24 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4679
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Routine Assessment
Project
WO_646534_TV03011_JUL2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
03 0010
Downstream MH
03 0009
Dir. of Survey
Downstream
Length Surveyed
267.7 ft.
Total Length
267.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 03 0010 to 03 0009
MH: 03 0010MH: 03 0009downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 00103 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start26.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"72.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"117.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"167.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"223.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"267.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish267.7 ft. AMH - Downstream Manhole, Survey Ends - 03 0009

Observation photos (1)

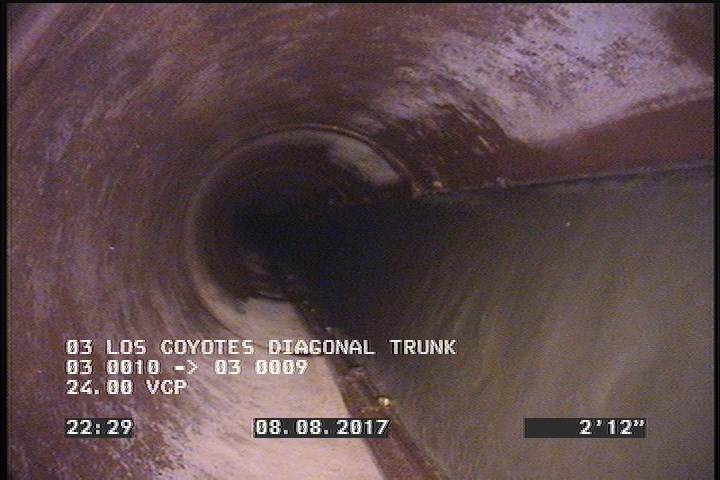

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P05028Work order 646534

Observations (11)

DistanceCodeObservation
167.6TB—
117.1TBA—
0MWM—
267.7DAGS—
26.9TB—
72.1TB—
267.7AMH03 0009
0MWL—
223.3TB—
0AMH03 0010
3DAGS—

Properties (5)

additional_info
SC345617
custom_field_two
4
customer
LACSD
datetime
2017-08-08T22:24:19-07:00
sewer_category
Gravity
