Wastewater/Activity/PacpInspection/1.0Jul 28, 2017, 10:18 AM
03 0050_03 0049._11082017_110804.mp4
- Date
- 07/28/2017
- W/O
- 646534
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00366
- PipeID
- P05070
- Time
- 3:18 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3994
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- V
- Project
- WO_646534_TV03011_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0049
- Downstream MH
- 03 0050
- Dir. of Survey
- Upstream
- Length Surveyed
- 33.1 ft.
- Total Length
- 33.1 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

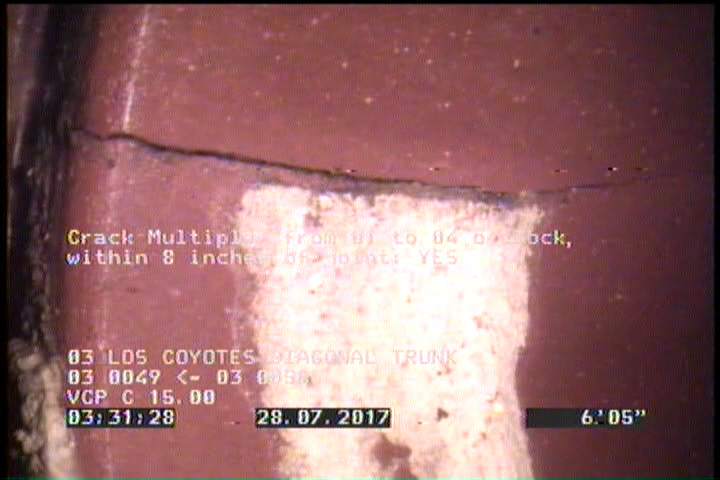

6.4 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: YES

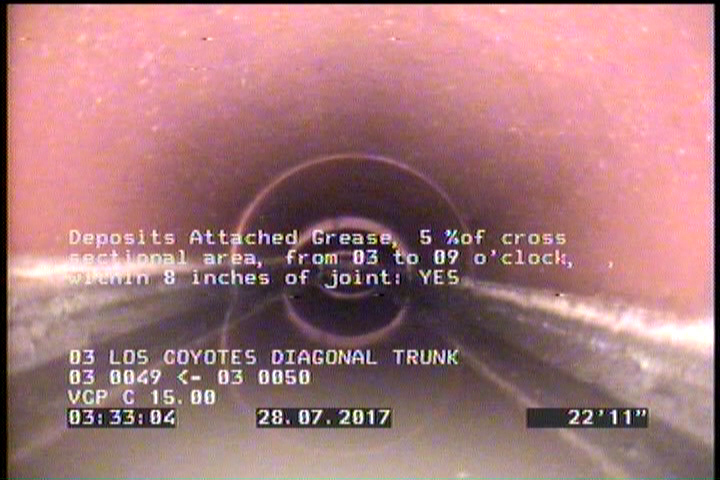

22.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

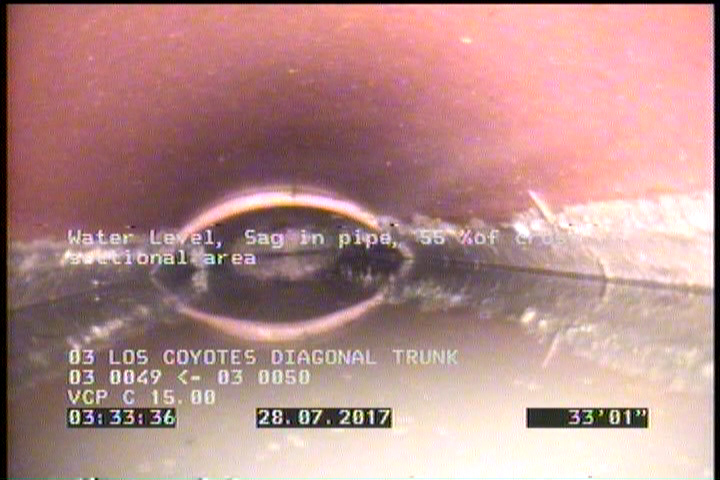

33.1 ft. - Water Level, Sag in pipe, 55 %of cross sectional area
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 21.5 | RML | — |
| 21.5 | TF | — |
| 33.1 | MWLS | — |
| 33.1 | MSA | COMPLETED REVERSE |
| 22.9 | DAGS | — |
| 6.4 | CM | — |
| 0 | AMH | 03 0049 |
| 0 | MWL | — |
Properties (4)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-28T03:18:44-07:00
- sewer_category
- Gravity
