Wastewater/Activity/PacpInspection/1.0Aug 9, 2017, 09:22 AM
- Date
- 08/09/2017
- W/O
- 646534
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00366
- PipeID
- P05023
- Time
- 2:22 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4679
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0004
- Downstream MH
- 03 0005
- Dir. of Survey
- Upstream
- Length Surveyed
- 288.7 ft.
- Total Length
- 288.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

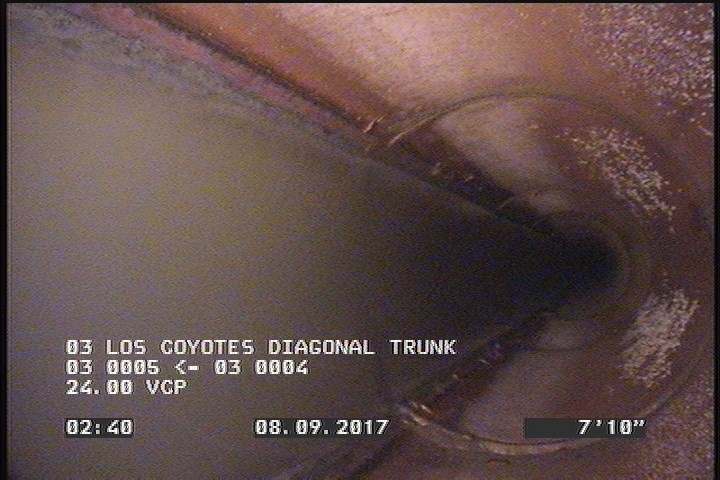

7.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 288.7 | AMH | 03 0005 |
| 0 | MWM | — |
| 7.8 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 03 0004 |
| 288.7 | DAGS | — |
Properties (5)
- additional_info
- SC345617
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-09T02:22:00-07:00
- sewer_category
- Gravity
