Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 07:02 PM

  • B 0219_B 1524_9142017_121803.mp4

Date
09/14/2017
W/O
0662506
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00084
PipeID
P26183
Time
12:02 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7515
Sewer Name
B JOINT OUTFALL B - UNIT 2A
City
SOUTH EL MONTE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
32
Purpose
Maintenance Related
Project
20170914SHO_JOINT_OUTFALL_B_UNIT_2A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
B 0219
Downstream MH
B 1524
Dir. of Survey
Downstream
Length Surveyed
4 ft.
Total Length
4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole B 0219 to B 1524
MH: B 0219MH: B 1524downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12150 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MWL - Water Level, 75 %of cross sectional area4 ft. MSA - Survey Abandoned - ZOOMED D/S4 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

Observation photos (2)

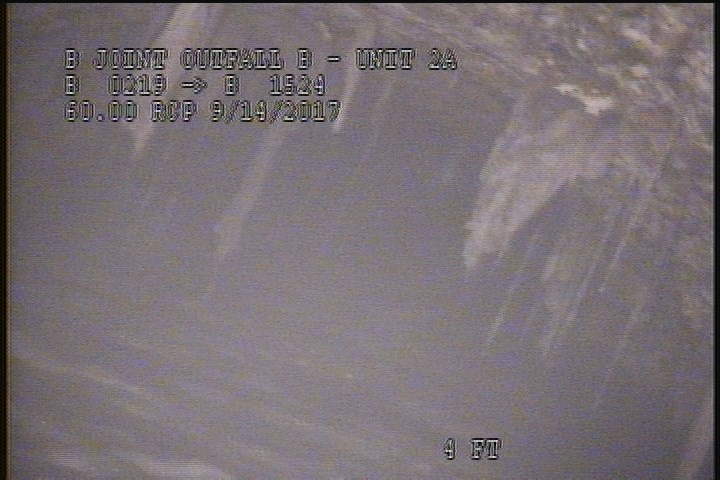

  • Survey Abandoned - ZOOMED D/S

    4 ft. - Survey Abandoned - ZOOMED D/S

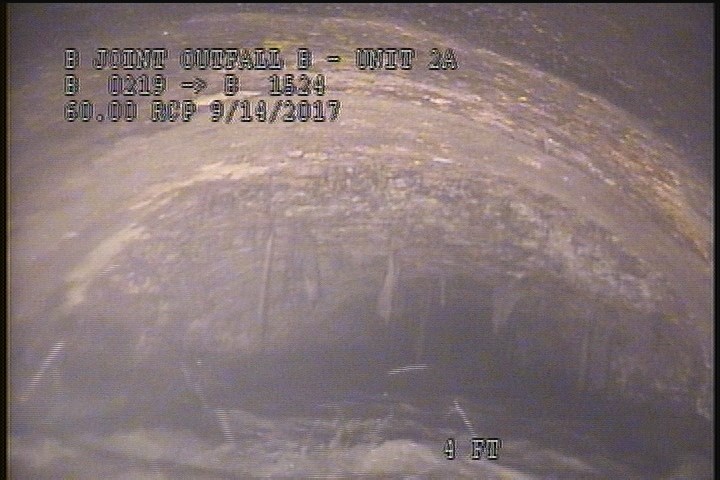

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

    4 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P26183Work order 0662506

Observations (5)

DistanceCodeObservation
0AMH1215
4MSAZOOMED D/S
0MWM—
4SAP—
0MWL—

Properties (5)

additional_info
ZOOMING AS FAR AS WE CAN D/S FOR ANY HOLES OR MISSING PIPE
custom_field_three
ZOOMED D/S
custom_field_two
5
customer
LACSD
datetime
2017-09-14T12:02:45-07:00
