Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 04:29 PM

  • A 0636_STACK_9142017_095603.mp4

Date
09/14/2017
W/O
0661935
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00316
PipeID
P07841
Time
9:29 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7514
Sewer Name
A JOA-1A DISTRICT 21 INTERCEPTOR
City
CITY OF INDUSTRY
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
34
Purpose
Maintenance Related
Project
20170914SHO_JOA1A_DISTRICT_21_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
45 in.
Upstream MH
A 0636
Downstream MH
STACK
Dir. of Survey
Downstream
Length Surveyed
0 ft.
Total Length
0 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 0636 to STACK
MH: A 0636MH: STACKdownstream0 ft. MGO - General Observation - SHAFT0 ft. MGO - General Observation - SOUTH WALL0 ft. AMH - Upstream Manhole, Survey Begins - 09450 ft. MGO - General Observation - EAST WALL0 ft. MGO - General Observation - PULL RING0 ft. MGO - General Observation - RISER0 ft. MGO - General Observation - NORTH WALL0 ft. MGO - General Observation - WEST WALL0 ft. MGO - General Observation - ROOF0 ft. MGO - General Observation - CONE0 ft. MGO - General Observation - FRAME

Observation photos (10)

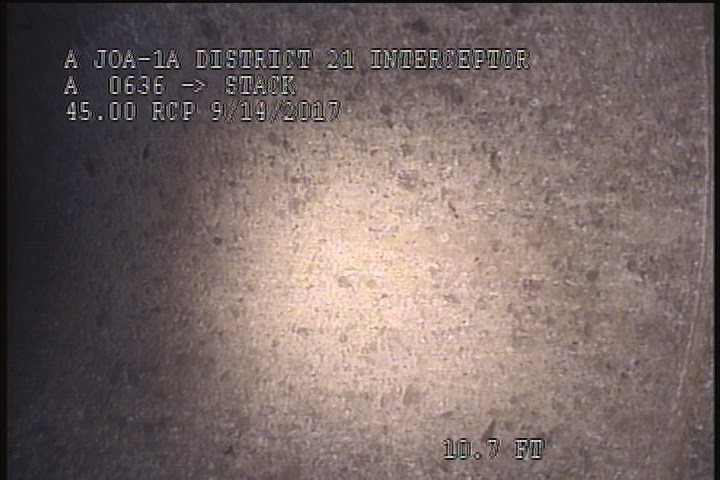

  • General Observation - SHAFT

    0 ft. - General Observation - SHAFT

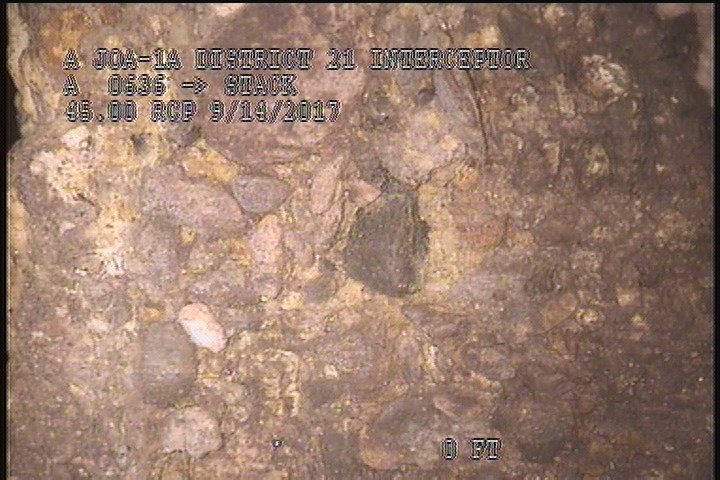

  • General Observation - SOUTH WALL

    0 ft. - General Observation - SOUTH WALL

  • General Observation - EAST WALL

    0 ft. - General Observation - EAST WALL

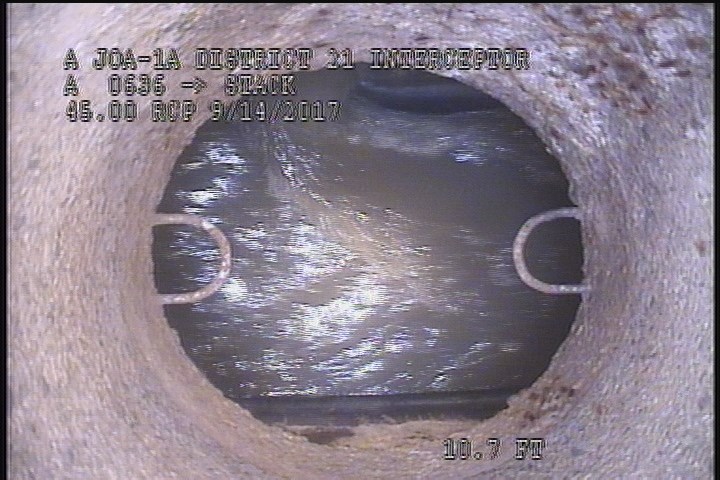

  • General Observation - PULL RING

    0 ft. - General Observation - PULL RING

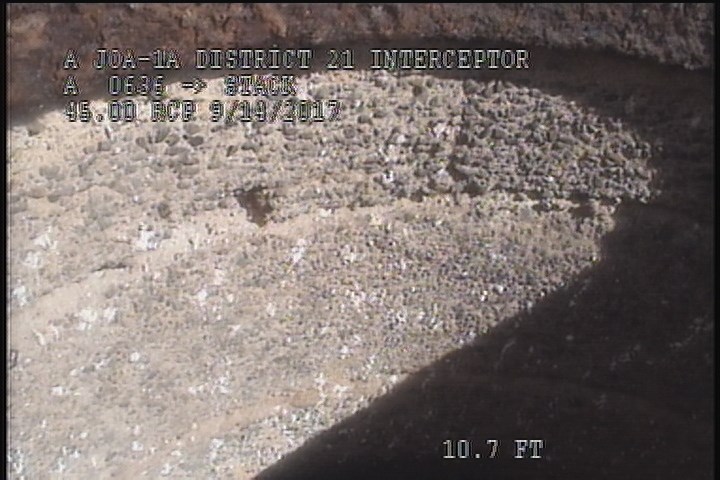

  • General Observation - RISER

    0 ft. - General Observation - RISER

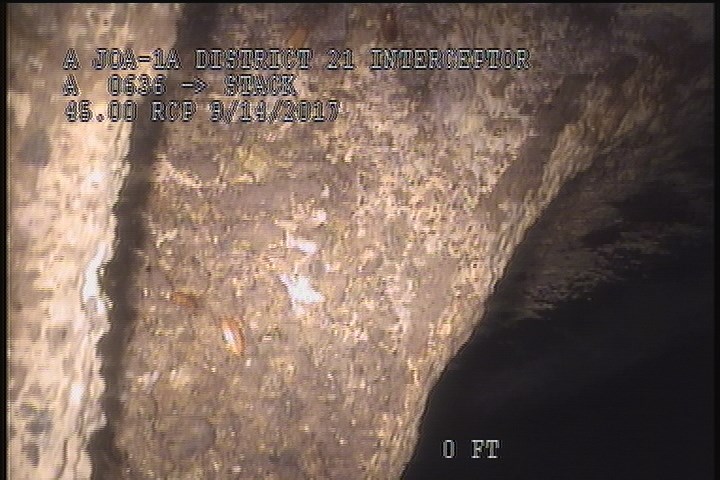

  • General Observation - NORTH WALL

    0 ft. - General Observation - NORTH WALL

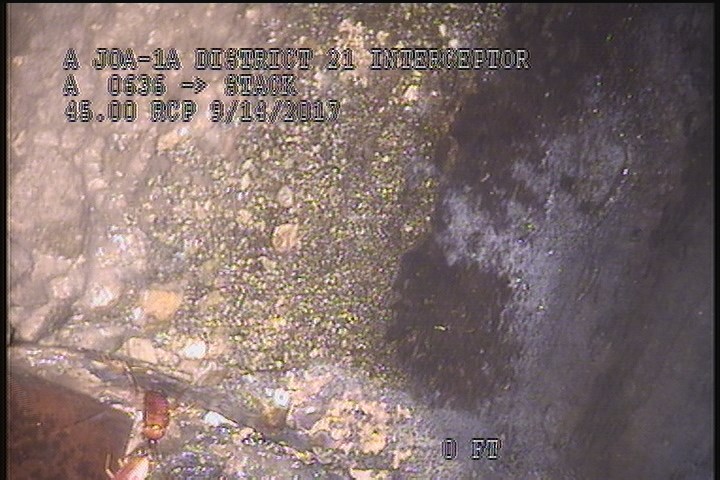

  • General Observation - WEST WALL

    0 ft. - General Observation - WEST WALL

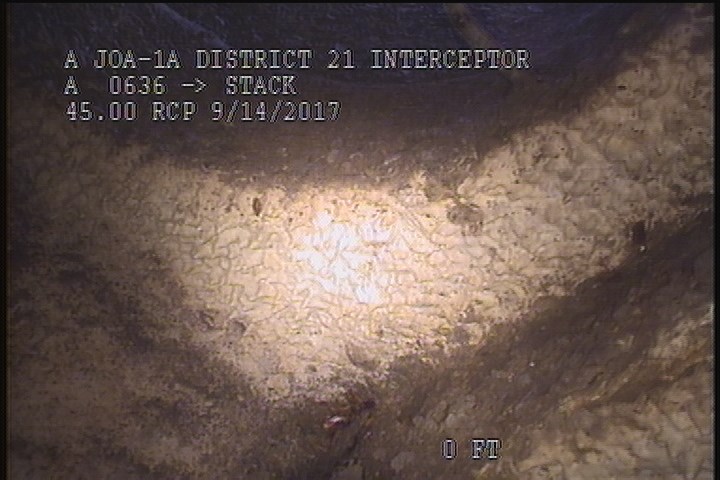

  • General Observation - ROOF

    0 ft. - General Observation - ROOF

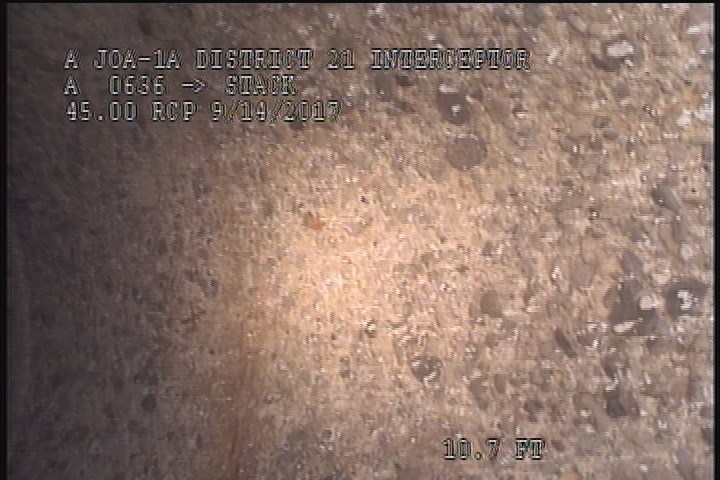

  • General Observation - CONE

    0 ft. - General Observation - CONE

  • General Observation - FRAME

    0 ft. - General Observation - FRAME

All inspections of P07841Work order 0661935

Observations (11)

DistanceCodeObservation
0MGOSHAFT
0MGOSOUTH WALL
0AMH0945
0MGOEAST WALL
0MGOPULL RING
0MGORISER
0MGONORTH WALL
0MGOWEST WALL
0MGOROOF
0MGOCONE
0MGOFRAME

Properties (5)

additional_info
MH TOPSIDE INSPECTION
custom_field_three
MH INSPECTION
custom_field_two
5
customer
LACSD
datetime
2017-09-14T09:29:11-07:00
