Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2017, 11:23 AM
Date
09/14/2017
W/O
0646302
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00838
Time
4:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0643
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20170911MDM_JOINT_OUTFALL_G_UNIT_8
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
G 0157
Downstream MH
G 0156
Dir. of Survey
Downstream
Length Surveyed
178.7 ft.
Total Length
178.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0157 to G 0156
MH: G 0157MH: G 0156downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - TILES 100% IN PLACE START 8:0 TO 4:00 UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 90% START 8:00 TO 4:0058 ft. MGO - General Observation - MAG COAT 95% START85.1 ft. MGO - General Observation - ZOOM TO MH #G156178.1 ft. MGO - General Observation - MAG COAT 95: FINISH178.1 ft. MGO - General Observation - TILES IN PLACE 100% FINISH178.7 ft. AMH - Downstream Manhole, Survey Ends - 5:55AM

Observation photos (5)

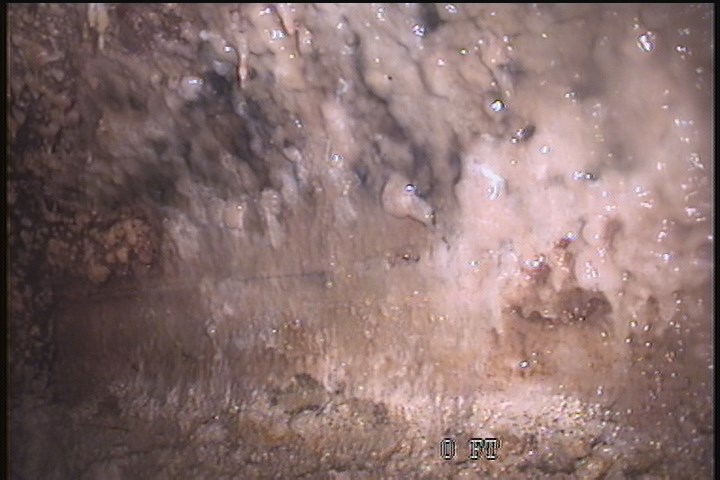

  • General Observation - TILES 100% IN PLACE START 8:0 TO 4:00 UNDER MAG COAT

    2 ft. - General Observation - TILES 100% IN PLACE START 8:0 TO 4:00 UNDER MAG COAT

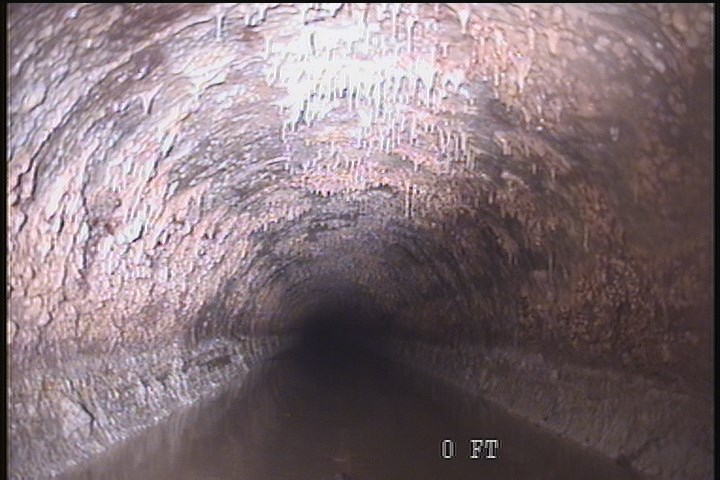

  • General Observation - MAG COAT 90% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 90% START 8:00 TO 4:00

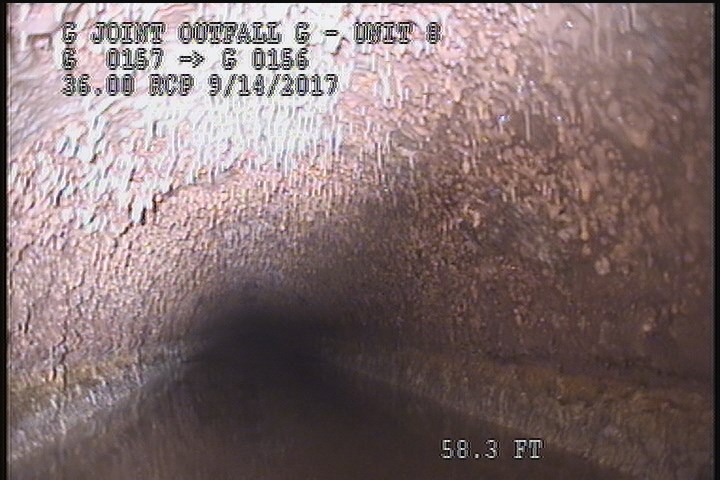

  • General Observation - MAG COAT 95% START

    58 ft. - General Observation - MAG COAT 95% START

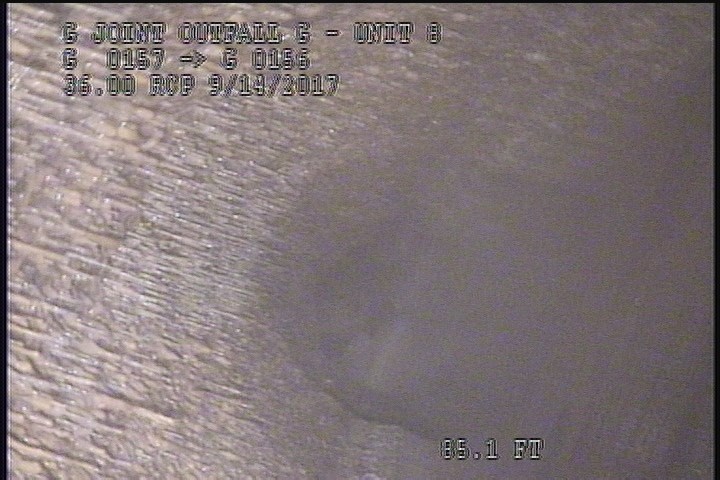

  • General Observation - ZOOM TO MH #G156

    85.1 ft. - General Observation - ZOOM TO MH #G156

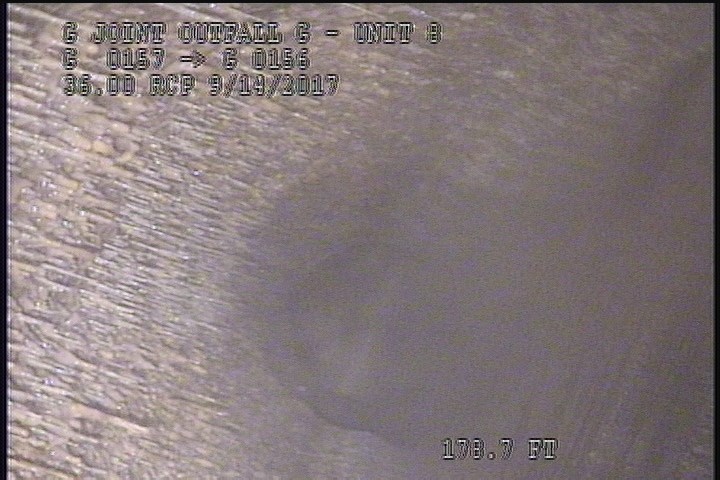

  • Downstream Manhole, Survey Ends - 5:55AM

    178.7 ft. - Downstream Manhole, Survey Ends - 5:55AM

All inspections of P00838Work order 0646302

Observations (10)

DistanceCodeObservation
0AMH5:30AM
2MGOTILES 100% IN PLACE START 8:0 TO 4:00 UNDER MAG COAT
2MGOMAG COAT 90% START 8:00 TO 4:00
178.7AMH5:55AM
178.1MGOMAG COAT 95: FINISH
0MWM—
0MWL—
58MGOMAG COAT 95% START
85.1MGOZOOM TO MH #G156
178.1MGOTILES IN PLACE 100% FINISH

Properties (4)

custom_field_three
TILE LINE-TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-14T04:23:09-07:00
