Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2017, 10:51 AM
Date
09/13/2017
W/O
0646302
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00846
Time
3:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0643
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20170911MDM_JOINT_OUTFALL_G_UNIT_8
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
G 0165
Downstream MH
G 0164
Dir. of Survey
Downstream
Length Surveyed
347.7 ft.
Total Length
347.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole G 0165 to G 0164
MH: G 0165MH: G 0164downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - TILES 100% IN PLACE START 8:00 TO 4:002 ft. MGO - General Observation - MAG COAT WITH THIN GREASE COAT 85% START 8:00 TO 4:0014.4 ft. MGO - General Observation - OLD MAG COAT WITH THIN GREASE COAT; HOT SEWAGE60.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS70.3 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - ROCKS87.6 ft. MGO - General Observation - MAG COAT WITH THIN GREASE COAT 90% START214.4 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT347.3 ft. MGO - General Observation - MAG COAT 90% FINISH347.3 ft. MGO - General Observation - TILES 100% IN PLACE FINISH347.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active347.7 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (4)

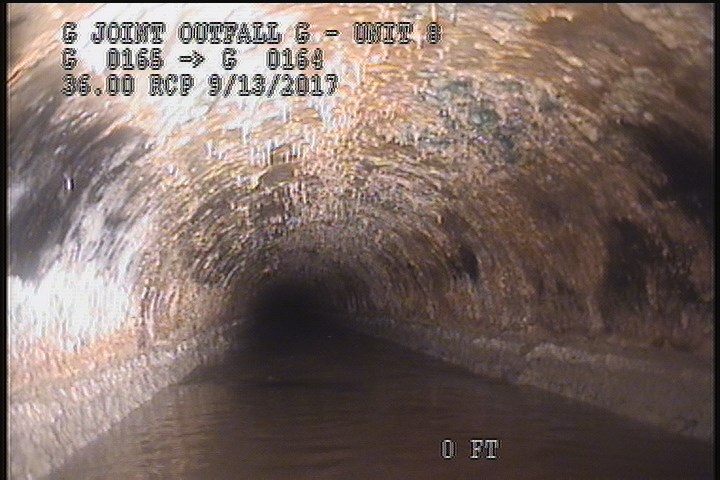

  • General Observation - TILES 100% IN PLACE START 8:00 TO 4:00

    2 ft. - General Observation - TILES 100% IN PLACE START 8:00 TO 4:00

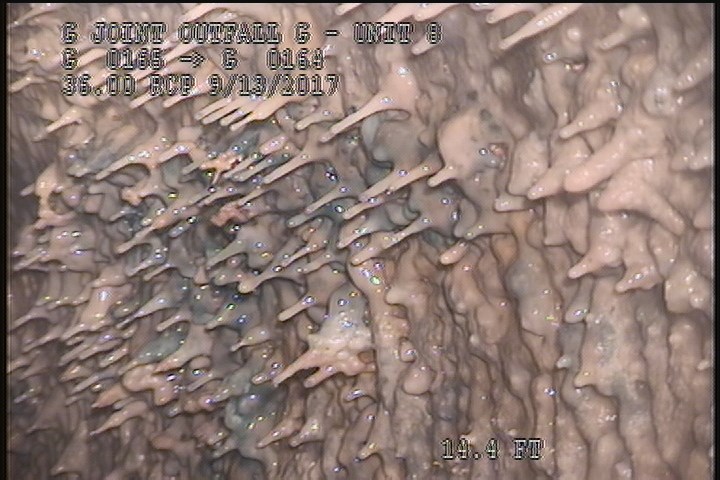

  • General Observation - OLD MAG COAT WITH THIN GREASE COAT; HOT SEWAGE

    14.4 ft. - General Observation - OLD MAG COAT WITH THIN GREASE COAT; HOT SEWAGE

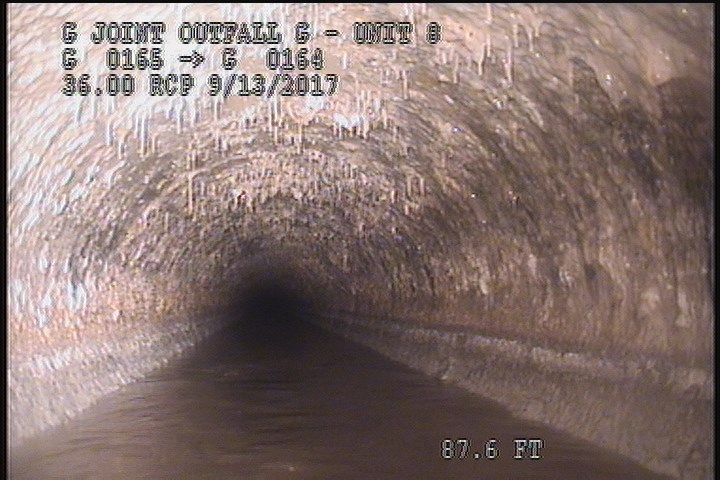

  • General Observation - MAG COAT WITH THIN GREASE COAT 90% START

    87.6 ft. - General Observation - MAG COAT WITH THIN GREASE COAT 90% START

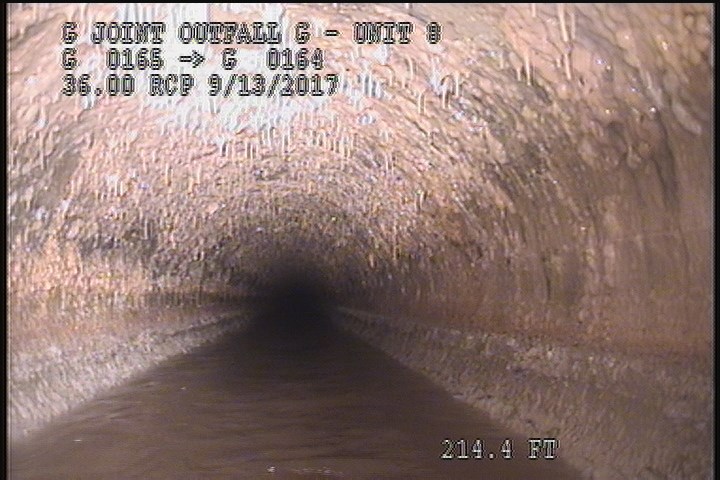

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    214.4 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

All inspections of P00846Work order 0646302

Observations (16)

DistanceCodeObservation
87.6MGOMAG COAT WITH THIN GREASE COAT 90% START
70.3DSZROCKS
0MWL—
347.3MGOMAG COAT 90% FINISH
0MGOConn. @ Mh, 3 O' Clock. OPEN
347.3MGOTILES 100% IN PLACE FINISH
347.3MGOConn. @ Mh, 3 O' Clock. Active
2MGOTILES 100% IN PLACE START 8:00 TO 4:00
0AMH3:55AM
2MGOMAG COAT WITH THIN GREASE COAT 85% START 8:00 TO 4:00
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
214.4MGOTILES 100% IN PLACE UNDER MAG COAT
60.6DSZROCKS
347.7AMH4:30AM
14.4MGOOLD MAG COAT WITH THIN GREASE COAT; HOT SEWAGE

Properties (4)

custom_field_three
TILE LINE-TILES 100% IN PLACE
custom_field_two
3
customer
LACSD
datetime
2017-09-13T03:51:35-07:00
