Wastewater/Activity/PacpInspection/1.0May 10, 2017, 07:17 AM
H 0788_H 0787 _20170510_003627.mp4
- Date
- 05/10/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P11196
- Time
- 12:17 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4521
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- SAN DIMAS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0788
- Downstream MH
- H 0787
- Dir. of Survey
- Downstream
- Length Surveyed
- 85.4 ft.
- Total Length
- 85.4 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4200
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

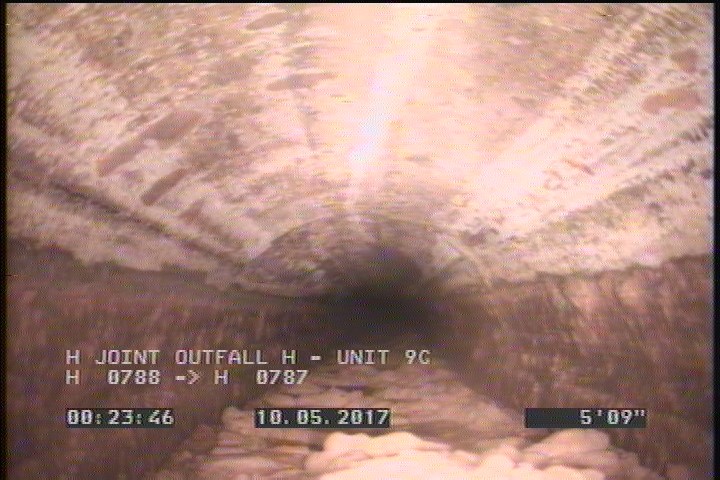

5.8 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

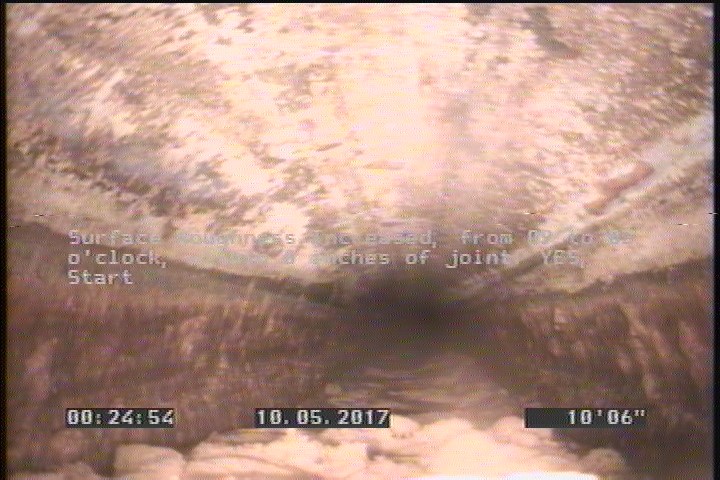

10.5 ft. - Surface Roughness Increased, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

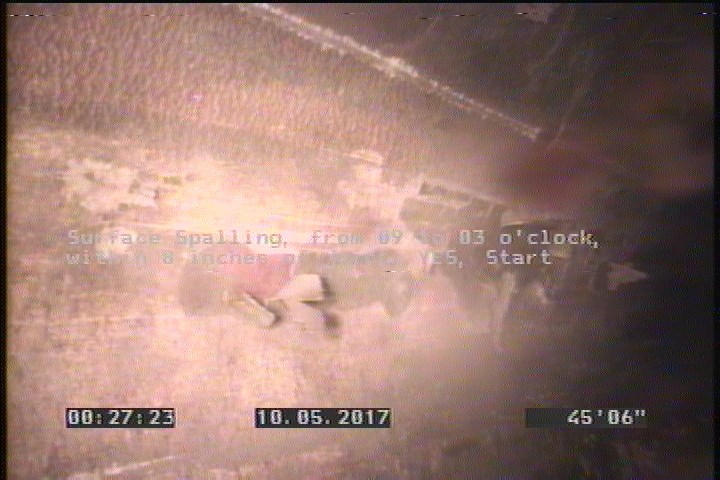

45.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

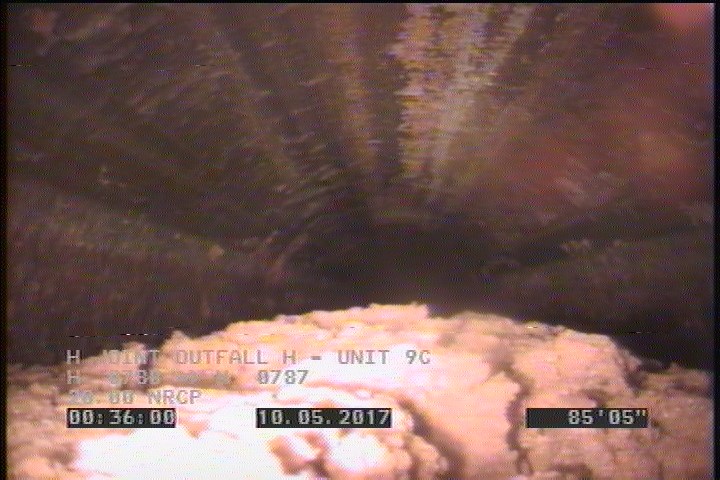

85.4 ft. - Survey Abandoned - SEVERE GREASE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | H 0788 |
| 5.8 | DAGS | — |
| 85.4 | SSS | — |
| 10.5 | SRI | — |
| 0 | MGO | HEAVY MUDD IN MH |
| 85.4 | SRI | — |
| 45.5 | SSS | — |
| 85.4 | MSA | SEVERE GREASE |
| 85.4 | DAGS | — |
Properties (5)
- additional_info
- SC340735
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-10T00:17:03-07:00
- sewer_category
- Gravity
