Wastewater/Activity/PacpInspection/1.0May 2, 2017, 08:51 AM
H 0787_H 0786A _20170502_050043.mp4
- Date
- 05/02/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P23089
- Time
- 1:51 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4519
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0786A
- Downstream MH
- H 0787
- Dir. of Survey
- Upstream
- Length Surveyed
- 762.8 ft.
- Total Length
- 762.8 ft.
- Structural Index
- 1
- Structural Quick
- 1\00
- Structural Rating
- 146
- O&M Index
- 3
- O&M Quick
- 3]00
- O&M Rating
- 456
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 602
Observation photos (2)

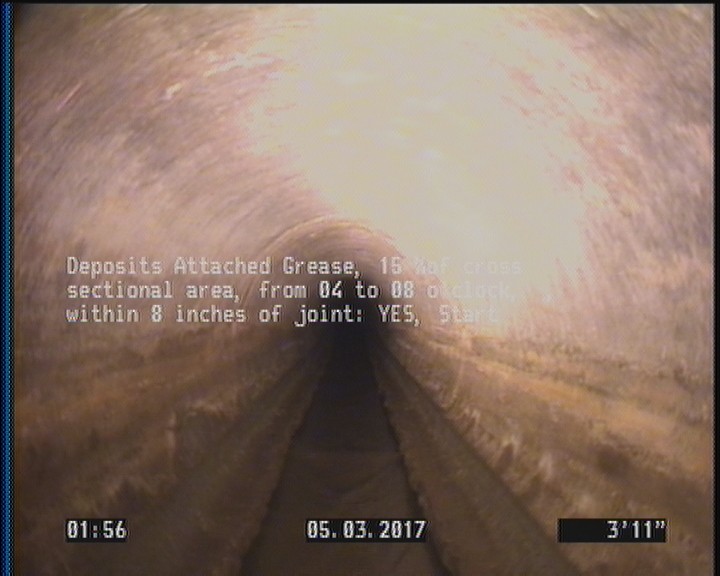

3.9 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

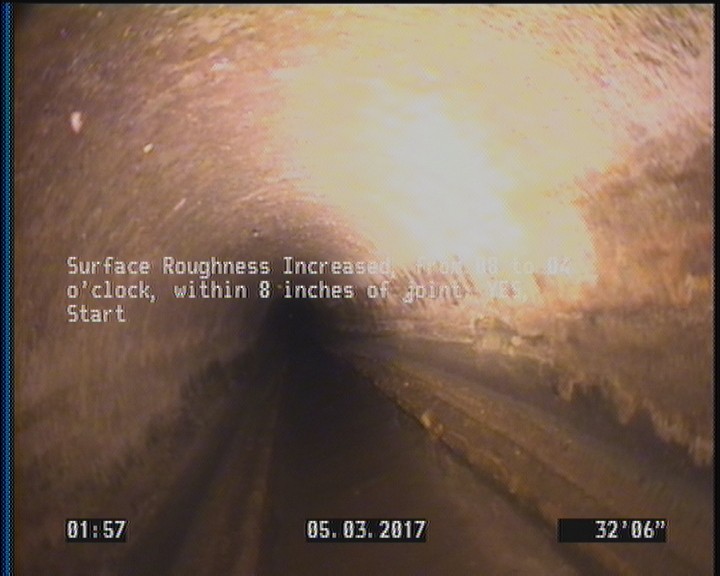

32.5 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 762.8 | SRI | — |
| 762.8 | MSA | GREASE |
| 0 | MWL | — |
| 0 | AMH | H 0786A |
| 32.5 | SRI | — |
| 762.8 | DAGS | — |
| 0 | MWM | — |
| 3.9 | DAGS | — |
| 0 | MGO | — |
Properties (5)
- additional_info
- SC340733
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-05-02T01:51:04-07:00
- sewer_category
- Gravity
