Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 09:41 PM
H 0794_H 0793 _20170427_013155.mp4
- Date
- 04/20/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P11202
- Time
- 2:41 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4516
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0794
- Downstream MH
- H 0793
- Dir. of Survey
- Downstream
- Length Surveyed
- 1477.2 ft.
- Total Length
- 1477.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

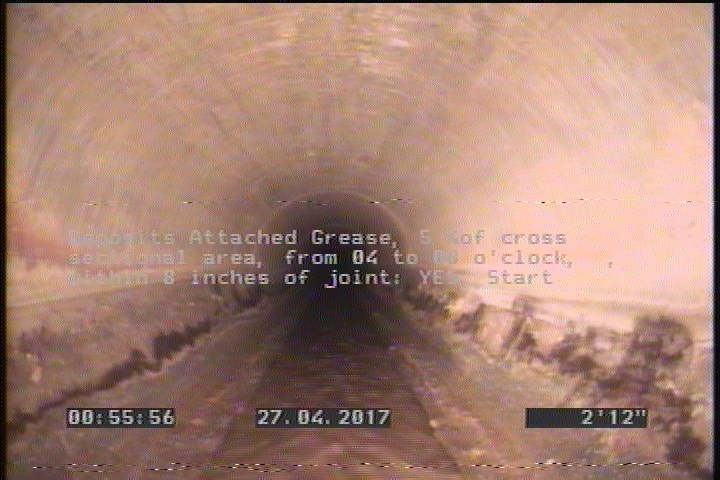

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

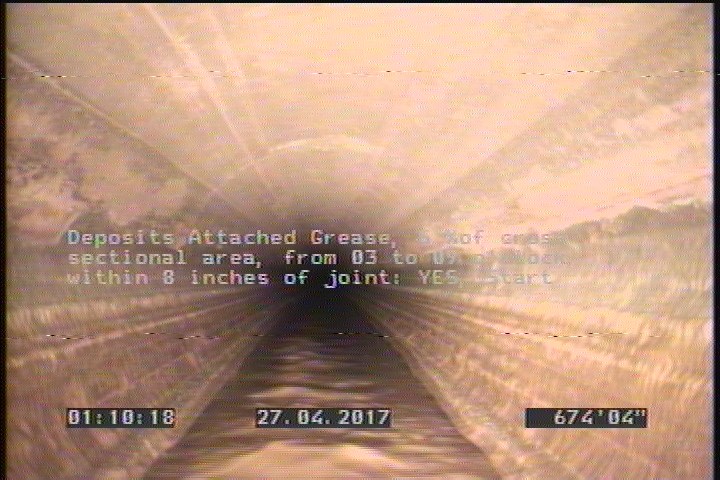

674.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 3 | DAGS | — |
| 1477.2 | DAGS | — |
| 674.3 | DAGS | — |
| 0 | AMH | H 0794 |
| 674.3 | DAGS | — |
| 1477.2 | MSA | CABLE MAXED OUT |
Properties (5)
- additional_info
- SC340730
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-04-20T14:41:39-07:00
- sewer_category
- Gravity
