Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 12:04 PM

  • G 0181_G 0180_9112017_061046.mp4

Date
09/11/2017
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P01086
Time
5:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0639
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
20170911MDM_JOINT_OUTFALL_G_UNIT_8
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
G 0181
Downstream MH
G 0180
Dir. of Survey
Downstream
Length Surveyed
100.2 ft.
Total Length
100.2 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
5121
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole G 0181 to G 0180
MH: G 0181MH: G 0180downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 90 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 6 O' Clock. OPEN STOPLOG IN PLACE0 ft. AMH - Upstream Manhole, Survey Begins - 6:10AM0 ft. MWL - Water Level, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 21" VCP93.3 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE100 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish100.2 ft. AMH - Downstream Manhole, Survey Ends - 6:25AM

Observation photos (3)

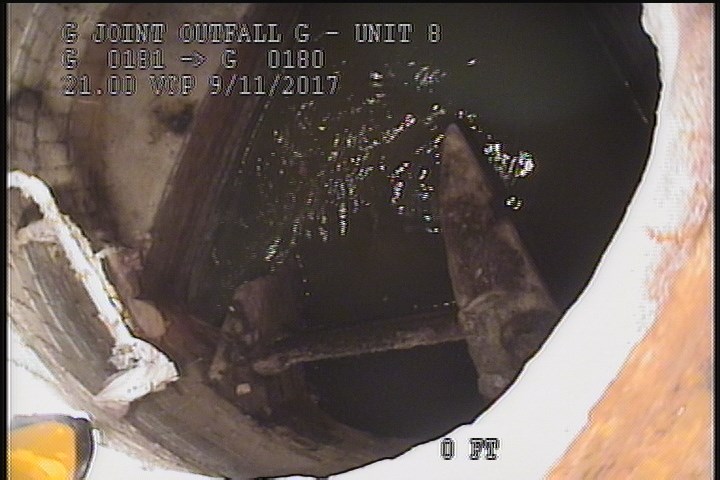

  • General Observation - Conn. @ Mh, 6 O' Clock. OPEN STOPLOG IN PLACE

    0 ft. - General Observation - Conn. @ Mh, 6 O' Clock. OPEN STOPLOG IN PLACE

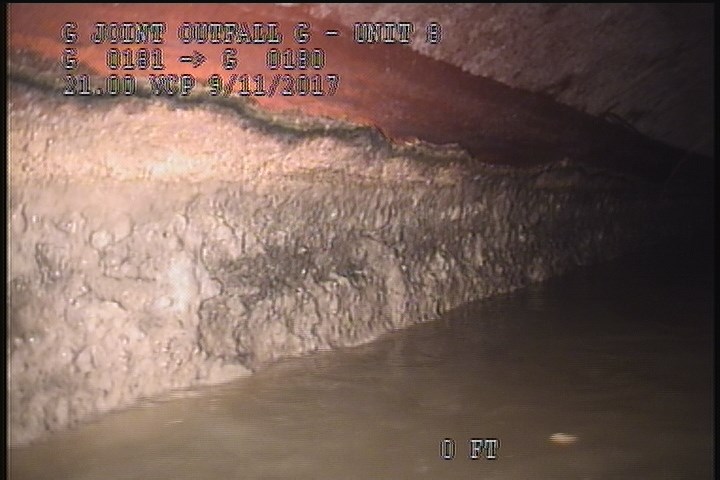

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

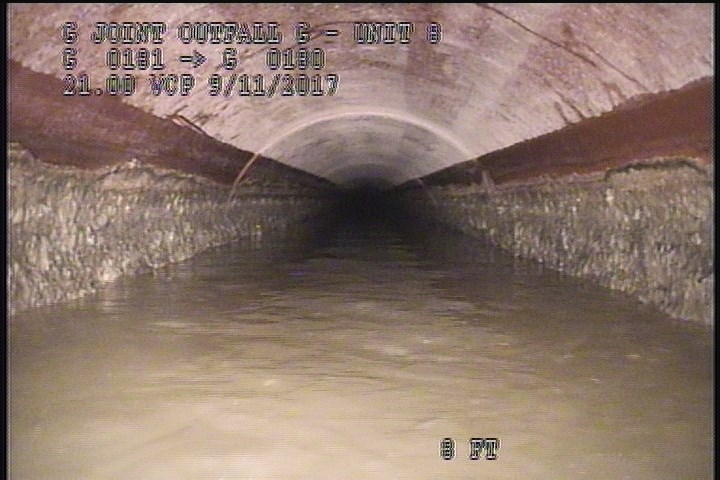

  • General Observation - 21" VCP

    8 ft. - General Observation - 21" VCP

All inspections of P01086Work order #

Observations (10)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
8MGO21" VCP
0MWM—
100DAGS—
0MGOConn. @ Mh, 6 O' Clock. OPEN STOPLOG IN PLACE
100.2AMH6:25AM
0AMH6:10AM
0MWL—
93.3FCHAIRLINE
2DAGS—

Properties (4)

custom_field_three
1 HAIRLINE FRACTURE
custom_field_two
4
customer
LACSD
datetime
2017-09-11T05:04:28-07:00
