Wastewater/Activity/PacpInspection/1.0Sep 9, 2017, 09:26 AM
C 0071_C 0070_992017_040600.mp4
- Date
- 09/09/2017
- W/O
- 0657839
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00120
- PipeID
- P09543
- Time
- 2:26 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0635
- Sewer Name
- C JOINT OUTFALL C - UNIT 3A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- 20170909MDM_JOINT_OUTFALL_C_UNIT_3A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- C 0071
- Downstream MH
- C 0070
- Dir. of Survey
- Downstream
- Length Surveyed
- 23.8 ft.
- Total Length
- 23.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (6)

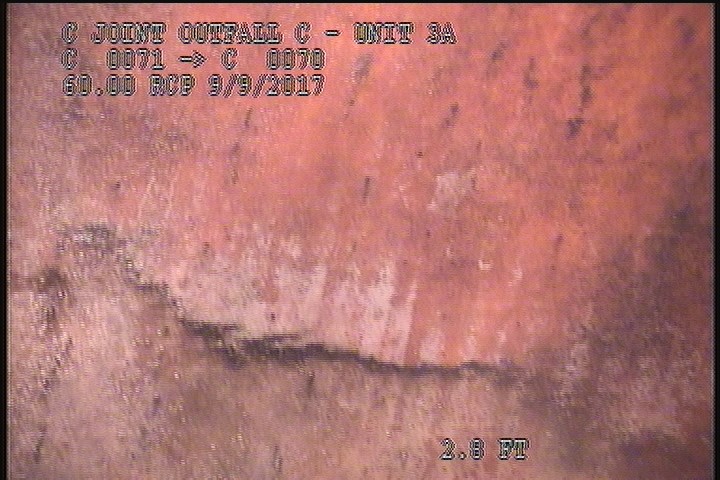

2.8 ft. - Lining Failure Other, from 09 to 11 o'clock, within 8 inches of joint: NO, Start - PEELING

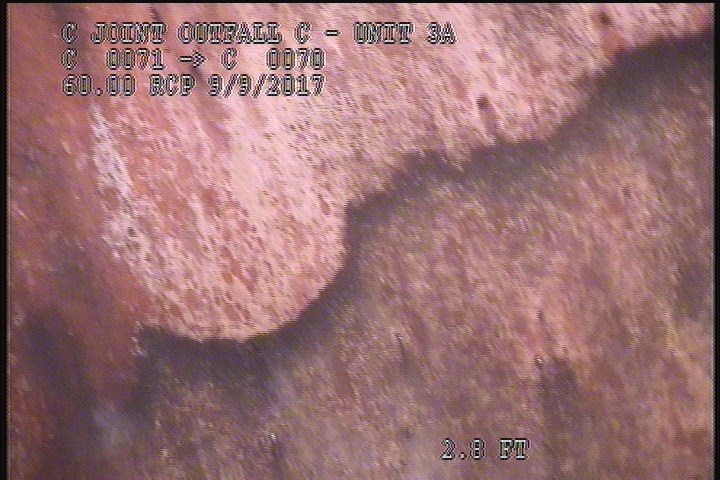

2.8 ft. - Lining Failure Other, from 01 to 03 o'clock, within 8 inches of joint: NO - PEELING

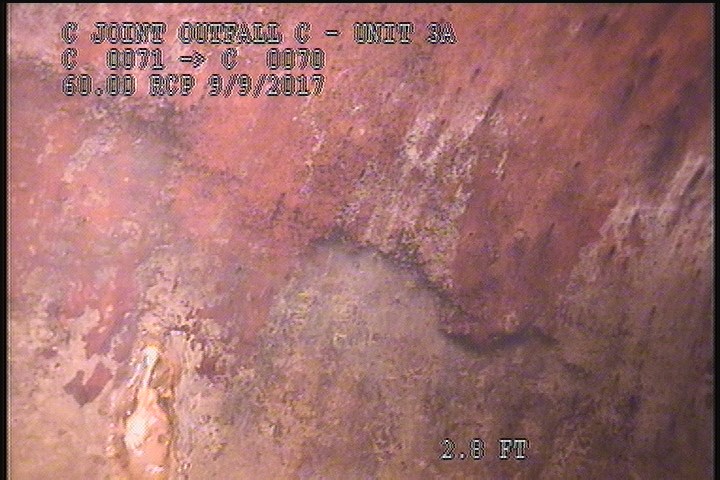

2.8 ft. - Lining Failure Other, from 09 to 11 o'clock, within 8 inches of joint: NO - PEELING

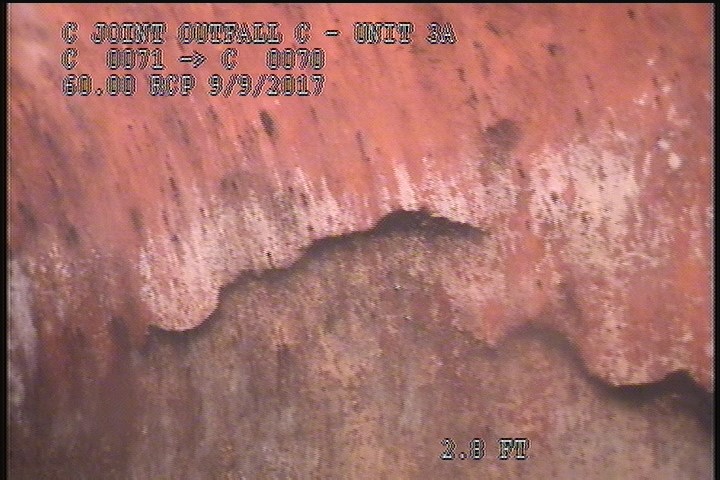

2.8 ft. - Lining Failure Other, from 01 to 03 o'clock, within 8 inches of joint: NO, Start - PEELING

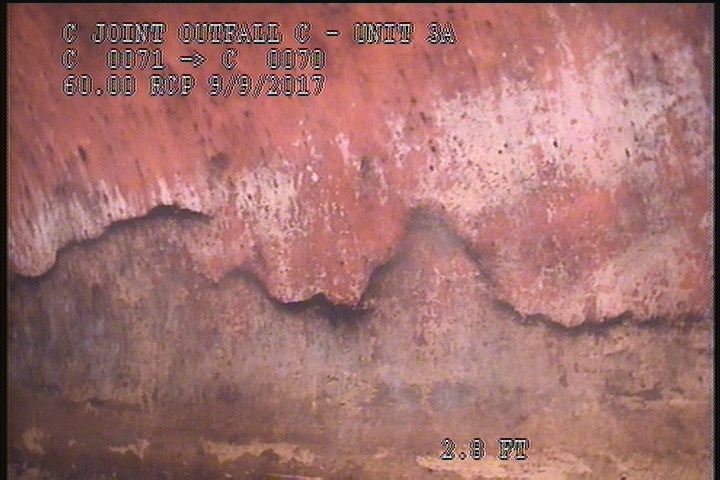

2.8 ft. - General Photograph

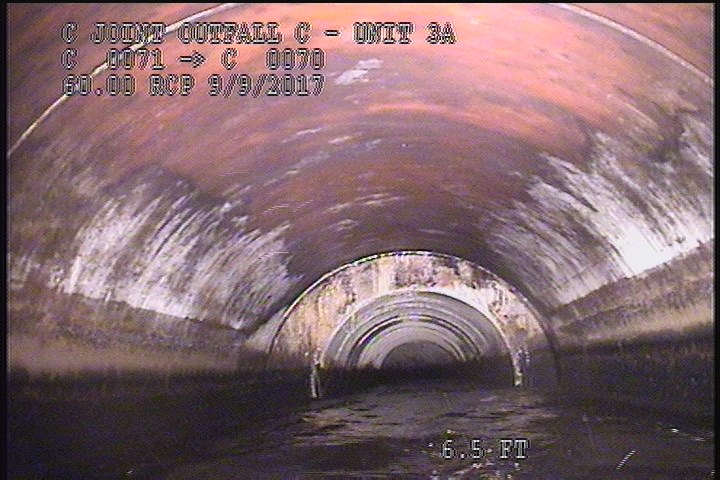

6.5 ft. - General Observation - 60" RCP-FR-POLY-LINER
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2.8 | LFZ | PEELING |
| 23.3 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 6.5 | LFZ | PEELING |
| 2.8 | LFZ | PEELING |
| 23.8 | AMH | 4:20AM |
| 0 | AMH | 4:10AM |
| 0 | MWL | — |
| 6.5 | LFZ | PEELING |
| 2.8 | LFZ | PEELING |
| 0.1 | MWM | — |
| 2.8 | LFZ | PEELING |
| 6.5 | MGO | 60" RCP-FR-POLY-LINER |
| 2.8 | MGP | — |
Properties (4)
- custom_field_three
- PEELING LINER
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-09T02:26:23-07:00
