Wastewater/Activity/PacpInspection/1.0Jun 24, 2016, 07:27 AM
18 0919_18 0918_062416_002821.mpg
- Date
- 06/24/2016
- W/O
- 574406
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00709
- PipeID
- P14771
- Time
- 12:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3405
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_574406_TV18102_JUNE2016
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 18 0919
- Downstream MH
- 18 0918
- Dir. of Survey
- Downstream
- Length Surveyed
- 15.5 ft.
- Total Length
- 15.5 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

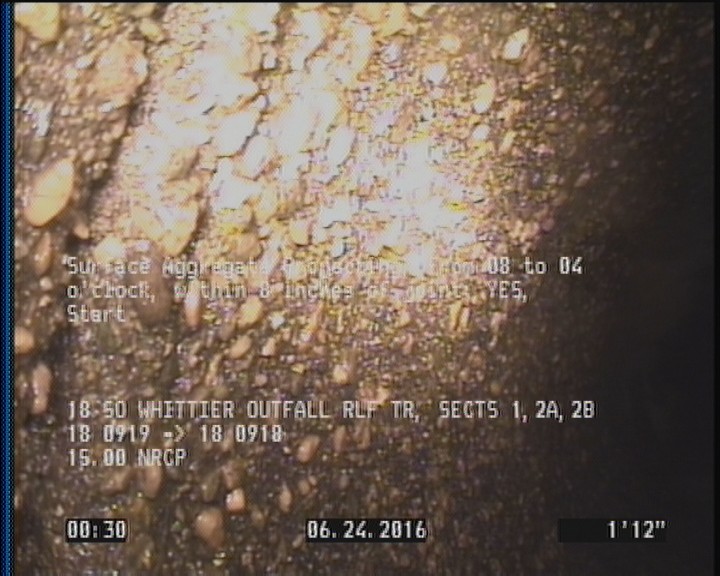

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

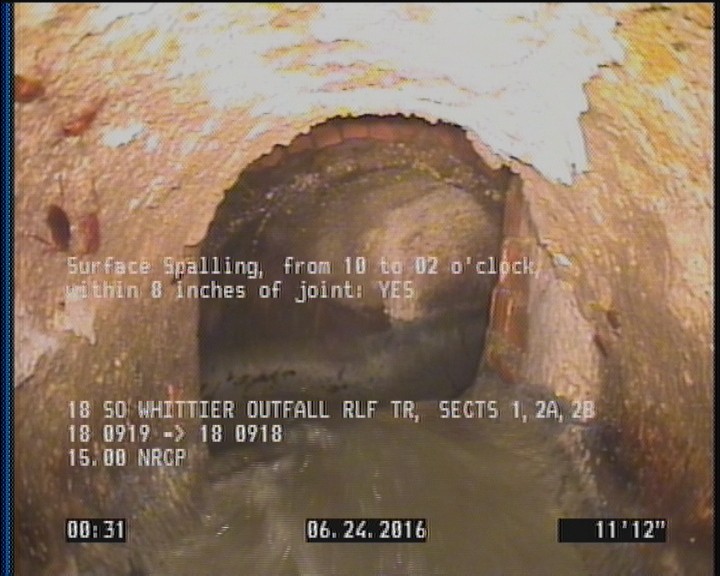

12 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0919 |
| 0 | MWM | — |
| 13.9 | SAP | — |
| 12 | SSS | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 15.5 | AMH | 18 0918 |
Properties (5)
- additional_info
- SC305855
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-24T00:27:55-07:00
- sewer_category
- GRAVITY
