Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 29, 2016, 08:34 AM

  • 18 0750A_18 0750_20160429_014607.mpg

Date
04/29/2016
W/O
568699
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00706
PipeID
P14604
Time
1:34 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3357
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
26
Purpose
Routine Assessment
Project
RFIR_WO_568699_TV18103_MAY2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
18 0750A
Downstream MH
18 0750
Dir. of Survey
Downstream
Length Surveyed
203.1 ft.
Total Length
203.1 ft.
Structural Index
4
Structural Quick
5133
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0750A to 18 0750
MH: 18 0750AMH: 18 0750downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 0750A0 ft. MWL - Water Level, 15 %of cross sectional area2.4 ft. MGO - General Observation - MAG COAT 30%133.2 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES152.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start152.9 ft. SRP - Surface Reinforcement Projecting, from 07 to 09 o'clock, within 8 inches of joint: NO196.6 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO202.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish203.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0750

Observation photos (5)

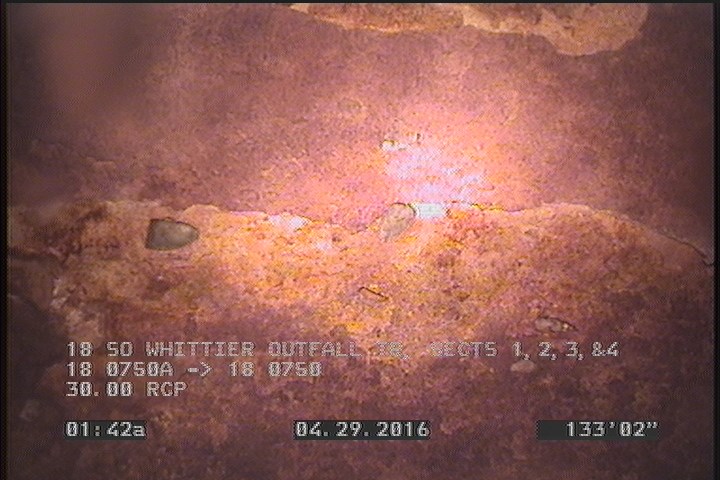

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

    133.2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

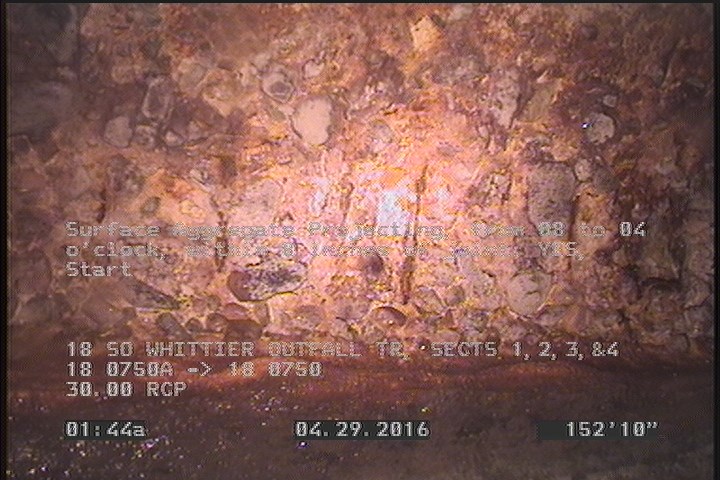

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    152.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

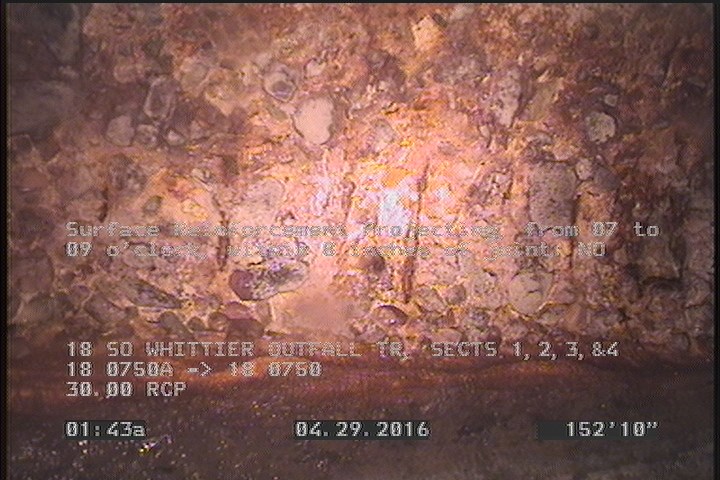

  • Surface Reinforcement Projecting, from 07 to 09 o'clock, within 8 inches of joint: NO

    152.9 ft. - Surface Reinforcement Projecting, from 07 to 09 o'clock, within 8 inches of joint: NO

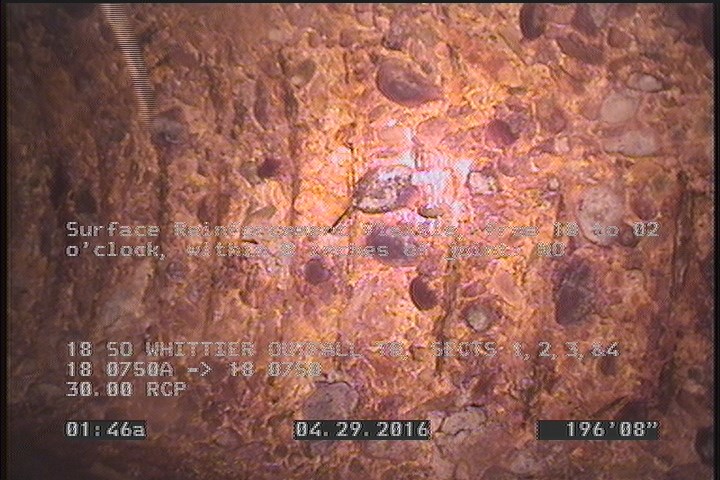

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

    196.6 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

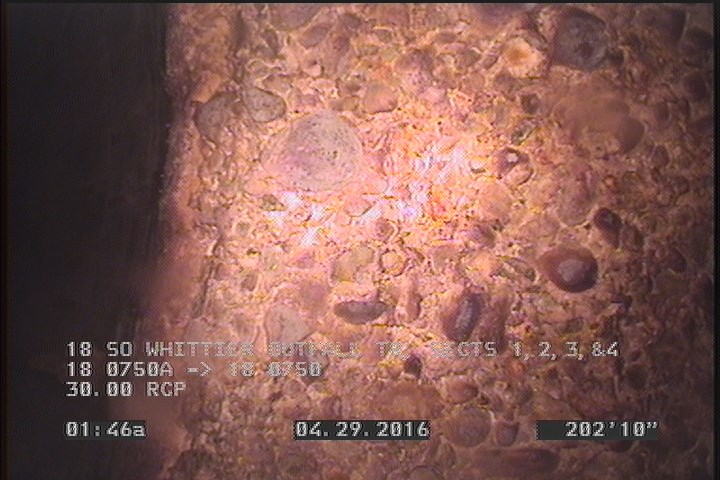

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    202.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P14604Work order 568699

Observations (10)

DistanceCodeObservation
202.2SAP—
0MWM—
152.9SAP—
2.4MGOMAG COAT 30%
0AMH18 0750A
196.6SRV—
152.9SRP—
0MWL—
133.2SAV—
203.1AMH18 0750

Properties (5)

additional_info
SC300353
custom_field_two
2
customer
LACSD
datetime
2016-04-29T01:34:51-07:00
sewer_category
GRAVITY
